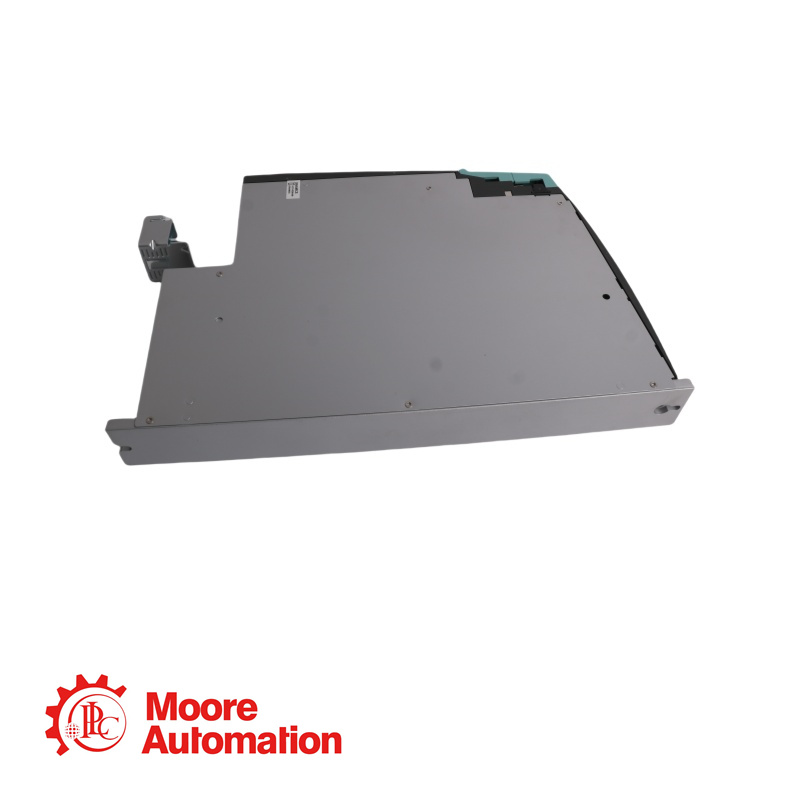

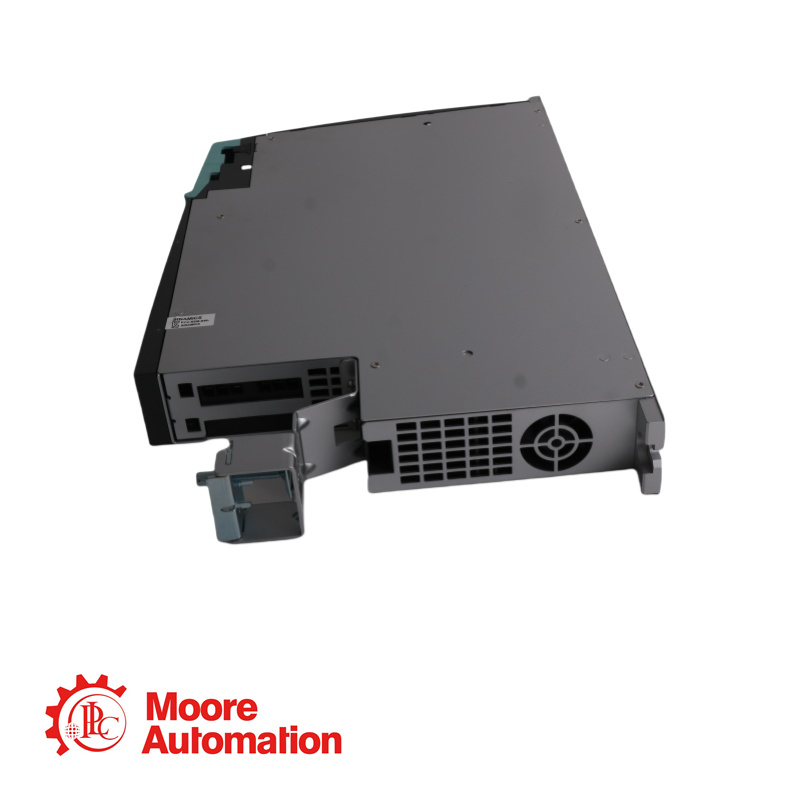

SIEMENS 6SL3120-1TE21-0AD0 SINAMICS S120 SINGLE MOTOR MODULE

Contact Way:

About Product Describtion:

DRIVE-CLIQ CABLE Motor Module SINAMICS Single Motor Module in booksize compact design for the SINAMICS S120 drive system. In standard form, the Single Motor Modules in booksize compact format have two DC link connections, one electronic power supply connection, and three DRIVE-CLiQ sockets. The module receives its control information via DRIVE-CLiQ from the CU320-2 Control Unit. The Single Motor Module covers the three-phase voltage range from 380 V up to 480 V 3AC and contains an internal air cooler as well as Safety Integrated Level 2 according to IEC 61508. For the DRIVE-CLiQ port, a dust protection sealing plug is available. A terminal adapter, a jumper bridge and a DC link adapter are additionally available for modules in booksize format. SINAMICS – the seamless drive family for every application area.

About Product detials:

DC link voltage:DC 510...720V

Electronics power supply:DC 24V-15 %1+20 %

Current demand, max:0.75 A

DC-link currentI:11.0A

Rated value:9.0A

Base load current :7.7 A

For s6 duty (40%):12.0 A

Version:connector (X1)

Conductor cross-section:2..6 mm2(16...10 AWG)

PE connection:M5 screw
