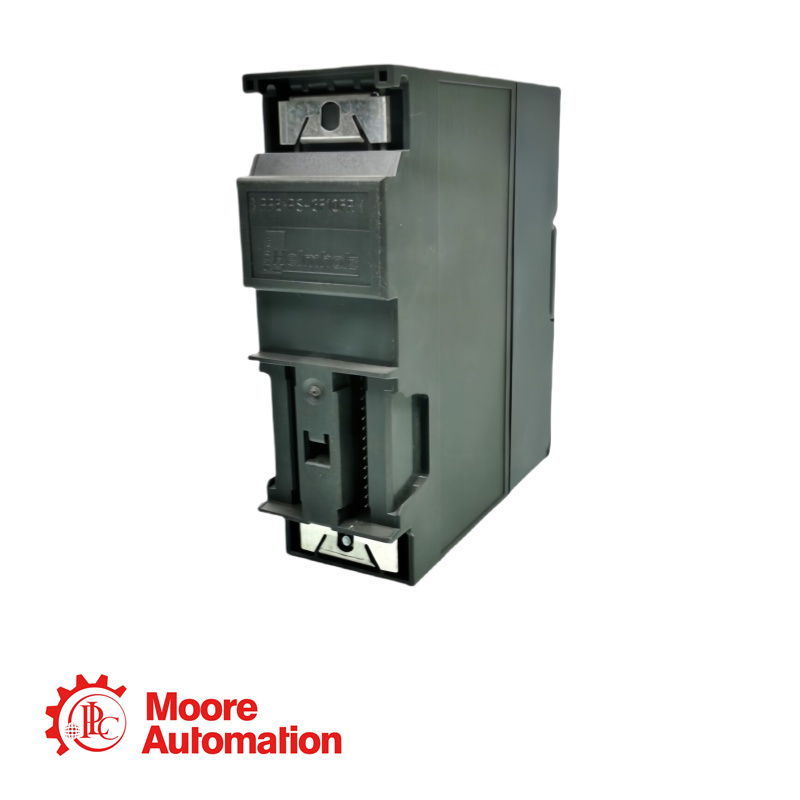

HELMHOLZ 700-600-CAN12 CAN 300 PRO COMMUNICATION MODULE

Contact Way:

About Product Describtion:

The Helmholz GmbH CAN 300 PRO module can be plugged into either the central frame or the expansion frame and it supports CAN 2.0 A (11 bit) and CAN 2.0 B (29 bit)frames with a freely selectable transfer rate from 10 kbps to 1 Mbps also the CAN 300 PRO can send and receive CAN telegrams in layer 2 mode.

The CAN 300 PRO module contains 16 freely settable timers. Each timer can trigger a freely programmable CAN telegram. That way, it is easy to implement the synchronous protocols in common use in drive and servo systems using the CAN 300 PRO module.

About Product detials:

Type:ISO/DIN 11898-2 CAN High-speed physical layer

Transmission rate:10 kbps ... 1 Mbps

Protocol:CAN 2.0A (11 bit)/CAN 2.0B (29 bit) Layer 2 CANopen® Master/CANopen® slave SAE J1939

Connection:Connector, SUB-D, 9-pin

Current draw typical:160 mA

Current draw maximal:190 mA

Ambient temperature:-25 °C … +60°C

Transport and storage temperature:-25 °C … +75 °C

Pollution degree:2

Protection rating:IP20
