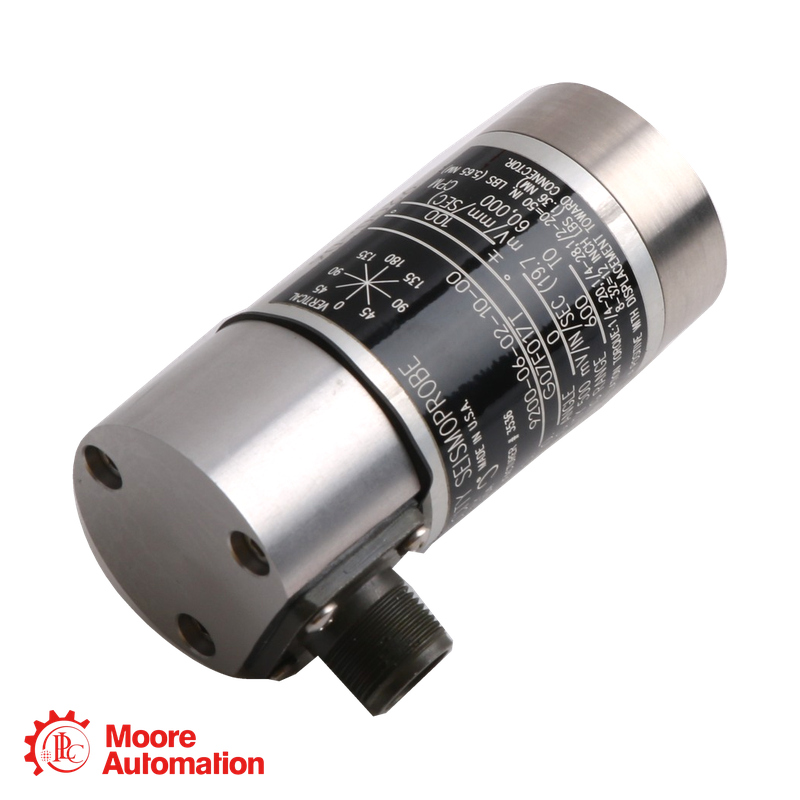

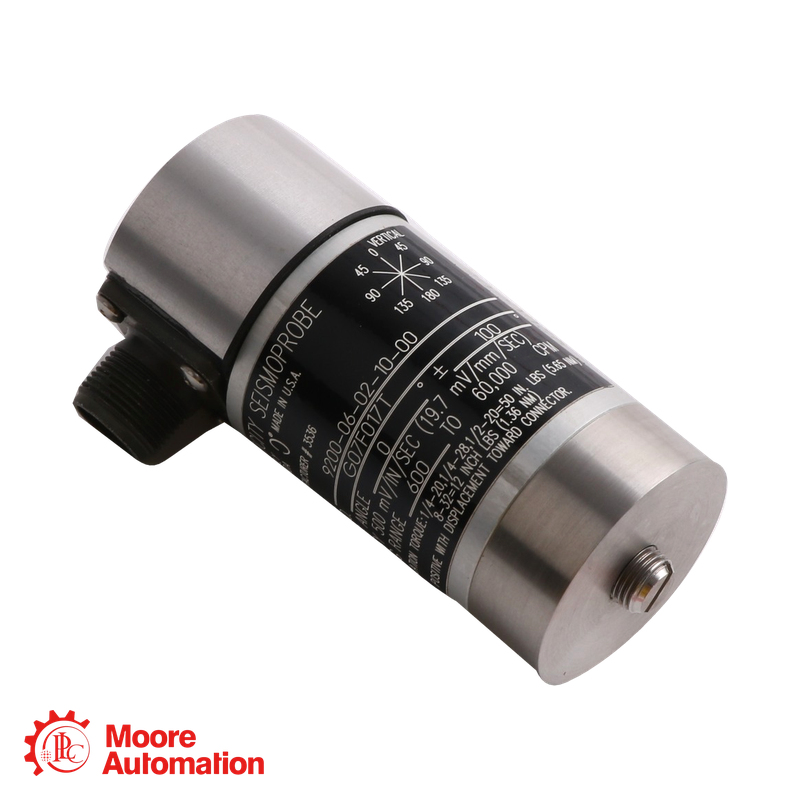

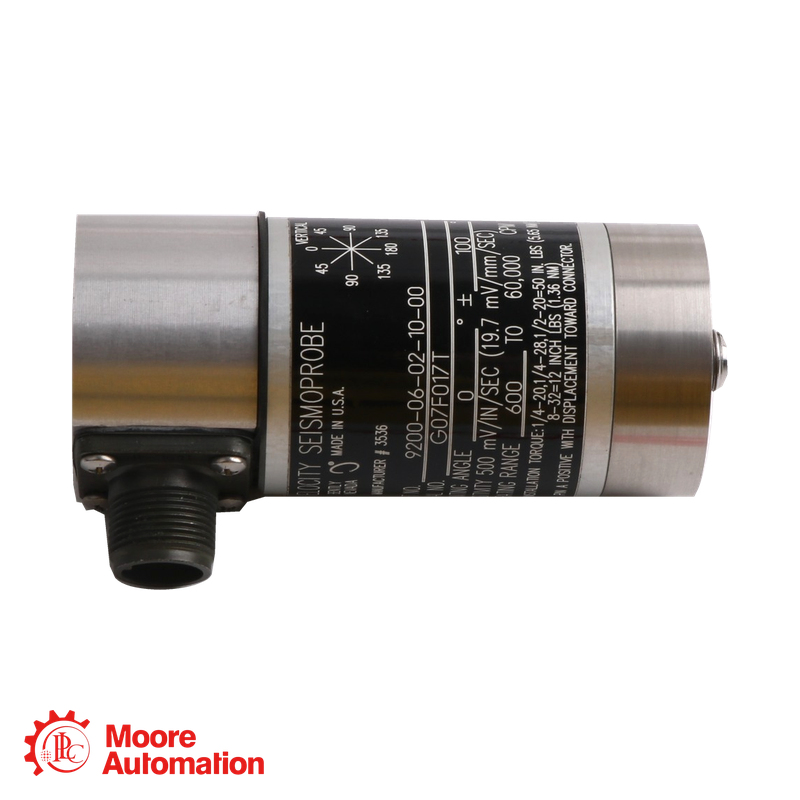

The Bently Nevada 9200-06-02-05-00 is a two-wire moving-coil Seismoprobe Velocity Transducer for absolute bearing-housing, casing, and structural vibration measurement
Marca :
Bently NevadaNúmero de parte :
9200-06-02-05-00Peso :
1.5 kgDimensión :
9.2 × 4.0 × 4.0 cmPaís de origen :
USACódigo hs :
8537101190Descripción :
Seismoprobe Velocity Transducer
|
Product Enquiry |
Contact Details |
|
Model Number |
9200-06-02-05-00 |
|
Sales Contact |
Frida |
|
Fast Contact |
|
|
Email Request |
|
|
Please Provide |
Required quantity and destination country |
Product Overview
The Bently Nevada 9200-06-02-05-00 is a two-wire moving-coil Seismoprobe Velocity Transducer for absolute bearing-housing, casing, and structural vibration measurement. This configuration provides a 10 Hz minimum operating frequency, a side-mounted connector without an integral cable, and a no-base 1/2-20 UNF-3A stud arrangement. Its output voltage is directly proportional to vibration velocity.
Model Number Breakdown
Official ordering format: 9200-AA-BB-CC-DD
9200: Bently Nevada two-wire Seismoprobe Velocity Transducer.
AA – 06: 0° ±100° mounting orientation with a 10 Hz (600 cpm) minimum operating frequency.
BB – 02: Side-mounted connector; no integral cable.
CC – 05: No mounting base; 1/2-20 UNF-3A stud.
DD – 00: No agency approvals.
Technical Information
Manufacturer
Bently Nevada
Product Type
Two-wire moving-coil Seismoprobe Velocity Transducer
Mounting Orientation
0° ±100°
Minimum Operating Frequency
10 Hz (600 cpm)
Connector / Cable Option
Side-mounted connector; no integral cable
Mounting Arrangement
No base; 1/2-20 UNF-3A stud
Sensitivity
20 mV/mm/s (500 mV/in/s), ±5%
Frequency Response
10 to 1,000 Hz; +0, -3 dB typical
Dynamic Operating Range
2.54 mm (0.100 in) peak-to-peak maximum displacement
Velocity Range
25 mm/s (1 in/s) at 100 Hz with a 10 kΩ load
Coil Resistance
1.25 kΩ ±5%
Operating and Storage Temperature
-29°C to +121°C (-20°F to +250°F)
Relative Humidity
Up to 95%, non-condensing
Industries Served
• Power generation facilities
• Oil and gas processing plants
• Chemical and petrochemical operations
• Pulp and paper production lines
• Water and wastewater facilities
• General industrial manufacturing
Application Areas
-Continuous casing-vibration monitoring on rotating machinery
-Periodic vibration checks with diagnostic instruments
-Bearing-housing vibration measurement
-Machine-structure vibration measurement
-Portable vibration measurement applications
Key Highlights
Key Highlight
Details
Absolute Vibration Measurement
Measures bearing-housing, casing, and structural vibration relative to free space.
Direct Velocity Output
Produces an output voltage directly proportional to vibration velocity.
10 Hz Configuration
The 06 option provides a 10 Hz minimum operating frequency.
Side-Mounted Connector
The 02 option uses a side-mounted connector without an integral cable.
Stud-Mount Arrangement
The 05 option uses a no-base 1/2-20 UNF-3A stud.
No External Power Required
The moving-coil design supports portable measurement applications.
Frequently Asked Questions
1. What does the Bently Nevada 9200-06-02-05-00 measure?
It measures absolute bearing-housing, casing, and structural vibration and generates a velocity-proportional output signal.
2. What is the minimum operating frequency of this configuration?
The 06 option provides a 10 Hz, or 600 cpm, minimum operating frequency.
3. Does this model include an integral cable?
No. The 02 connector option specifies a side-mounted connector without an integral cable.
4. What mounting arrangement does the 05 option provide?
The 05 option provides no mounting base and uses a 1/2-20 UNF-3A stud.
