3300 SYSTEM · INTERNAL SAFETY BARRIER

88149-01

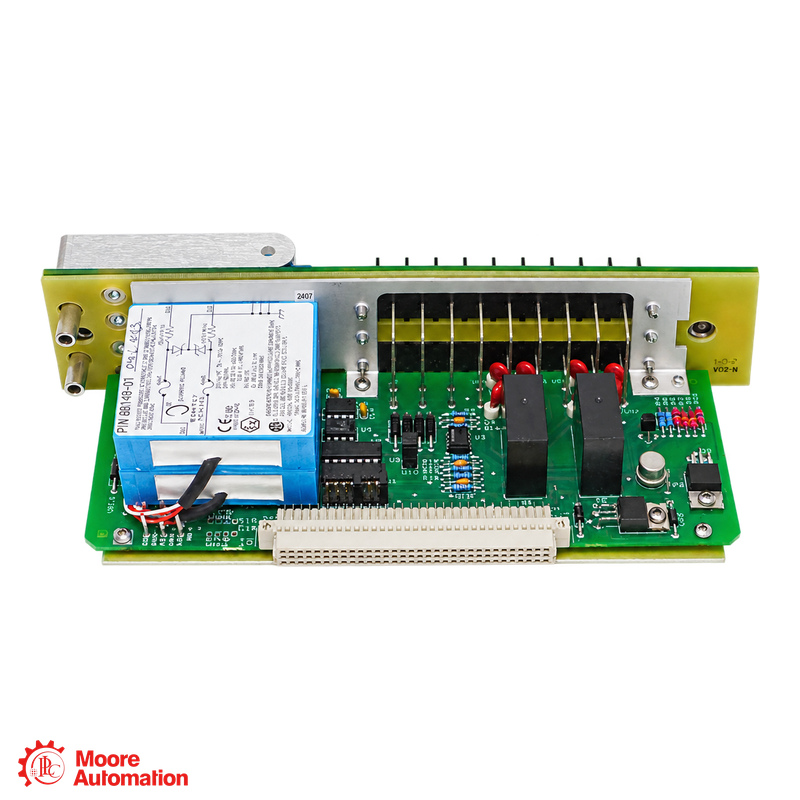

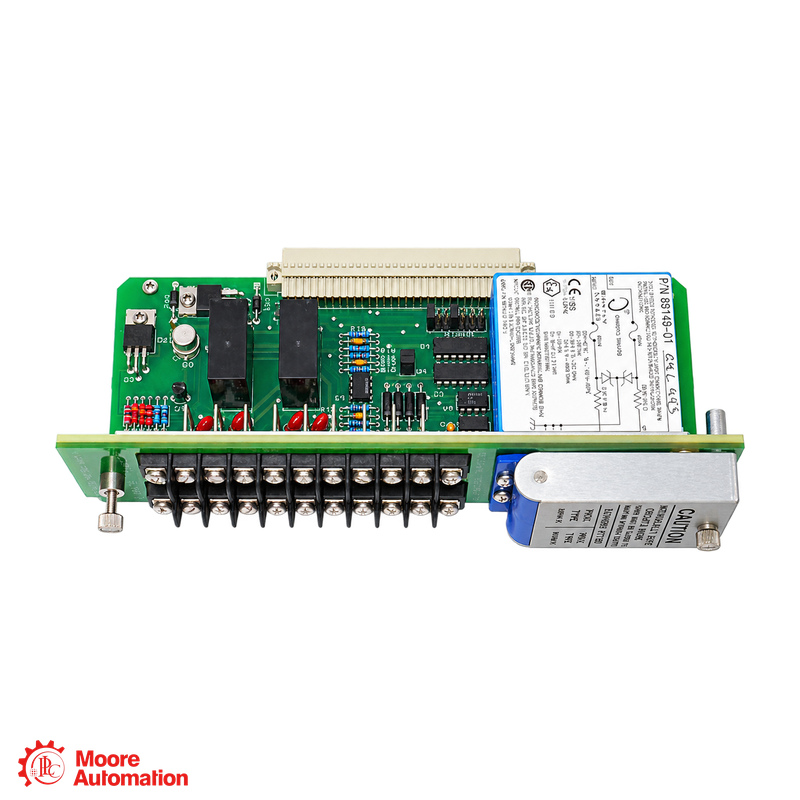

88149-01 — a Bently Nevada two-channel internal zener barrier for approved transducer circuits in the 3300 Monitoring System.

PRODUCTSafety barrier
CHANNELSTwo channels
SYSTEM3300 rack
ROLEIntrinsic safety
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 INTERNAL SAFETY BARRIER
3300 MONITORING SYSTEM

88149-01

Two-channel internal zener barrier

3300 Internal Safety Barrier

INTERNAL BARRIER FUNCTION
88149-01 — A Bently Nevada 3300 internal zener barrier that provides intrinsically safe connections for specified transducer circuits in hazardous areas.
MODEL IDENTITY
Bently Nevada identifies 88149-01 as a 3300 internal barrier in installation manual 88837-01; the applicable wiring diagram is 88839.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3300 INTERNAL ZENER BARRIER

Engineering data at a glance

Click “+” to expand more specifications.

PRODUCTZener barrier
CHANNELSTwo channels
SYSTEM3300 rack
FUNCTIONIntrinsic safety
Internal zener barrier for specified 3300 transducer circuits.
Barrier integrationThe barrier is built into the 3300 monitor rack and inserted in the transducer lines.
General Information −
BrandBently Nevada
Part number88149-01
Product typeInternal Safety Barrier
Monitoring system3300 Monitoring System
Barrier channelsTwo channels
Barrier technologyZener barrier assembly
Installation locationInside 3300 monitor rack
Field connectionSpecified hazardous-area transducer circuits
Transducer common pathBarrier earth busbar to system common via backplane
Barrier wiring diagram88839 for 88149-01
Source: Bently Nevada 3300 Internal Barriers Installation Manual 88837-01 (Rev G, February 1997).
FAQ

Questions Buyers Ask Most

Which 3300 installation uses 88149-01?＋

88149-01 is intended for the 3300 Monitoring System's built-in barrier arrangement, where specified hazardous-area transducer wiring reaches the monitor through the internal barrier.

Which control drawing applies to 88149-01 wiring?＋

88149-01 is listed with wiring diagram 88839 in Bently Nevada manual 88837-01. For CSA-approved systems the manual cites control drawing CA22000; use the current drawing for the applicable approval and transducer.

How is the transducer common handled with 88149-01?＋

88149-01 uses the 3300 internal-barrier grounding arrangement: isolated transducer commons are tied to the barrier earth busbar at the top of the rack and return to system common through the backplane. Follow the applicable control drawing.

Can 88149-01 replace another 3300 barrier?＋

88149-01 should be matched to the installed barrier part number, approved transducer and applicable control drawing. The manufacturer lists distinct diagrams for 88149-01, 88157-01 and 88194-01; interchangeability is not established.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 88149-01 part number, installed 3300 rack configuration, transducer type, applicable approval and quantity with Frida.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
88149-01

Bently Nevada installation manual 88837-01 identifies 88149-01 as a 3300 internal barrier. No manufacturer-hosted exact-model PDF has been confirmed for direct download.

Official datasheet status

No current official 88149-01 product datasheet was located in the manufacturer's public documentation. For product documentation and compatibility details, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Product identity and system role are supported by the original Bently Nevada 3300 Internal Barriers Installation Manual 88837-01. Confirm the current control drawing before use.
