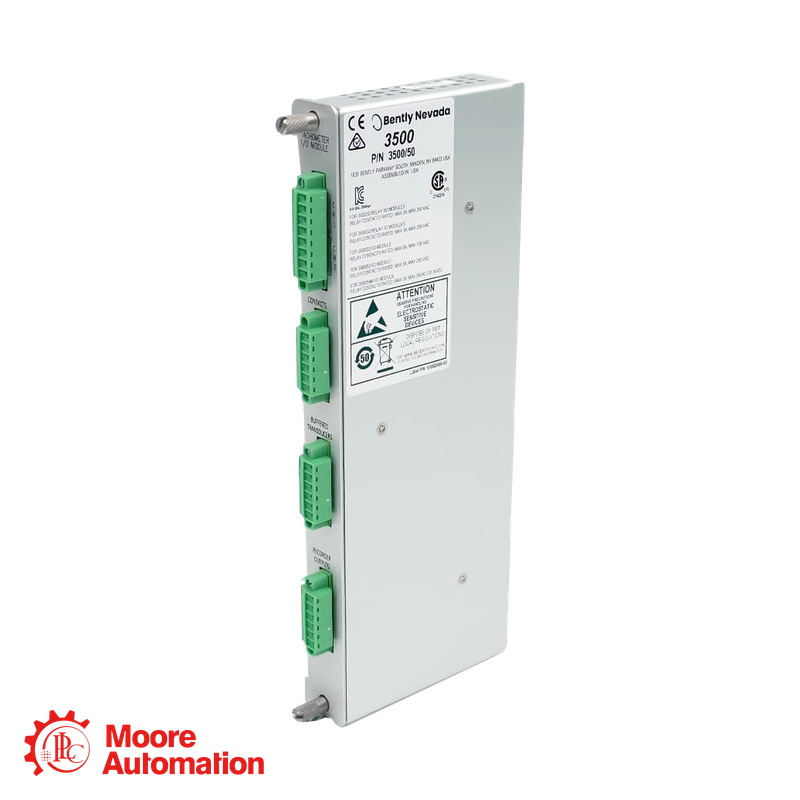

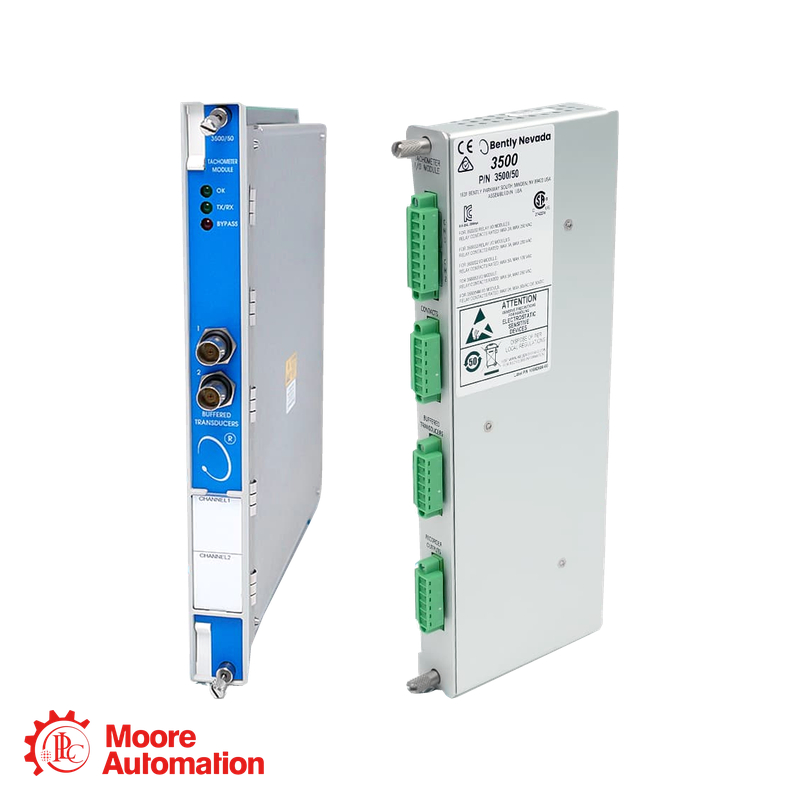

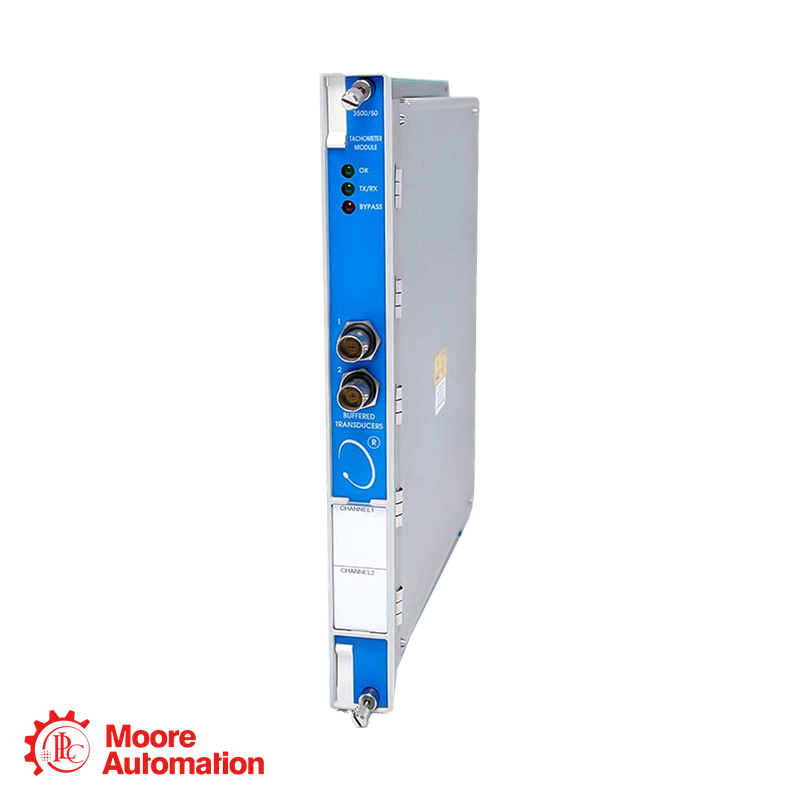

Bently Nevada 3500/50-01-00 Tachometer Module
Bently Nevada 3500/50-01-00 Tachometer Module
Bently Nevada 3500/50-01-00 Tachometer Module

Bently Nevada 3500/50-01-00 Tachometer Module

3500 SERIES · TACHOMETER MODULE

3500/50-01-00

3500/50-01-00 — A two-channel Bently Nevada 3500/50M Tachometer Module ordered as 3500/50-01-00 with internal-termination I/O option 01 and no hazardous-area approval option.

CHANNELS2
I/O MODULEINTERNAL TERMINATIONS
POWER5.8 W TYPICAL
APPROVALNONE
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3500/50M TACHOMETER MODULE
3500/50M TACHOMETER MODULE

3500/50-01-00

Two channels · Internal-termination I/O · 5.8 W typical · No hazardous-area approval

3500/50M Tachometer Module

MACHINERY PROTECTION MONITORING
3500/50-01-00 — This two-channel tachometer accepts proximity probe transducers or magnetic pickups for shaft speed, acceleration and rotation-direction measurements.
CONFIGURATION NOTE
3500/50 identifies the Tachometer Module order code; 01 specifies the I/O module with internal terminations, and 00 specifies no hazardous-area approval.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

3500/50
Base modelFour-channel Tachometer Module
01
I/O moduleI/O module · Internal terminations
00
Approval optionNo hazardous-area approval
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3500/50M TACHOMETER MODULE

Engineering data at a glance

Click “+” to expand more specifications.

HEIGHT241.3 MM
WIDTH24.4 MM
DEPTH241.8 MM
WEIGHT0.82 KG
Values from the manufacturer datasheet.
Configuration check Confirm the complete order code, I/O termination option, approval requirement, connected transducer type and rack configuration before ordering.
General Information −
BrandBently Nevada
Part number3500/50-01-00
Product typeTachometer Module
Product family3500 Machinery Protection System
ChannelsTwo
Power consumption5.8 W typical
I/O Configuration ＋
I/O option01 · Tachometer I/O module
I/O part numberInternal-termination I/O
TerminationsInternal terminations
Transducer supportProximity probe transducers or magnetic pickups
Environmental and Physical ＋
Operating temperature−30°C to +65°C
Storage temperature−40°C to +85°C
Humidity95%, noncondensing
Rack space1 full-height front slot + 1 full-height rear slot
Monitoring Functions ＋
Accepted signalsOne or two proximity-probe or magnetic-pickup signals
Channel programmingSpeed, zero-speed, acceleration or reverse-rotation configurations
Supported measurementsRotor speed, speed band, zero speed, rotor acceleration and reverse rotation
FAQ

Questions Buyers Ask Most

What is 3500/50-01-00 used for?＋

3500/50-01-00 is a two-channel Tachometer Module used in the Bently Nevada 3500 Machinery Protection System. This two-channel tachometer accepts proximity probe transducers or magnetic pickups for shaft speed, acceleration and rotation-direction measurements.

What input configuration does 3500/50-01-00 use?＋

3500/50-01-00 uses 01 · Tachometer I/O module. Internal terminations.

Which measurements does 3500/50-01-00 support?＋

3500/50-01-00 supports Rotor speed, speed band, zero speed, rotor acceleration and reverse rotation.

What rack space does 3500/50-01-00 require?＋

3500/50-01-00 uses one full-height front rack slot, while its associated I/O module uses one full-height rear slot.

What should I provide for a 3500/50-01-00 quotation?＋

3500/50-01-00 should be quoted against the complete reference, installed rack configuration, connected transducer or signal type, quantity and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 3500/50-01-00 order number, rack configuration and connected transducer details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
3500/50-01-00

Official manufacturer documentation for the Bently Nevada 3500/50M Tachometer Module, its I/O configuration and ordering options.

Bently Nevada Datasheet 141538

Bently Nevada Datasheet 141538 identifies the two-channel 3500/50M Tachometer Module and ordering option 01 as an I/O module with internal terminations; option 00 specifies no hazardous-area approval.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the Bently Nevada 3500/50M Tachometer Module Datasheet, Part Number 141538.

3500 MACHINERY PROTECTION SYSTEM

How 3500/50-01-00 Fits into the 3500 System

Bently Nevada is the manufacturer. 3500/50-01-00 is a two-channel Tachometer Module ordered with internal-termination I/O option 01 and no hazardous-area approval option. It accepts proximity, velocity or acceleration transducer signals for machinery-protection measurements.

Bently Nevada · BRAND
Bently Nevada 3500 SystemPRODUCT FAMILY · MACHINERY PROTECTION
SIGNAL INPUT

Speed Inputs

Accepts one or two proximity-probe or magnetic-pickup transducer signals.

I/O CONFIGURATION

Internal Terminations

Option 01 specifies a Tachometer I/O module with internal terminations.

RACK POSITION

Front + Rear Slots

The monitor uses one full-height front slot and its I/O module one full-height rear slot.

System relationship: the 3500/50M monitor conditions transducer signals and compares them with user-programmable alarms in the 3500 machinery-protection rack.
APPLICATION AREAS

Functions and integration points for 3500/50-01-00

Rotor SpeedMeasures shaft rotational speed from proximity probes or magnetic pickups.
Zero SpeedProvides zero-speed notification when configured with a suitable transducer.
APPLICATION CENTER 3500/50-01-00 Two-channel Tachometer Module
Rotor AccelerationSupports rotor-acceleration measurement and alarming.
Reverse RotationSupports reverse-rotation notification with a suitable proximity transducer.
