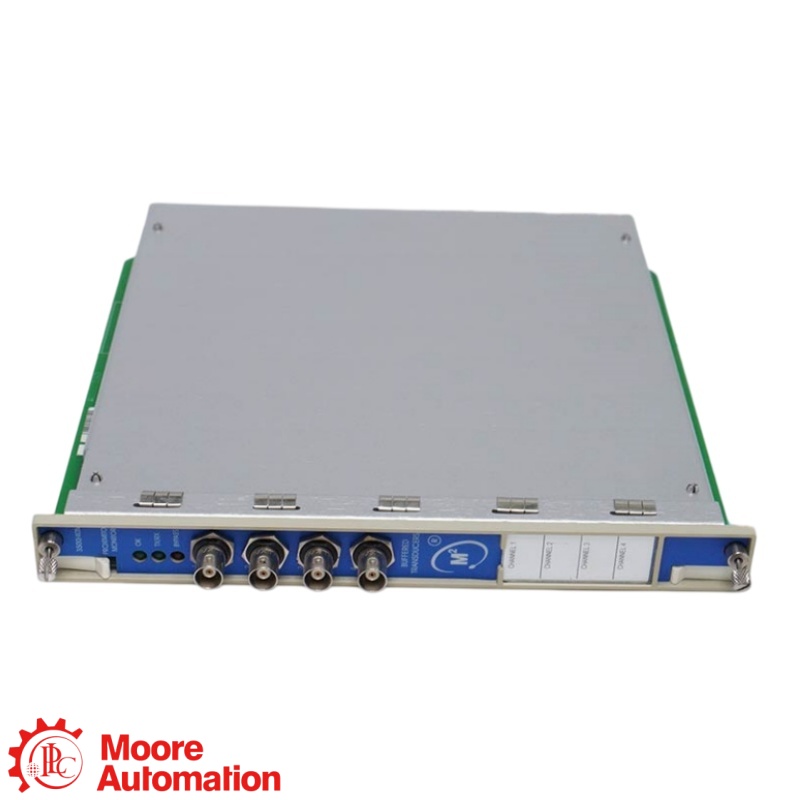

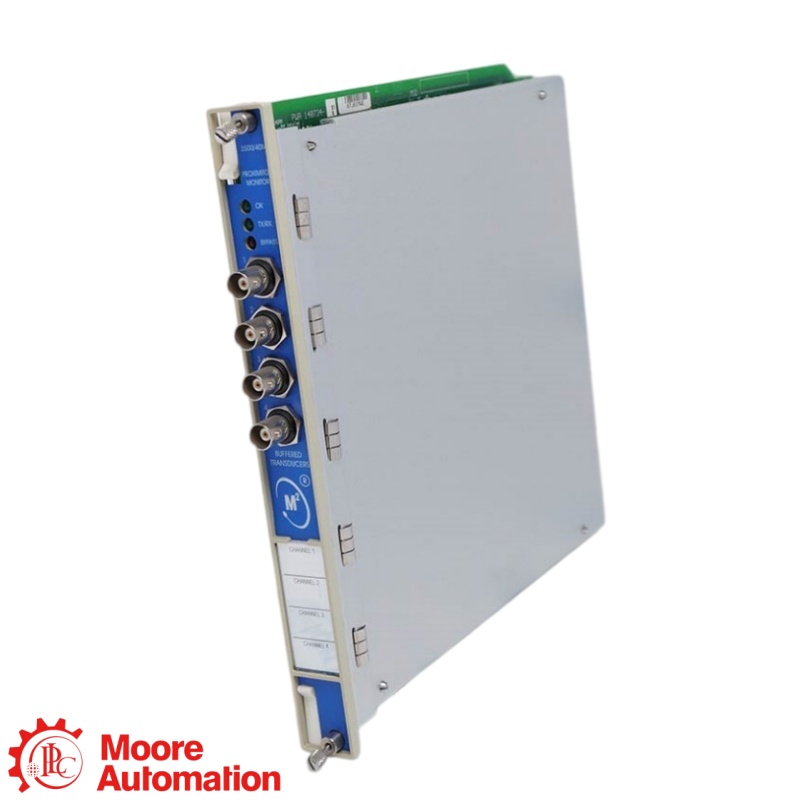

Bently Nevada 3500/40M 140734-01 Proximitor Monitor
Bently Nevada 3500/40M 140734-01 Proximitor Monitor
Bently Nevada 3500/40M 140734-01 Proximitor Monitor

Bently Nevada 3500/40M 140734-01 Proximitor Monitor

BENTLY NEVADA · 3500/40M PROXIMITOR MONITOR

3500/40M 140734-01

The 3500/40M 140734-01 is a four-channel Bently Nevada 3500/40M Proximitor Monitor for radial vibration, thrust position, eccentricity, differential expansion or REBAM measurements. Confirm the exact 140734-01 hardware revision, I/O module and installed rack configuration before replacement.

CHANNELS4
FUNCTIONSUp to 2
POWER7.7 W typical
MAIN BOARD0.91 kg
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3500/40M PROXIMITOR MONITOR
3500 MACHINERY PROTECTION SYSTEM

3500/40M 140734-01

FAMILY MODEL 3500/40M

EXACT PART NUMBER VERIFICATION REQUIRED

MODULE ROLE
3500/40M 140734-01 is a four-channel Proximitor Monitor in the Bently Nevada 3500 Machinery Protection System. It accepts one to four proximity-transducer signals, conditions them for configured machinery measurements and compares each monitored parameter with alarm setpoints.
CONFIGURATION NOTE
For 3500/40M 140734-01, confirm the complete module nameplate, hardware revision, paired channel functions, I/O termination module, transducer sensitivity, rack power and 3500 configuration before replacement. The current public family datasheet identifies the 3500/40M monitor family but does not list 140734-01 in its current spare-parts table.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 3500/40M 140734-01 reference should be verified

3500/40M
Monitor family3500/40M four-channel Proximitor Monitor
140734
Hardware referenceMatch the installed module label
01
Revision suffixVerify revision and compatibility
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

3500/40M Family Datasheet 141535 ↗
3500/40M · PROXIMITOR MONITOR

Engineering data at a glance

Verify the exact 140734-01 module configuration before replacement.

CHANNELS4
INPUT IMPEDANCE10 kΩ
POWER7.7 W typical
MAIN BOARD0.91 kg
Baker Hughes 3500/40M Proximitor Monitor Datasheet 141535 Rev. R (family reference).
General Information ＋
BrandBently Nevada
Complete supplied reference3500/40M 140734-01
Product typeFour-channel Proximitor Monitor
Product family3500 Machinery Protection System
ManufacturerBently Nevada / Baker Hughes
INPUT AND MONITORING ＋
Signal inputsOne to four Bently Nevada proximity transducers
Channel pairingChannels 1–2 and 3–4; up to two measurement functions
Supported measurementsRadial vibration, thrust position, eccentricity, differential expansion or REBAM
ELECTRICAL & PHYSICAL DATA ＋
Typical power7.7 W
Standard I/O impedance10 kΩ input; -24 Vdc transducer supply
Main board241.3 × 24.4 × 241.8 mm; 0.91 kg
Operating range-30 to +65 °C with internal/external termination I/O
Measurement functionsRadial vibration, thrust, eccentricity, differential expansion or REBAM
DOCUMENTATION & ORDER CHECK ＋
Official family referenceBaker Hughes 3500/40M Proximitor Monitor Datasheet 141535 Rev. R (family reference).
Exact-part checkConfirm the 140734-01 nameplate, hardware revision, I/O module, rack, firmware, transducers and quantity
FAQ

Questions Buyers Ask Most

What does 3500/40M 140734-01 do?＋
3500/40M 140734-01 is supplied as a Bently Nevada 3500/40M four-channel Proximitor Monitor. It conditions one to four proximity-transducer signals for configured machinery measurements and continuously compares those measurements with alarm setpoints; the exact 140734-01 hardware revision and installed I/O must match the 3500 rack.
Which applications and transducers can be used with 3500/40M 140734-01?＋
3500/40M 140734-01 belongs to the 3500/40M family used for radial vibration, thrust position, eccentricity, differential expansion or REBAM monitoring. The configured function, transducer type, sensitivity, scale and alarm setpoints must match the machine protection project before commissioning.
How are the four channels of 3500/40M 140734-01 configured?＋
3500/40M 140734-01 accepts up to four proximity-transducer inputs. The 3500/40M family programs channels in pairs: channels 1–2 share one function and channels 3–4 share another or the same function, so the downloaded rack configuration must be checked before moving field wiring.
What electrical and physical data must be checked for 3500/40M 140734-01?＋
3500/40M 140734-01 should be checked against the family values of 7.7 W typical power, 10 kΩ standard-I/O input impedance, -24 Vdc transducer power and a 241.3 × 24.4 × 241.8 mm, 0.91 kg main board. Confirm the exact module revision and rack power budget.
Which I/O termination must match 3500/40M 140734-01?＋
3500/40M 140734-01 cannot be selected by the monitor name alone. The 3500/40M family supports internal termination, external termination and internal-barrier I/O choices with different approval constraints; verify the rear I/O module, connectors, wiring and hazardous-area requirement.
Can 3500/40M 140734-01 be directly replaced by 176449-01?＋
3500/40M 140734-01 should not be treated as directly interchangeable with 176449-01 only because both references relate to the 3500/40M family. The current family datasheet lists 176449-01 as a spare, while 140734-01 is not in its current public spare table; obtain nameplate, hardware-revision, I/O and rack-configuration evidence before substitution.
What ordering data is required for 3500/40M 140734-01?＋
For 3500/40M 140734-01, provide the complete nameplate reference, hardware revision, front and rear module photos, I/O termination type, rack and firmware details, transducer types and sensitivities, configured channel functions, site approval requirement and quantity.
CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Product Information for 3500/40M 140734-01

Official 3500/40M family information is available, but the exact 140734-01 reference was not located in the current public manufacturer spare-parts table.

Official datasheet status

The current Baker Hughes 3500/40M Proximitor Monitor Datasheet 141535 Rev. R describes the monitor family, but does not list 140734-01 in its current public spare-parts table. Confirm the exact nameplate and hardware revision before ordering or replacement.

VERIFICATION REQUIRED

Contact to Get Support

Send the complete model, quantity, nameplate photos and your technical or purchasing question.

The current Baker Hughes 3500/40M Proximitor Monitor Datasheet 141535 Rev. R describes the monitor family, but does not list 140734-01 in its current public spare-parts table. Confirm the exact nameplate and hardware revision before ordering or replacement.
3500/40M MONITOR SYSTEM RELATIONSHIP

How 3500/40M 140734-01 should be verified in a 3500 system

Bently Nevada is the brand; the 3500 Machinery Protection System is the platform; the 3500/40M is the monitor family; and 140734-01 must match the installed module nameplate and configuration.

Bently Nevada · BRAND
3500 SystemMACHINERY PROTECTION PLATFORM
TRANSDUCER INPUTS

1–4 Proximity Transducers

The monitor accepts up to four proximity-transducer signals for the configured measurement functions.

MONITOR FUNCTION

3500/40M Channel Pairs

Channels 1–2 and 3–4 are configured in pairs for up to two measurement functions at a time.

EXACT PART VERIFICATION

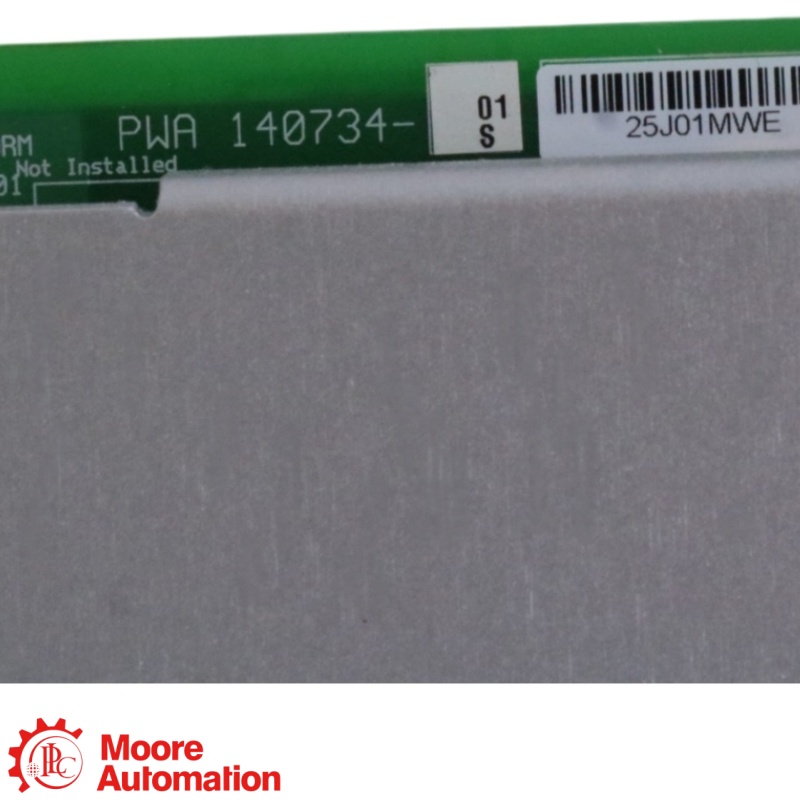

140734-01 Nameplate

Match the part number, hardware revision, rear I/O module, firmware and rack configuration before replacement.

System relationship: the exact monitor revision, I/O termination, transducer sensitivity, rack power, firmware, channel functions and site approvals must all match.
APPLICATION AREAS

Application mind map for the 3500/40M 1–4 Proximity Transducers

Machinery ProtectionContinuous comparison with configured alarm setpoints
Configuration VerificationConfirm rack, firmware, I/O module and channel pairs
APPLICATION CENTER3500/40M 1–4 Proximity TransducersFour-channel signal conditioning
Measurement FunctionsRadial vibration, thrust, eccentricity, differential expansion or REBAM
Part-number VerificationMatch 140734-01 nameplate and installed system evidence
