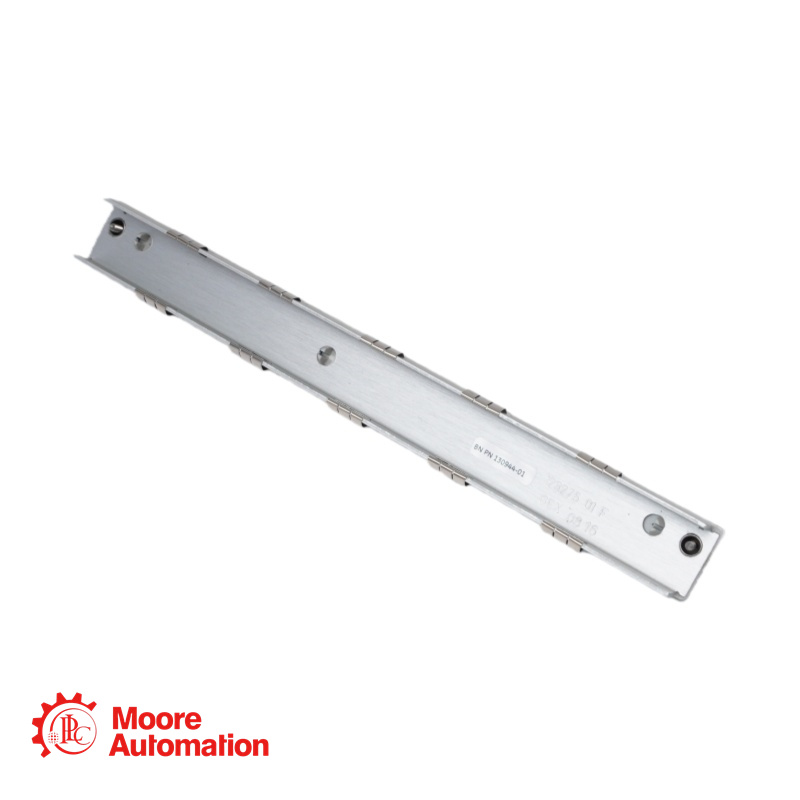

Bently Nevada 3500/04 136719-01 128275-01F Earthing I/O Module
Bently Nevada 3500/04 136719-01 128275-01F Earthing I/O Module
Bently Nevada 3500/04 136719-01 128275-01F Earthing I/O Module

Bently Nevada 3500/04 136719-01 128275-01F Earthing I/O Module


  • Marca :

    Bently Nevada

  • Número de parte :

    3500/04 136719-01 128275-01F

  • Peso :

    0.4kg

  • Dimensión :

    2.4x11x24cm

  • País de origen :

    USA

  • Código hs :

    8537101190

  • Descripción :

    Earthing I/O Module
Pregunte ahora

Sales Manager: Frida

Email:sales5@mooreplc.com

Phone/Whatsapp/Wechat:+86 15359408275




Product Overview

This 3500/04 136719-01 128275-01F is an intrinsically safe interface that is integrally housed within a 3500 monitor's I/O module slot. It replaces a standard I/O module to provide explosion protection (Ex protection) for transducer systems connected directly to the 3500 system in hazardous areas.



Data Sheet

Specific Part Numbers: 3500/04 136719-01 128275-01F
Function: Provides the Intrinsically Safe (IS) earth connection for all Internal Barrier I/O Modules within a 3500 rack via the system backplane.
Form Factor: Occupies one dedicated monitor/rack position. Precludes use of that position for any other 3500 system module.
Rack Impact: Limits a standard 19-inch rack to a maximum of 13 monitor positions when installed.
System Parameters: Um (Maximum input voltage): 250 V; Uo (Maximum open-circuit voltage): 27.45 V; Io (Maximum short-circuit current): 113.24 mA; Po (Maximum power output): 726.96 mW.
Circuit Parameters (Power): Uo: 26.25 V; Rmin (Minimum allowed resistance): 237.6 Ω; Io: 110.48 mA.
Circuit Parameters (Signal): Uo: 13.65 V; Rmin: 4985 Ω; Io: 2.74 mA.
Bandwidth: 30 kHz.
Amplitude Accuracy: 3% at 10 kHz.
Phase Accuracy: -11° at 10 kHz.



Compatibility & Related Parts

Compatible Monitors: The Internal Barrier I/O Modules are specifically designed for use with the following 3500 Series monitors (subject to software/firmware requirements):
3500/25 Keyphasor, 3500/40M Proximitor, 3500/42M Proximitor/Seismic, 3500/44M Aeroderivative (with modifications), 3500/50 Tachometer, 3500/60 Temperature, 3500/61 Temperature (with Recorders), 3500/62 Process Variable, 3500/64 Dynamic Pressure (with modifications), 3500/70M Recip Impulse/Velocity, 3500/72M Recip Rod Position.

Compatible Transducer Systems (Approved by Bently Nevada):
Proximity: 3300 XL 5mm & 8mm Proximitor Sensors, 7200 5 & 8 mm Proximitor Sensor.
Acceleration/Velocity: 23733-03 Standard Acceleration Transducer, 330400 & 330425 Standard Integral Acceleration Transducers, 49578-01 Standard Acceleration Transducer, Velomitor Sensor (High Temperature variant available), Modified 86517 Interface Module.
Temperature: 3-wire Thermocouples (Types J, K, E, T); 3-wire RTDs (10Ω Copper, 100Ω Platinum, 120Ω Nickel).
Process Variable: +4 to +20 mA signals.
Incompatible Transducer Systems: Internal barriers are NOT compatible with: 11mm, 14mm, 16mm, 25mm, 35mm, 50mm Proximitor Sensors; Velocity Seismoprobe Sensors (1/42); Velocity-to-Displacement Converter (1/40); Magnetic pick-ups (1/50); 4-wire RTDs and Thermocouples (1/60, 1/61); 1-5 Vdc and 0-10 Vdc Process Variables (1/62).

Related/Required Parts:
Mandatory: 3500/04-01 IS Earthing Module (e.g., 136719-01) - One required per rack containing internal barriers.
Internal Barrier I/O Modules (Spares/Ordering Examples):
135473-01: For 3500/25 Monitor.
135489-01: For 3500/42, 70, 72 Monitors (4 prox/accel channels).
135489-02: For 3500/42, 70 Monitors (2 prox/accel + 2 Velomitor channels).
135489-03: For 3500/42, 70 Monitors (4 Velomitor channels).
135489-04: For 3500/40 Monitor.
136703-01: For 3500/50 Monitor.
136711-01: For 3500/60 Monitor.
136711-02: For 3500/61 Monitor.
137110-01: For 3500/62 Monitor.
Accessory: 138257-01: Earthing Module Front Panel.


Availability & Shipping

√100% Brand New & Original products with factory seal

√One-Year Warranty on all items
√Large Inventory of new and discontinued automation spare parts
√Fast Shipping – same-day or within 3 days after payment
√Worldwide Delivery via DHL, UPS, FEDEX, TNT, ARAMEX, CHIRLINE
√Customer Courier Accounts Accepted
√Original Packaging with secure export packing
√3–4 Working Days Delivery to most destinations



Reviews

★★★★★

Professional company

They are very supportive and have professional attitude. I have done some cases and they delivered quality products in time.


★★★★★

Excellent Experience

This is my first experience with them. They are so fantastic,well versed about product inquiry that i sent to her and her response is incredibly well. I am happy when they keep up with promise to send the goods on time.


★★★★★

I Highly recommend them

I Highly recommend them, they are very professional and Communication operative. Also their prices are good.


Related Accessories

Bently Nevada

125388-01

Bently Nevada

128275-01 130944-01

Bently Nevada

125388-01 125388-01H

Bently Nevada

128275-01F 130944-01

Bently Nevada

125388-01H

Bently Nevada

128276-01E

Bently Nevada

125704-01

Bently Nevada

129478-01

Bently Nevada

125720-01

Bently Nevada

130118-0050-02

Bently Nevada

125720-02

Bently Nevada

133323-01

Bently Nevada

125736-01

Bently Nevada

133396-01

Bently Nevada

125760-01

Bently Nevada

133434-01

Bently Nevada

125768-01

Bently Nevada

133442-01

Bently Nevada

125800-01

Bently Nevada

133827-01

Bently Nevada

125800-02

Bently Nevada

134652-01

Bently Nevada

125840-01

Bently Nevada

135489-04

Bently Nevada

126599-01

Bently Nevada

135813-01

Bently Nevada

126615-01

Bently Nevada

136188-01

Bently Nevada

126632-01

Bently Nevada

136294-01

Bently Nevada

126648-01

Bently Nevada

136483-01

Bently Nevada

126648-02

Bently Nevada

136703-01

Bently Nevada

128031-01C

Bently Nevada

136711-01

Bently Nevada

128031-01C 128031-01

Bently Nevada

136719-01

Bently Nevada

128229-01

Bently Nevada

138708-01

Bently Nevada

128240-01

Bently Nevada

140471-02

Bently Nevada

128275-01

Bently Nevada

144181-50
