PROXIMITY PROBE

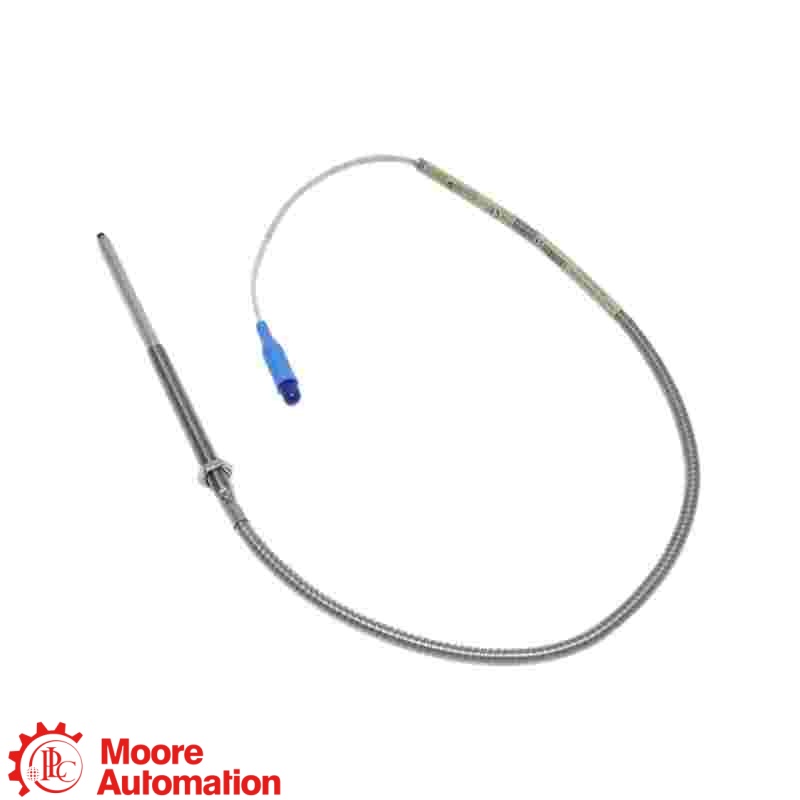

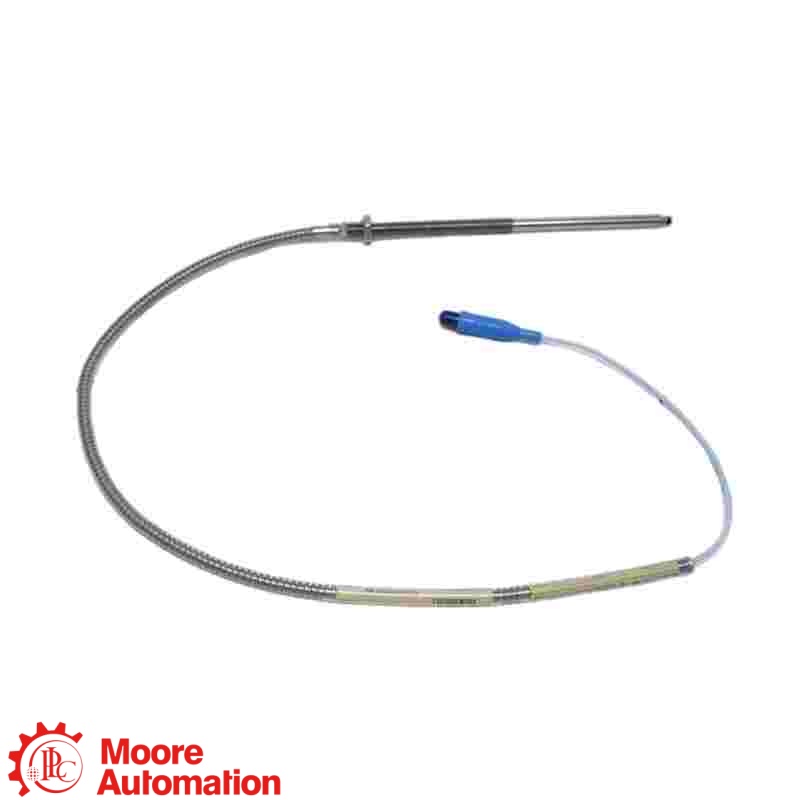

3300 XL NSv Probe
The probe senses the distance to a conductive target for static position and dynamic vibration measurements. Confirm case type, case dimensions, total length, armor and agency approval options.
330910-10-18-50-02-00 — A 3300 NSv proximity probe with a M10X1 threaded case, 100 mm unthreaded length, 180 mm overall case length, 5.0 m total length, a miniature coaxial ClickLoc connector with standard cable, and agency approval not required.
Click “+” to expand more specifications.
Official manufacturer documentation and system context for Bently Nevada 330910-10-18-50-02-00.
Bently Nevada Datasheet 147385 Rev. R identifies 330910 as a 3300 NSv probe with a M10X1 thread and armor, and defines options 10, 18, 50, 02 and final 00 for agency approval not required.
VIEW OFFICIAL FAMILY DATASHEETSend the complete model, quantity, and your technical or purchasing question.
Bently Nevada Datasheet 147385 Rev. R supports the 330910 base probe and options 10, 18, 50, 02 and final 00, including the no-approval selection.
Bently Nevada is the manufacturer. 330910-10-18-50-02-00 is the 5.0 m 3300 XL NSv probe component. It must be matched to a compatible 330980 Proximitor Sensor; if a 330930 extension cable is used, the probe and extension-cable lengths together must equal the selected system length.
The probe senses the distance to a conductive target for static position and dynamic vibration measurements. Confirm case type, case dimensions, total length, armor and agency approval options.
When an extension cable is used, its length combines with the 5.0 m probe lead to equal the compatible 330980 Proximitor Sensor system length and preserve the specified 3300 XL NSv electrical performance.
The compatible Proximitor Sensor conditions the probe signal into a voltage proportional to the gap between the probe tip and the conductive target.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete model, complete suffix, quantity and delivery destination.
