Product Introduction

Product Model:330903-00-06-05-02-CN

Type: NSv Extension Cable

Manufacturer: Bently Nevada

Shipment: DHL, UPS, Fedex, and TNT

Description:

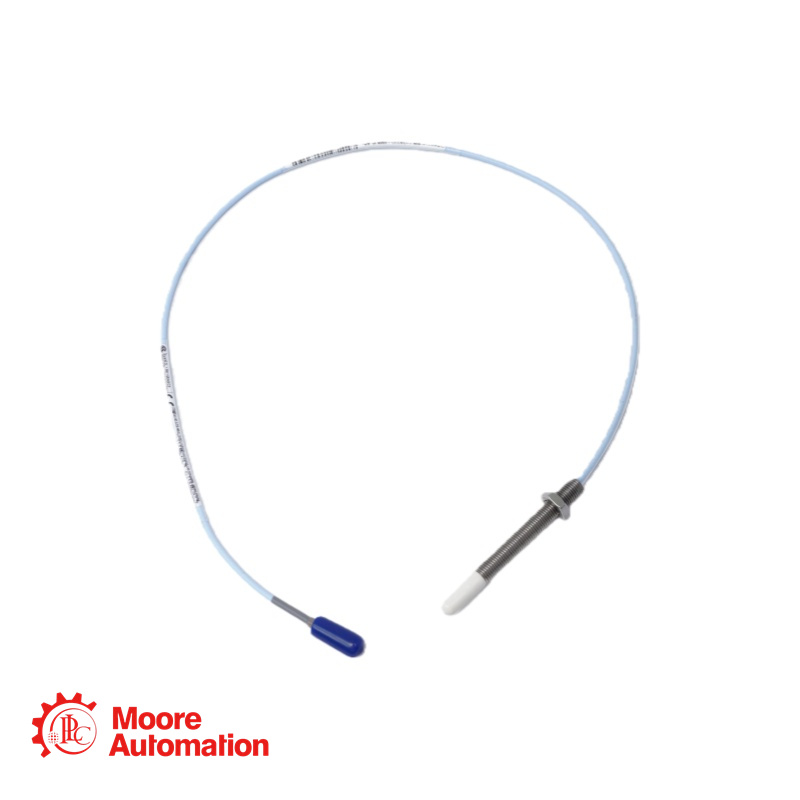

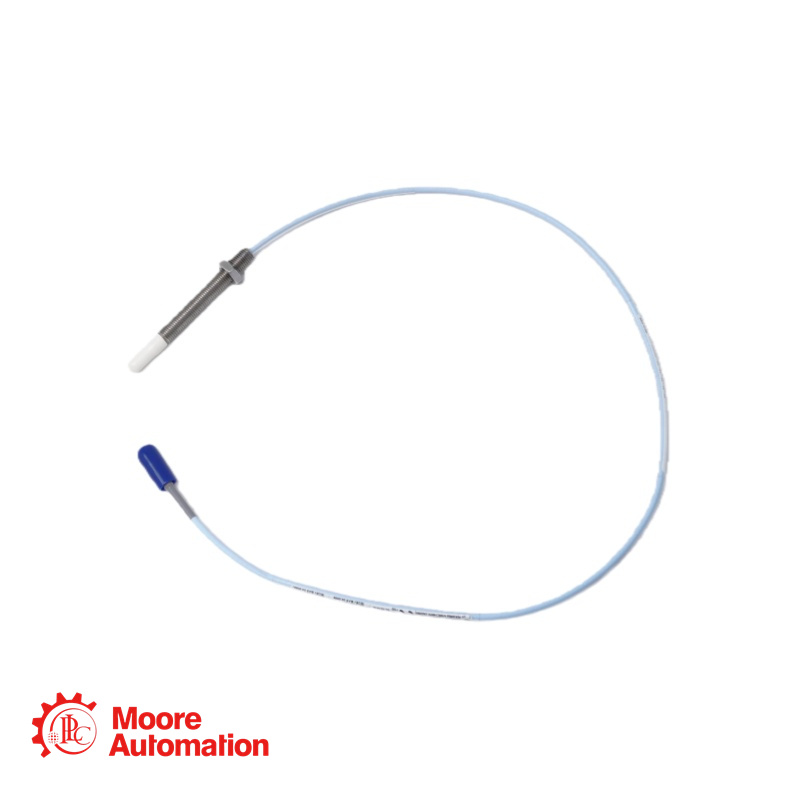

The 330903-00-06-05-02-CN is a metric M8x1 threaded 3300 NSv proximity probe designed for tight-clearance vibration and position monitoring on compressors and rotating machinery with small targets. Featuring a 60 mm case length, 0.5 meter cable, and ClickLoc connector, it offers a 1.5 mm linear range, robust PPS tip, and stainless steel construction for harsh industrial environments. This probe is compatible with the 3300 XL NSv Proximitor Sensor, provides excellent side-view performance, and is suitable for hazardous area applications when integrated with appropriate intrinsic safety barriers.

Specification:

Unthreaded Length Option (AA: 00): 0 mm
Overall Case Length Option (BB: 06): 60 mm
Total Length Option (CC: 05): 0.5 meter (20 inches) total probe cable length.
Connector and Cable-Type Option (DD: 02): Miniature coaxial ClickLoc connector with standard cable (no connector protector).
Cable Specifications: 75 Ω coaxial, fluoroethylene propylene (FEP) insulated.
Tensile Strength (Cable to Probe): 220 N (50 lb) maximum.
Minimum Bend Radius: 25.4 mm (1.0 in).
Recommended Gap Setting: 1.0 mm (40 mils).
Linear Range: 1.5 mm (60 mils), from approximately 0.25 mm to 1.75 mm from target.
Average Scale Factor (ASF): 7.87 V/mm (200 mV/mil) typical.
Incremental Scale Factor (ISF) Accuracy: 7.87 V/mm +12.5%/-20% including interchangeability error over the linear range.
Minimum Target Size (Flat): 8.9 mm (0.35 in) diameter;  recommended 13 mm (0.5 in).
Minimum Shaft Diameter (Radial, Standard X-Y): 30 mm (1.2 in).
Probe Temperature Range (Operating): -52°C to +177°C (-62°F to +351°F).
Probe Temperature Range (Storage): -52°C to +177°C (-62°F to +351°F).
