PROXIMITY PROBE
3300 XL NSv Probe
The probe senses the distance to a conductive target for static position and dynamic vibration measurements. Confirm case type, case dimensions, total length, armor and agency approval options.

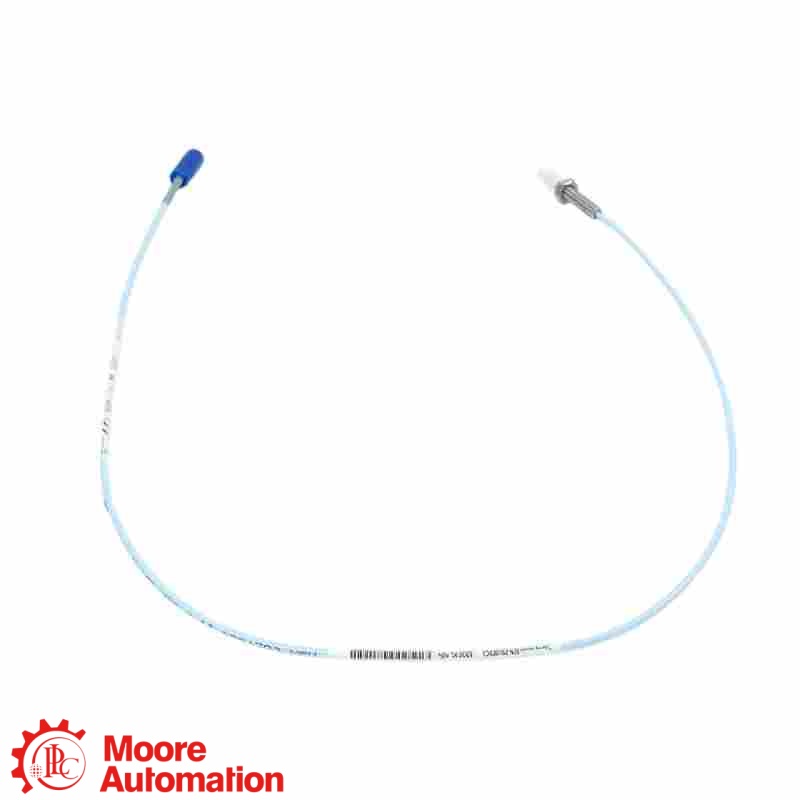

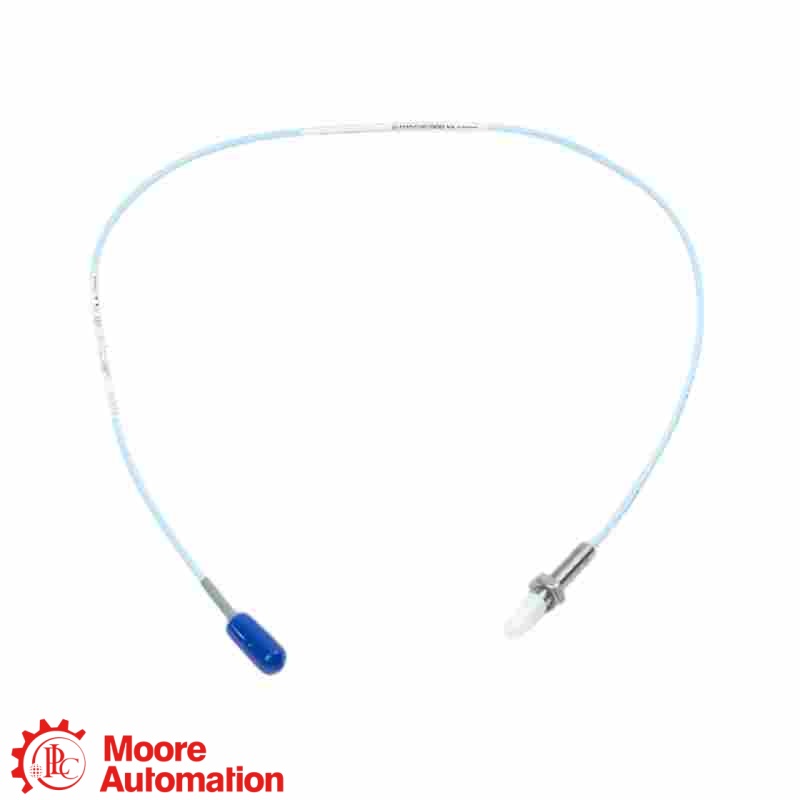

330901-00-16-05-02-CN — A 3300 NSv proximity probe with a 1/4-28 UNF threaded case, 0.0 in unthreaded length, 1.6 in overall case length, 0.5 m total length, a miniature coaxial ClickLoc connector with standard cable, and a country-specific approval suffix that should be confirmed for the destination.
Click “+” to expand more specifications.
Official manufacturer documentation and system context for Bently Nevada 330901-00-16-05-02-CN.
Bently Nevada Datasheet 147385 Rev. R identifies 330901 as a 3300 NSv probe with 1/4-28 UNF thread and no armor, and defines options 00, 16, 05 and 02. The CN suffix requires confirmation against the applicable country-specific approval guide.
VIEW OFFICIAL FAMILY DATASHEETSend the complete model, quantity, and your technical or purchasing question.
Bently Nevada Datasheet 147385 Rev. R supports the 330901 base probe and options 00, 16, 05 and 02. It does not define CN in the current ordering table; confirm the country-specific approval requirement before ordering.
Bently Nevada is the manufacturer. 330901-00-16-05-02-CN is the 3300 XL NSv probe component. It must be matched to a compatible 330930 extension cable and 330980 Proximitor Sensor for the required 5 m or 7 m total system length.
The probe senses the distance to a conductive target for static position and dynamic vibration measurements. Confirm case type, case dimensions, total length, armor and agency approval options.
The matched 330930 extension cable combines with the 0.5 m probe lead to equal the 330980 Proximitor Sensor system length and preserves the specified 3300 XL NSv electrical performance.
The compatible Proximitor Sensor conditions the probe signal into a voltage proportional to the gap between the probe tip and the conductive target.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete model, complete suffix, quantity and delivery destination.
