Marca :
Bently NevadaNúmero de parte :
330705-02-18-90-02-CNPeso :
0.05kgDimensión :
1.2x1x122cmPaís de origen :
USACódigo hs :
8537101190Descripción :

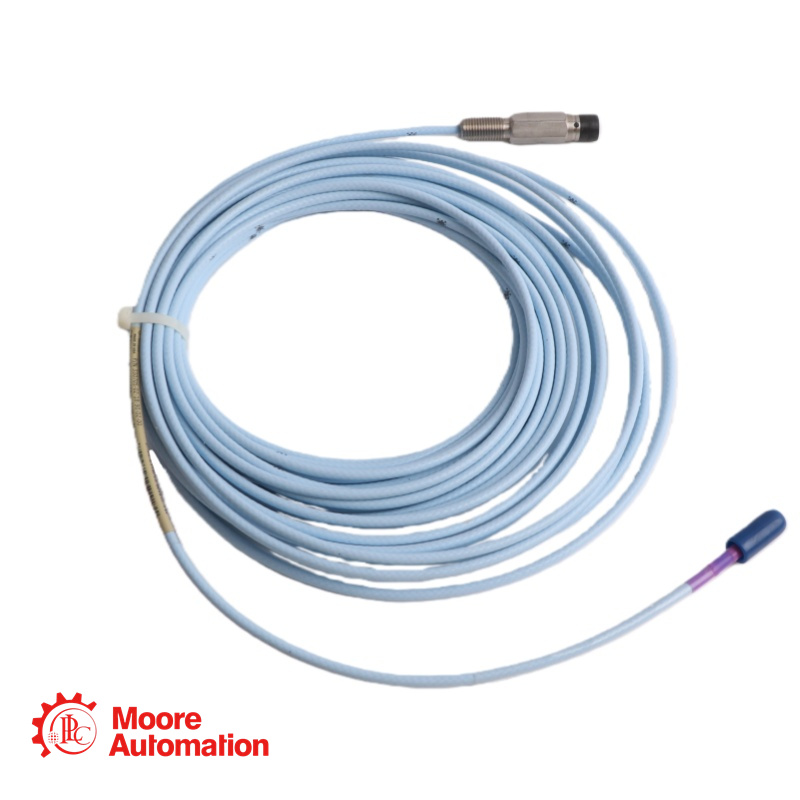

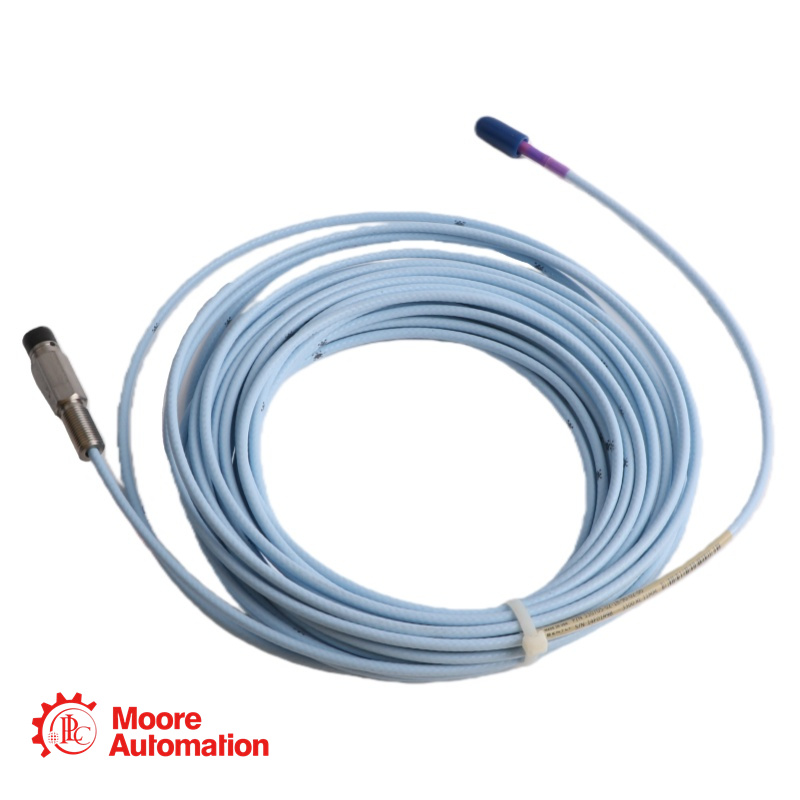

Reverse Mount Probe
Contact here to get quotation
|
❖Sales Manager: Frida |
|
❖Email:sales5@mooreplc.com |
|
❖Phone/Whatsapp/Wechat:+86 15359408275 |
Know Product Details
❖Unthreaded Length (Option A): 02 = 0.2 inch (5.08 mm)
❖Overall Case Length (Option B): 18 = 1.8 inch (45.72 mm)
❖Total Cable Length (Option C): 90 = 9.0 meters (29.5 feet)
❖Cable & Connector Option (Option D): 02 = Miniature coaxial ClickLoc connector, standard cable
❖Agency Approval (Option E): CN = Country-specific approval (likely China RoHS or CNEx)
———————————————————————————————————————————————Probe Type: Reverse mount
Thread Type: 3/8-24 UNF
Armor: Not available for reverse mount probes
Probe Tip Diameter: 11 mm
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 304 stainless steel
Cable Type: Standard 75 Ω triaxial cable with fluoroethylene propylene (FEP) insulation
Connector Type: Miniature coaxial ClickLoc connector (gold-plated brass)
Temperature Range (Operating/Storage): -52°C to +177°C (-62°F to +351°F)
Tensile Strength (Cable to Probe): 330 N (75 lb)
Minimum Bend Radius: 25.4 mm (1.0 in)
Linear Range: 4.0 mm (160 mils) from 0.5 mm to 4.5 mm gap
Scale Factor: 3.94 V/mm (100 mV/mil) ±10%
Frequency Response: 0 to 8 kHz
Recommended Gap Setting: 2.5 mm (100 mils)
Frequently Asked Questions?
❖Why is this 9‑meter probe not available with armor or FluidLoc options?
A: Reverse‑mount probes are mechanically designed to be threaded fully into the mounting housing, which makes it difficult to integrate armored or FluidLoc cable features. The cable must remain flexible enough to route out of the housing after installation.
❖Is the “CN” approval valid for use in Chinese hazardous locations?
A: The “CN” suffix indicates compliance with Chinese regulations (e.g., China RoHS SJ/T 11364‑2024). For hazardous‑area use in China, you must verify whether this specific part number carries CNEx certification for the required Zone/Division.
❖Is this 330705-02-18-90-02-CN orginal new one?
A: Yes! 330705-02-18-90-02-CN is brand new with one year warranty. Welcome to inquire our manager: Frida +86 15359408275 / sales5@mooreplc.com
