Bently Nevada 330104-11-16-10-02-00 3300 XL 8 mm Armored Proximity Probe
Bently Nevada 330104-11-16-10-02-00 3300 XL 8 mm Armored Proximity Probe
Bently Nevada 330104-11-16-10-02-00 3300 XL 8 mm Armored Proximity Probe

Bently Nevada 330104-11-16-10-02-00 3300 XL 8 mm Armored Proximity Probe

3300 XL 8 MM · ARMORED PROXIMITY PROBE

330104-11-16-10-02-00

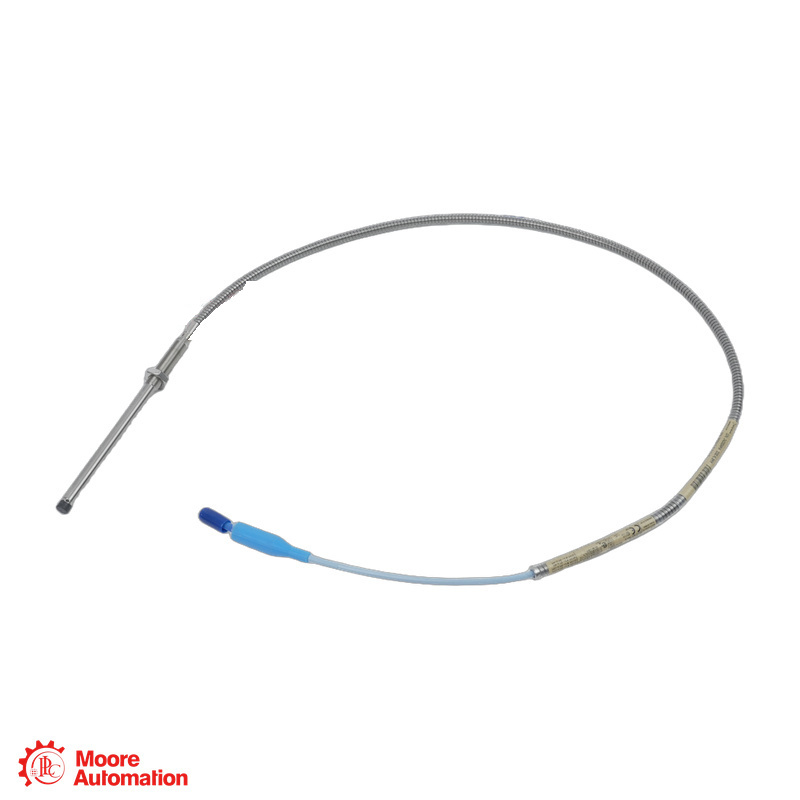

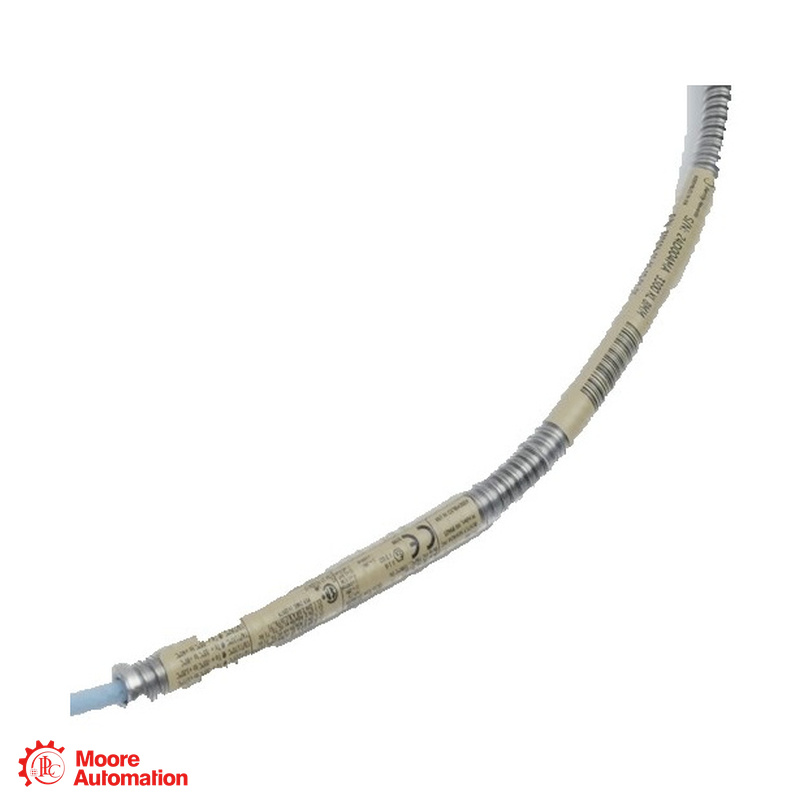

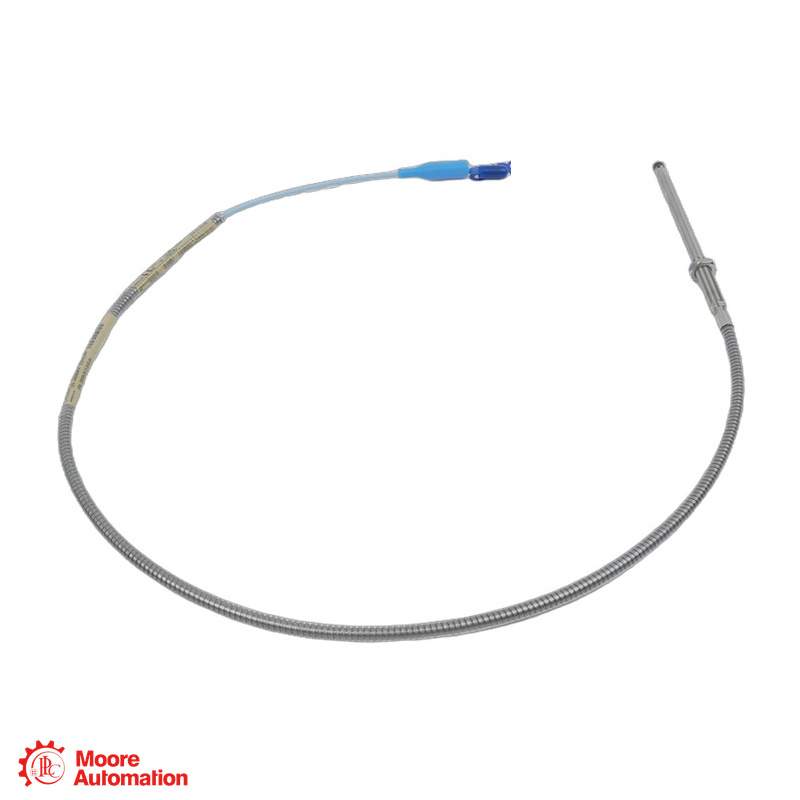

330104-11-16-10-02-00 — a Bently Nevada 3300 XL 8 mm proximity probe with M10 x 1 case thread, armor, 110 mm unthreaded length, 160 mm case length, 1.0 m total probe length and a miniature coaxial ClickLoc connector without protector.

UNTHREADED110 mm
CASE LENGTH160 mm
TOTAL LENGTH1.0 m
THREADM10 x 1
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL 8 MM ARMORED PROXIMITY PROBE
3300 XL 8 MM ARMORED PROXIMITY PROBE

330104-11-16-10-02-00

M10 x 1 · 1.0 m · armored

3300 XL 8 mm Armored Proximity Probe

3300 XL 8 MM PROXIMITY MEASUREMENT
330104-11-16-10-02-00 — A Bently Nevada 3300 XL 8 mm proximity probe with M10 x 1 case thread, armor, 110 mm unthreaded length, 160 mm case length, 1.0 m total probe length and a miniature coaxial ClickLoc connector without protector.
CONFIGURATION NOTE
330104 identifies the 3300 XL 8 mm armored M10 x 1 probe; 11 and 16 specify 110 mm unthreaded and 160 mm overall case lengths; 10 gives 1.0 m total length; 02 selects a ClickLoc connector on standard cable without a protector; final 00 means agency approval is not required.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330104
Base probe3300 XL 8 mm · M10 x 1 · armored
11
Unthreaded length110 mm
16
Overall case length160 mm
10
Total probe length1.0 m
02
Connector and cableClickLoc · standard cable · no protector
00
Agency approvalNot required
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3300 XL 8 MM ARMORED PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

UNTHREADED110 mm
CASE LENGTH160 mm
TOTAL LENGTH1.0 m
THREADM10 x 1
Exact-model configuration and engineering data.
Configuration note 330104 identifies the 3300 XL 8 mm armored M10 x 1 probe; 11 and 16 specify 110 mm unthreaded and 160 mm overall case lengths; 10 gives 1.0 m total length; 02 selects a ClickLoc connector on standard cable without a protector; final 00 means agency approval is not required.
General Information −
BrandBently Nevada
Part number330104-11-16-10-02-00
Product typeArmored Proximity Probe
Product family3300 XL 8 mm Transducer System
Case threadM10 x 1
ArmorArmored
Probe Geometry and Length ＋
Unthreaded length11 · 110 mm
Overall case length16 · 160 mm
Probe total length10 · 1.0 m
Connector and Approval ＋
Connector option02 · ClickLoc without protector
Cable typeStandard cable
Agency approval00 · Not required
Transducer System Role ＋
This 3300 XL 8 mm probe is the sensing end of a matched Bently Nevada proximity transducer system. For a 1.0 m system, the probe connects to the matched 1.0 m Proximitor Sensor without an extension cable; verify the installed system and application against manufacturer documentation.
FAQ

Questions Buyers Ask Most

What does 330104-11-16-10-02-00 identify?＋

330104-11-16-10-02-00 identifies an armored M10 x 1 Bently Nevada 3300 XL 8 mm proximity probe. It is the sensing probe, not the Proximitor signal-conditioning unit.

What mounting geometry do 11 and 16 specify on 330104-11-16-10-02-00?＋

330104-11-16-10-02-00 has a 110 mm unthreaded length and a 160 mm overall case length. Check thread fit, penetration and mechanical clearance before installation.

Which probe length and connector are specified for 330104-11-16-10-02-00?＋

330104-11-16-10-02-00 uses a 1.0 m total probe length. Option 02 is a miniature coaxial ClickLoc connector on standard cable, without a connector protector.

What does the final 00 mean on 330104-11-16-10-02-00?＋

330104-11-16-10-02-00 uses approval option 00, for which agency approval is not required in the manufacturer ordering table. Check site approval requirements and the supplied hardware marking before selection.

What should be supplied when ordering 330104-11-16-10-02-00?＋

Provide the complete 330104-11-16-10-02-00 code, M10 x 1 thread, 110 mm/160 mm geometry, 1.0 m matched system requirement, quantity and destination for a configuration check.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 330104-11-16-10-02-00 label, mounting geometry, matched Proximitor Sensor selection, site approval requirement and quantity for configuration checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330104-11-16-10-02-00

Manufacturer ordering information for the armored M10 x 1 3300 XL 8 mm proximity probe and this complete configuration.

Official manufacturer datasheet

Bently Nevada Datasheet 141194 lists the 330104 armored M10 x 1 probe and defines the 11, 16, 10, 02 and 00 ordering options used in this complete configuration.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the linked Bently Nevada manufacturer datasheet.

3300 XL 8 MM SYSTEM RELATIONSHIP

How 330104-11-16-10-02-00 Fits into the 3300 XL 8 mm Transducer System

Bently Nevada is the manufacturer. 330104-11-16-10-02-00 is the armored 8 mm sensing probe. Its tip faces a conductive shaft surface; in a 1.0 m system the probe connects to a matched 1.0 m 3300 XL Proximitor Sensor without an extension cable.

Bently Nevada · BRAND
Bently Nevada 3300 XL 8 mm SystemPRODUCT FAMILY · PROXIMITY TRANSDUCER SYSTEM
SENSING TARGET

Conductive Shaft Surface

The probe tip senses shaft-to-tip distance without contact.

EXTENSION CABLE

No Cable for 1 m System

A one-meter system uses the matching probe and Proximitor Sensor without an extension cable.

PROXIMITOR SENSOR

Signal Conditioning

A compatible 3300 XL Proximitor Sensor converts the probe signal for monitoring.

System relationship: the 1.0 m probe is used with the matching 1.0 m Proximitor Sensor; the manufacturer notes that one-meter systems do not use an extension cable.
APPLICATION AREAS

Functions and application roles for 330104-11-16-10-02-00

Shaft VibrationUse within a matched 3300 XL 8 mm system for non-contact shaft-vibration measurement.
Shaft PositionUse the transducer system to measure static shaft position at a conductive target.
APPLICATION CENTER 330104-11-16-10-02-00 3300 XL 8 mm Armored Proximity Probe
Keyphasor ReferenceA properly installed proximity system can provide speed or phase-reference signals.
Fluid-Film BearingsThe 3300 XL 8 mm system is applied to vibration and position measurement on fluid-film bearing machines.
