 /Bently Nevada 330103-00-11-05-01-00 3300 XL 8 mm Proximity Probe

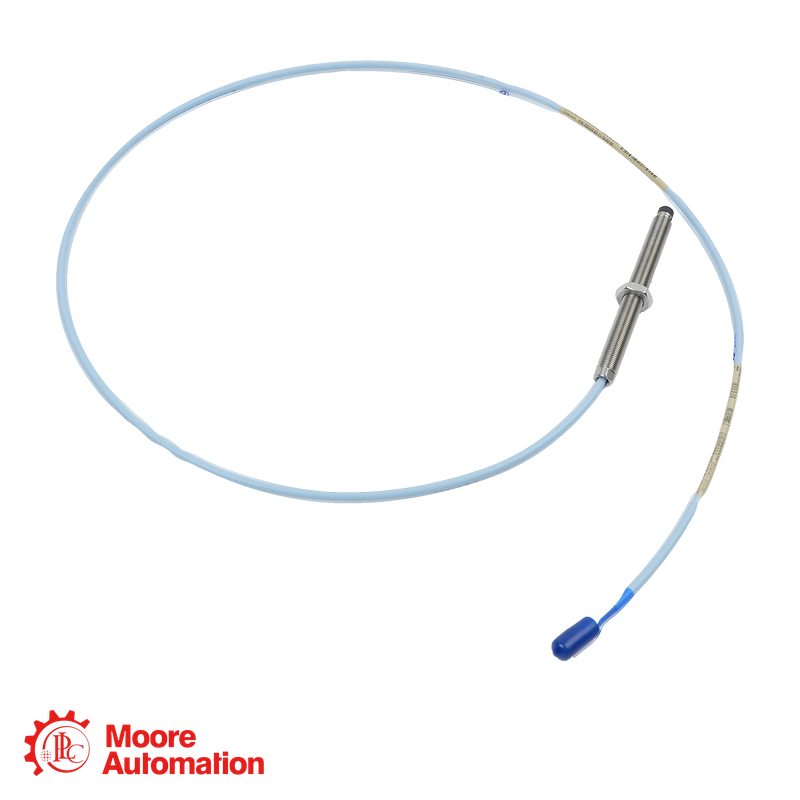

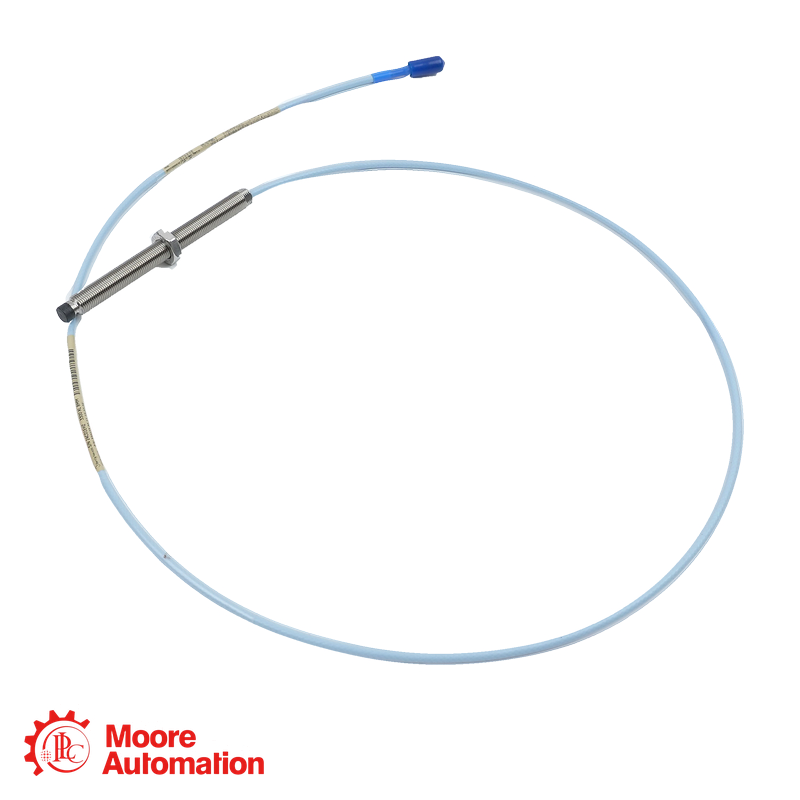

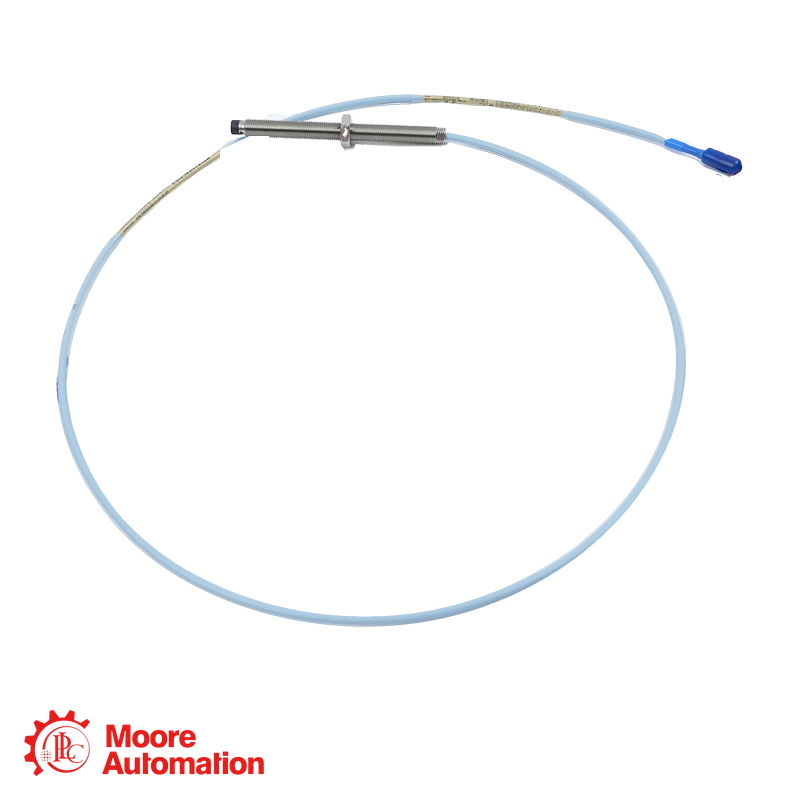

Bently Nevada 330103-00-11-05-01-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330103-00-11-05-01-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330103-00-11-05-01-00 3300 XL 8 mm Proximity Probe

Bently Nevada 330103-00-11-05-01-00 3300 XL 8 mm Proximity Probe

3300 XL · 8 MM PROXIMITY PROBE

330103-00-11-05-01-00

330103-00-11-05-01-00 — A 3300 XL 8 mm proximity probe with M10 x 1 thread and no armor, 0 mm unthreaded length, 110 mm overall case length, 0.5 m total length, a standard-cable ClickLoc connector with connector protector and approvals not required.

PROBE3300 XL 8 mm
CASE LENGTH110 mm
TOTAL LENGTH0.5 m
APPROVALAPPROVALS NOT REQUIRED
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL PROXIMITY PROBE
3300 XL 8 MM PROXIMITY PROBE

330103-00-11-05-01-00

M10 x 1 · without armor · 0.5 m total length

3300 XL 8 mm Proximity Probe

PROBE CONFIGURATION
330103-00-11-05-01-00 — A 3300 XL 8 mm proximity probe with M10 x 1 thread and no armor, 0 mm unthreaded length, 110 mm overall case length, 0.5 m total length, a standard-cable ClickLoc connector with connector protector and approvals not required.
CONFIGURATION NOTE
330103 = 3300 XL 8 mm probe with M10 x 1 thread and no armor; 00 = 0 mm unthreaded length; 11 = 110 mm overall case length; 05 = 0.5 m total length; 01 = ClickLoc connector with connector protector and standard cable; and 00 = approvals not required.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330103
Base model3300 XL 8 mm probe · M10 x 1 · without armor
00
Unthreaded length0 mm
11
Overall case length110 mm
05
Total length0.5 m · 1.6 ft
01
Connector and cableClickLoc connector with connector protector · standard cable
00
Agency approvalsApprovals not required
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

OFFICIAL DATASHEET REFERENCE
3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

PROBE3300 XL 8 mm
CASE LENGTH110 mm
TOTAL LENGTH0.5 m
APPROVALSApprovals not required
Configuration from manufacturer ordering data.
Configuration check Confirm the complete 330103 order code, thread, armor, unthreaded and case lengths, total cable length, connector/cable option, approvals and compatible Proximitor Sensor before replacement.
General Information −
BrandBently Nevada
Part number330103-00-11-05-01-00
Product type3300 XL 8 mm proximity probe
Product family3300 XL 8 mm
Measurement principleEddy-current proximity measurement
Probe constructionStandard-mount probe without armor
Configuration Dimensions ＋
Unthreaded length0 mm
Overall case length110 mm
Total length0.5 m (1.6 ft)
Connection and Approvals ＋
ConnectorMiniature coaxial ClickLoc connector with connector protector
Case threadM10 x 1
Cable typeStandard cable
ArmorNot included
Agency approvalsApprovals not required
System Context ＋
The 3300 XL 8 mm probe without armor connects through its ClickLoc coaxial interface to the extension cable and compatible 3300 XL 8 mm Proximitor Sensor. The complete probe-plus-extension-cable length must match the sensor system length.
Source: Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet 141194. The official ordering table defines base 330103 and options 00, 11, 05, 01 and 00.
FAQ

Questions Buyers Ask Most

What is 330103-00-11-05-01-00 used for?＋

330103-00-11-05-01-00 is a 3300 XL 8 mm probe without armor for non-contact shaft vibration and position measurement as part of a compatible probe, extension-cable and Proximitor Sensor system.

What does the 330103-00-11-05-01-00 code specify?＋

For 330103-00-11-05-01-00, 330103 identifies the M10 x 1 probe without armor; 00 is 0 mm unthreaded length; 11 is 110 mm case length; 05 is 0.5 m total length; 01 is the standard-cable ClickLoc connector with connector protector; and 00 means approvals not required.

Can 330103-00-11-05-01-00 be substituted with a similar part number?＋

Do not substitute 330103-00-11-05-01-00 by appearance alone. Match the full order code, thread, armor option, physical lengths, connector/cable type, approvals, target material, extension cable and Proximitor Sensor system length.

Which connector and cable configuration is used by 330103-00-11-05-01-00?＋

330103-00-11-05-01-00 uses a miniature coaxial ClickLoc connector with connector protector and standard cable. Its probe lead is configured for a 0.5 m total length and must connect to a compatible extension cable and Proximitor Sensor.

What should I provide for a 330103-00-11-05-01-00 quotation?＋

Send the complete 330103-00-11-05-01-00 nameplate, quantity, target material, thread, required probe and extension-cable lengths, Proximitor Sensor system length, hazardous-area requirements and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and system details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
330103-00-11-05-01-00

Official manufacturer reference and configuration context for Bently Nevada 330103-00-11-05-01-00.

Official manufacturer documentation

Bently Nevada Datasheet 141194 identifies the 330103 M10 x 1 probe family without armor and defines options 00, 11, 05, 01 and 00 used in 330103-00-11-05-01-00.

OPEN OFFICIAL DATASHEET PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Use the complete 330103-00-11-05-01-00 order number because its suffixes define unthreaded length, overall case length, total length, connector/cable type and agency approvals.

PROXIMITY SYSTEM RELATIONSHIP

How 330103-00-11-05-01-00 Fits into a Proximity Measurement Chain

Bently Nevada is the manufacturer. 330103-00-11-05-01-00 is a 3300 XL 8 mm proximity probe with M10 x 1 thread and no armor for a compatible extension-cable and Proximitor Sensor system.

Bently Nevada · BRAND
3300 XL 8 mm ProbePROXIMITY SYSTEM COMPONENT
PROXIMITY PROBE

3300 XL 8 mm Probe

The 330103 base identifies a standard-mount 3300 XL 8 mm probe with M10 x 1 thread and no armor.

SYSTEM CABLE

Matched Extension Cable

The probe connects to a 3300 XL extension cable selected so probe length plus extension-cable length equals the Proximitor Sensor system length.

SENSOR INTERFACE

3300 XL Proximitor Sensor

A compatible 3300 XL 8 mm Proximitor Sensor supplies the conditioned proximity signal to the machinery-monitoring input.

System relationship: the probe, extension cable, Proximitor Sensor total length, target material, field wiring and monitor input must be compatible with the installed application.
APPLICATION AREAS

Application areas for 330103-00-11-05-01-00

Shaft Radial Vibration MonitoringMeasures relative shaft vibration on compatible rotating machinery and monitoring inputs.
Axial Position MeasurementMeasures axial shaft position when the installed target, mounting geometry and monitor input are compatible.
APPLICATION CENTER 330103-00-11-05-01-00 3300 XL 8 mm Proximity Probe
Shaft Position and Gap MeasurementProvides a conditioned signal proportional to probe-to-target gap for compatible position-monitoring applications.
Machinery Protection SystemsFeeds compatible machinery protection and condition-monitoring instruments with the conditioned proximity signal.
