 /Bently Nevada 330102-00-12-10-01-05 3300 XL 8 mm Proximity Probe

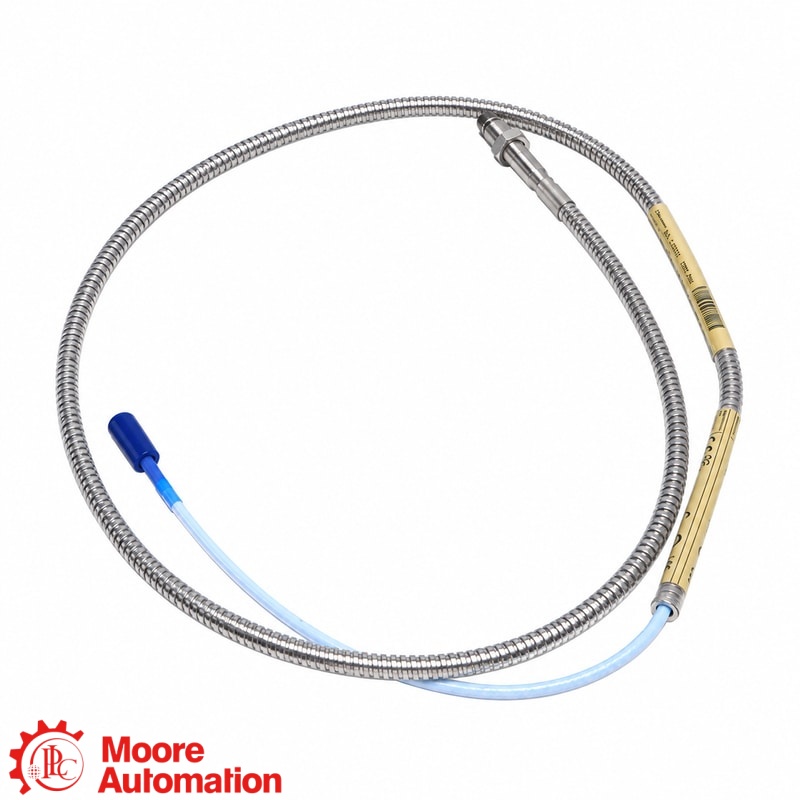

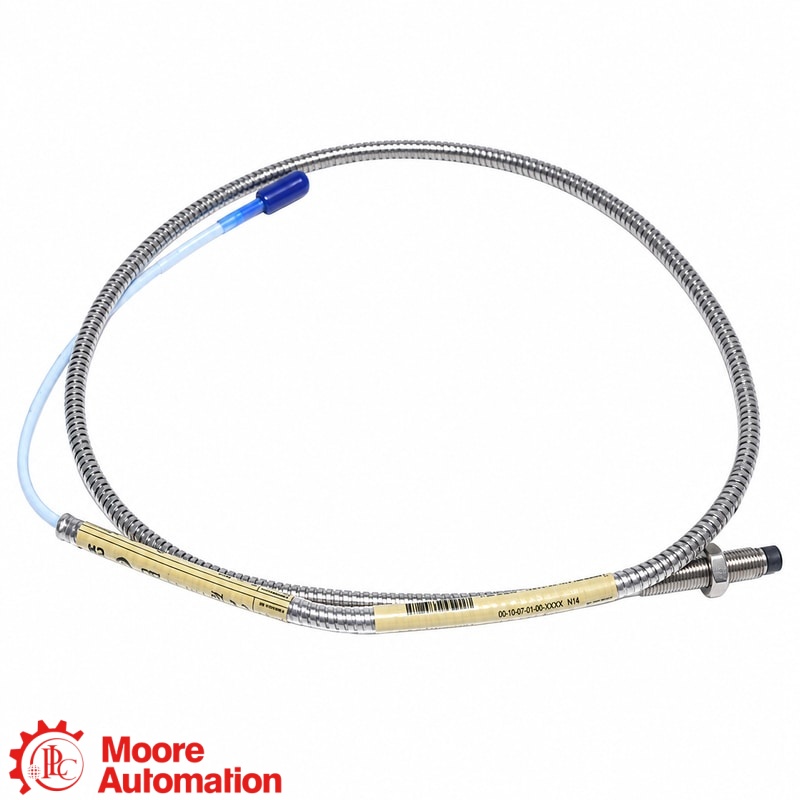

Bently Nevada 330102-00-12-10-01-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330102-00-12-10-01-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330102-00-12-10-01-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330102-00-12-10-01-05 3300 XL 8 mm Proximity Probe

3300 XL 8 MM · PROXIMITY PROBE

330102-00-12-10-01-05

330102-00-12-10-01-05 — A Bently Nevada 3300 XL 8 mm Proximity Probe with 3/8-24 UNF thread and armor, 0.0 in unthreaded length, 1.2 in overall case length, 1.0 m total length, ClickLoc connector with protector, standard cable and CSA, ATEX and IECEx approvals.

PROBE TIP8 MM
THREAD3/8-24 UNF
CASE LENGTH1.2 IN
TOTAL LENGTH1.0 M
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA● 3300 XL 8 MM PROXIMITY PROBE
3300 XL 8 MM PROXIMITY PROBE

330102-00-12-10-01-05

3/8-24 UNF thread · 0.0 in unthreaded · 1.2 in case · 1.0 m total length

3300 XL 8 mm Proximity Probe

3300 XL 8 MM SYSTEM INPUT
330102-00-12-10-01-05 — This probe connects through a matched 3300 XL 8 mm extension cable to a compatible Proximitor Sensor.
CONFIGURATION NOTE
330102 identifies the 3/8-24 UNF probe with armor; 00 specifies 0.0 in unthreaded length; 12 specifies 1.2 in overall case length; 10 specifies 1.0 m total length; 01 specifies a miniature coaxial ClickLoc connector with connector protector and standard cable; 05 specifies CSA, ATEX and IECEx approvals.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330102
Base model3/8-24 UNF probe · With armor
00
Unthreaded length0.0 in
12
Overall case length1.2 in
10
Total length1.0 metre
01
Connector / cableClickLoc · Protector · Standard cable
05
Approval optionCSA · ATEX · IECEx
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

PROBE TIP8 MM
THREAD3/8-24 UNF
CASE LENGTH1.2 IN
TOTAL LENGTH1.0 M
Configuration from manufacturer ordering data.
Configuration checkConfirm the complete order code, probe geometry, total system length, connector option, approval suffix and matched 3300 XL 8 mm system before ordering.
General Information −
BrandBently Nevada
Part number330102-00-12-10-01-05
Product type3300 XL 8 mm Proximity Probe
Product family3300 XL 8 mm Proximity Transducer System
Probe mounting3/8-24 UNF thread
ArmorWith armor
Probe Configuration ＋
Unthreaded length0.0 in
Overall case length1.2 in
Total length1.0 metre
ConnectorMiniature coaxial ClickLoc connector with protector
CableStandard cable
Connector protectorIncluded
Electrical and Mechanical ＋
Probe tip diameter8.0 mm
Linear range2.0 mm (80 mil)
Scale factor7.87 V/mm (200 mV/mil) ±5%
Recommended gap1.27 mm (50 mil), approximately −9 Vdc
Probe temperature range−52 to +177 °C
Minimum bend radius25.4 mm
System Compatibility ＋
Use this probe with the matched 3300 XL 8 mm extension cable and Proximitor Sensor for the manufacturer-specified total system length. Option 05 specifies CSA, ATEX and IECEx approvals; verify the complete order code and applicable approval markings before purchase.
Source: Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, Part Number 141194, Rev. AN. Option 05 is defined in Datasheet 141194 as CSA, ATEX and IECEx Approvals. System performance requires the correct matched probe, extension cable and Proximitor Sensor under the manufacturer’s stated conditions.
FAQ

Questions Buyers Ask Most

What is 330102-00-12-10-01-05 used for?＋

330102-00-12-10-01-05 is a Bently Nevada 3300 XL 8 mm proximity probe configured with 3/8-24 UNF thread, 0.0 in unthreaded length, 1.2 in overall case length, 1.0 m total length, ClickLoc connector with protector, standard cable and CSA, ATEX and IECEx approvals.

What does the 330102-00-12-10-01-05 code specify?＋

For 330102-00-12-10-01-05, 330102 is the 3/8-24 UNF probe with armor; 00 is 0.0 in unthreaded length; 12 is 1.2 in overall case length; 10 is 1.0 m total length; 01 is ClickLoc with connector protector and standard cable; 05 is the CSA, ATEX and IECEx approval option.

Can 330102-00-12-10-01-05 be substituted with a similar part number?＋

Do not substitute 330102-00-12-10-01-05 by appearance or family name alone. Compare every ordering segment, the total matched system length, the extension cable, the Proximitor Sensor and the required approval.

What system components must match 330102-00-12-10-01-05?＋

330102-00-12-10-01-05 must be paired with the appropriate 3300 XL 8 mm extension cable and Proximitor Sensor so the complete system length and configuration match the manufacturer’s requirements.

What should I provide for a 330102-00-12-10-01-05 quotation?＋

Send the complete 330102-00-12-10-01-05 nameplate, quantity, matched extension-cable and Proximitor Sensor details, required approval and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete probe label and matched 3300 XL 8 mm extension cable/Proximitor Sensor details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330102-00-12-10-01-05

Official manufacturer documentation for the Bently Nevada 3300 XL 8 mm Proximity Probe and its matched proximity transducer system.

Official manufacturer datasheet

Bently Nevada Datasheet 141194 identifies the 330102 3/8-24 UNF probe with armor and its ordering options. This order code specifies 0.0 in unthreaded length, 1.2 in overall case length, 1.0 m total length, ClickLoc connector with connector protector and standard cable, plus CSA, ATEX and IECEx approvals.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, Part Number 141194, Rev. AN. Datasheet 141194 defines option 05 as CSA, ATEX and IECEx Approvals.

3300 XL 8 MM SYSTEM CONNECTION

How 330102-00-12-10-01-05 Fits into the 3300 XL 8 mm System

Bently Nevada is the manufacturer. 330102-00-12-10-01-05 is the probe at the input of a matched 3300 XL 8 mm proximity transducer system. It connects through the appropriate extension cable to a compatible Proximitor Sensor.

Bently Nevada · BRAND
Bently Nevada 3300 XL 8 mm SystemPRODUCT FAMILY · PROXIMITY SYSTEM
SYSTEM INPUT

3300 XL 8 mm Probe

The probe senses target displacement and feeds the matched transducer system.

INTERCONNECT

Matched Extension Cable

The selected extension cable completes the manufacturer-specified system length.

SIGNAL CONDITIONING

Proximitor Sensor

The compatible Proximitor Sensor conditions the probe signal for monitoring.

System relationship: probe → matched extension cable → compatible Proximitor Sensor.
APPLICATION AREAS

Functions and integration points for 330102-00-12-10-01-05

Shaft VibrationSupports non-contact radial vibration measurement in a matched 3300 XL 8 mm system.
Axial PositionSupports axial or thrust position measurement with the matched system.
APPLICATION CENTER330102-00-12-10-01-053300 XL 8 mm Proximity Probe
Keyphasor ReferenceCan provide a once-per-turn reference signal in a correctly configured system.
Speed MeasurementSupports speed-related measurement when installed and conditioned as specified.
