 /Bently Nevada 330101-00-60-90-01-05 3300 XL 8 mm Proximity Probe

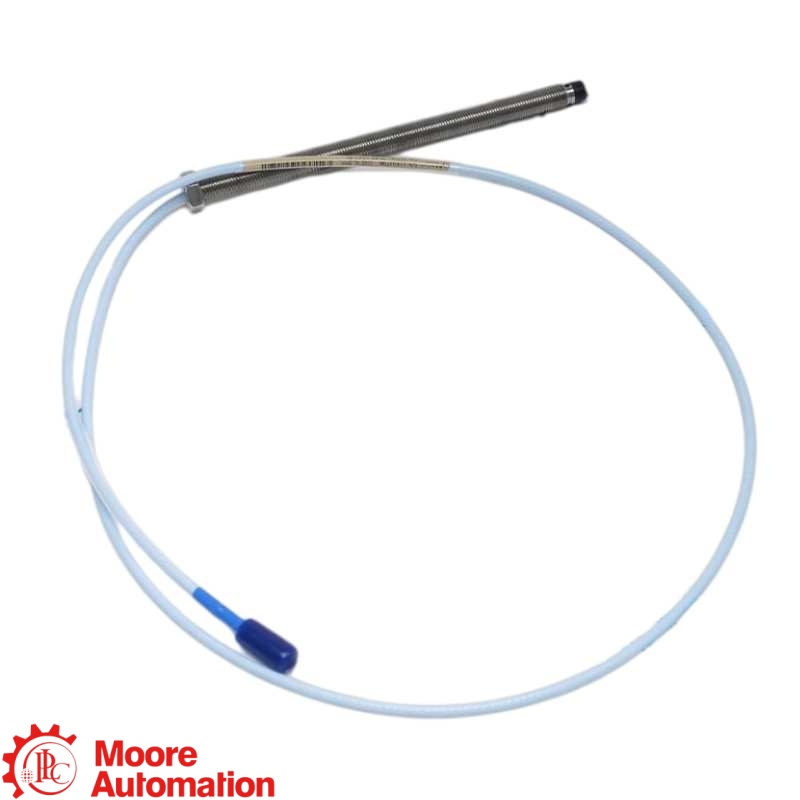

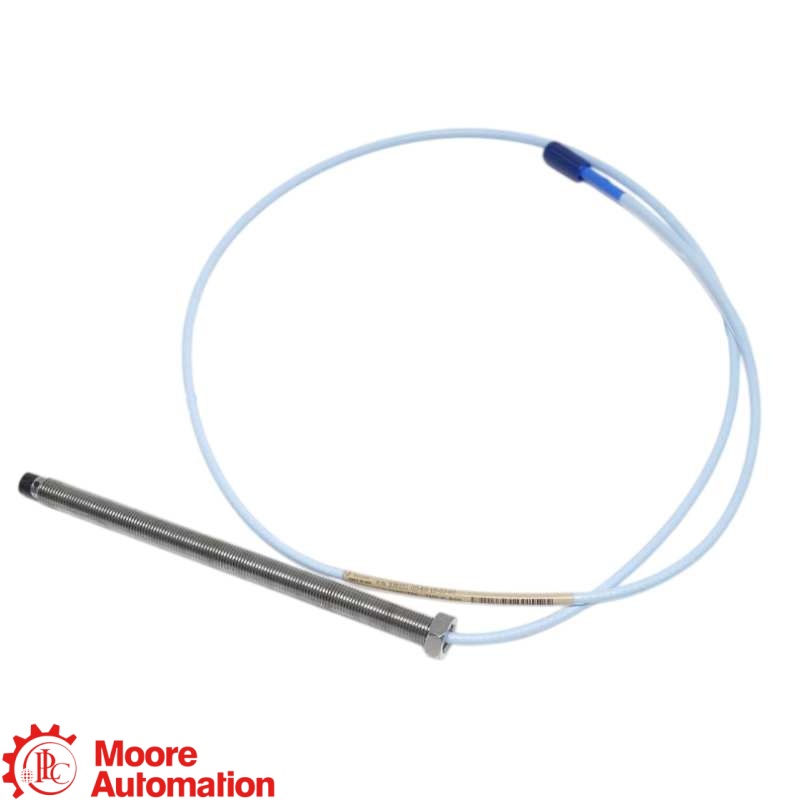

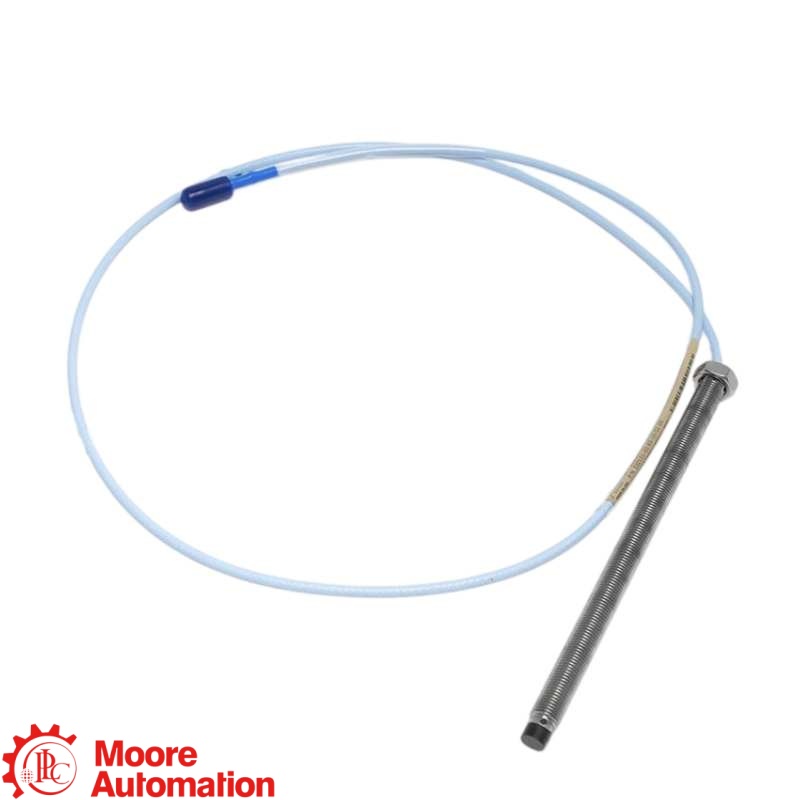

Bently Nevada 330101-00-60-90-01-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-60-90-01-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-60-90-01-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-00-60-90-01-05 3300 XL 8 mm Proximity Probe

BENTLY NEVADA · 3300 XL 8 MM PROXIMITY PROBE

330101-00-60-90-01-05

The 330101-00-60-90-01-05 is a 3300 XL 8 mm proximity probe with 3/8-24 UNF thread and no armor. This configuration has 0.0 in unthreaded length, 6.0 in case length, 9.0 m total length, a standard-cable ClickLoc connector protector and Multiple Approvals.

PROBE TYPE3300 XL 8 mm probe
THREAD3/8-24 UNF
TOTAL LENGTH9.0 m
CONNECTORClickLoc · protector
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATIONProduct photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ↗3300 XL 8 MM PROXIMITY PROBE
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM

330101-00-60-90-01-05

330101

3300 XL 8 mm Proximity Probe · 0.5 m standard cable

PRODUCT ROLE

330101-00-60-90-01-05 is a 3300 XL 8 mm proximity probe with 3/8-24 UNF thread and no armor for a compatible measurement chain.

CONFIGURATION NOTE

The official ordering options specify 0.0 in unthreaded length, 6.0 in case length, 9.0 m total length, standard cable with ClickLoc connector protector and Multiple Approvals.

WANT THE BEST PRICE?

Frida

Sales Leader 🏆
ORDER NUMBER BREAKDOWN

How the 330101-00-60-90-01-05 reference is structured

330101
Probe family3/8-24 UNF · without armor
00
Unthreaded length0.0 in
60
Case length6.0 in
90
Total length9.0 m
01
Cable / connectorStandard cable · ClickLoc with connector protector
05
Approval optionMultiple approvals
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Baker Hughes 3300 XL 8 mm Datasheet ↗
330101-00-60-90-01-05 · 3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

The official ordering options specify 0.0 in unthreaded length, 6.0 in case length, 9.0 m total length, standard cable with ClickLoc connector protector and Multiple Approvals.

PROBE TYPE3300 XL 8 mm probe
THREAD3/8-24 UNF
CASE LENGTH6.0 in
TOTAL LENGTH9.0 m
Baker Hughes 3300 XL 8 mm Datasheet defines the product family and ordering fields used for 330101-00-60-90-01-05.
General Information＋
ManufacturerBently Nevada
Model330101-00-60-90-01-05
Product type3300 XL 8 mm Proximity Probe
Transducer system3300 XL 8 mm Proximity Transducer System
Measurement roleNon-contacting relative displacement measurement
ORDERING OPTIONS＋
Unthreaded length0.0 in
Overall case length6.0 in
Total probe length9.0 m
Probe construction3/8-24 UNF thread · without armor
Connector / cable01 · ClickLoc with connector protector
Agency approval05 · Multiple Approvals
SYSTEM PERFORMANCE＋
Average scale factor7.87 V/mm (200 mV/mil)
Linear range2 mm (80 mils)
Recommended gap1.27 mm (50 mils)
Frequency response0 to 10 kHz
INSTALLATION & MATCHING CHECK＋
System componentsMatch probe, extension cable and Proximitor Sensor
MountingVerify 3/8-24 UNF thread and 6.0 in case length
Target / gapConfirm target material and recommended gap
Cable routingVerify 9.0 m cable and protector clearance
FAQ

Questions Buyers Ask Most

What is 330101-00-60-90-01-05?＋
330101-00-60-90-01-05 is a 3300 XL 8 mm proximity probe with 3/8-24 UNF thread and no armor for a compatible measurement chain.
How is the 330101-00-60-90-01-05 order number structured?＋
The 330101-00-60-90-01-05 reference is divided into 6 fields: 330101 (probe family), 00 (unthreaded length), 60 (case length), 90 (total length), 01 (cable / connector), 05 (approval option).
What are the key configuration details for 330101-00-60-90-01-05?＋
The official ordering options specify 0.0 in unthreaded length, 6.0 in case length, 9.0 m total length, standard cable with ClickLoc connector protector and Multiple Approvals.
Which product family does 330101-00-60-90-01-05 belong to?＋
330101-00-60-90-01-05 belongs to the 3300 XL 8 mm Proximity Transducer System product family.
What must be checked before installing 330101-00-60-90-01-05?＋
System components: Match probe, extension cable and Proximitor Sensor; Mounting: Verify 3/8-24 UNF thread and 6.0 in case length; Target / gap: Confirm target material and recommended gap; Cable routing: Verify 9.0 m cable and protector clearance.
Is an exact official datasheet available for 330101-00-60-90-01-05?＋
Yes. The linked manufacturer document supports the structured information shown for 330101-00-60-90-01-05.
What information should be supplied when ordering 330101-00-60-90-01-05?＋
For 330101-00-60-90-01-05, provide the complete catalog number, quantity, installed assembly references, application details and delivery destination.
CONTACT PRODUCT SPECIALIST

Confirm your 330101-00-60-90-01-05 configuration with Frida

Share the complete ordering number, mounting dimensions, cable length, approval requirement and measurement-chain references for compatibility checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Official Datasheet and References for 330101-00-60-90-01-05

Official Baker Hughes manufacturer information for the 330101-00-60-90-01-05 3300 XL 8 mm Proximity Probe.

3300 XL 8 mm Proximity Probe

Baker Hughes 3300 XL 8 mm Datasheet provides the manufacturer reference used for the model and configuration information on this page.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, nameplate details and your technical or purchasing question.

Source: Baker Hughes 3300 XL 8 mm Datasheet.
PRODUCT RELATIONSHIP

How 330101-00-60-90-01-05 Fits into the 3300 XL 8 mm Proximity Transducer System

Bently Nevada is the manufacturer; 3300 XL 8 mm Proximity Transducer System is the product family; and 330101-00-60-90-01-05 is the exact ordering reference.

Bently Nevada · BRAND
3300 XL 8 mm Proximity Transducer SystemPRODUCT FAMILY · MANUFACTURER-MATCHED CONFIGURATION
PRODUCT REFERENCE

330101-00-60-90-01-05

The probe is the sensing element in a matched 3300 XL 8 mm proximity measurement chain.

ORDERING CONFIGURATION

00 · 0.0 in · 60 · 6.0 in · 90 · 9.0 m

The official ordering options specify 0.0 in unthreaded length, 6.0 in case length, 9.0 m total length, standard cable with ClickLoc connector protector and Multiple Approvals.

SYSTEM ROLE

3300 XL 8 mm Proximity Transducer System

Match probe, extension cable and Proximitor Sensor.

System relationship: the probe, extension cable, Proximitor Sensor, total system length and target material must all match.
APPLICATION AREAS

Application map for 330101-00-60-90-01-05

Relative Shaft VibrationContactless relative-displacement measurement on rotating shafts
Axial Position MonitoringCompatible axial-position measurement with correct target and gap
APPLICATION CENTER330101-00-60-90-01-053300 XL 8 mm Proximity Probe
Measurement-Chain IntegrationMatch extension cable and Proximitor Sensor
Installation MatchingConfirm thread, case, cable, connector and target material
