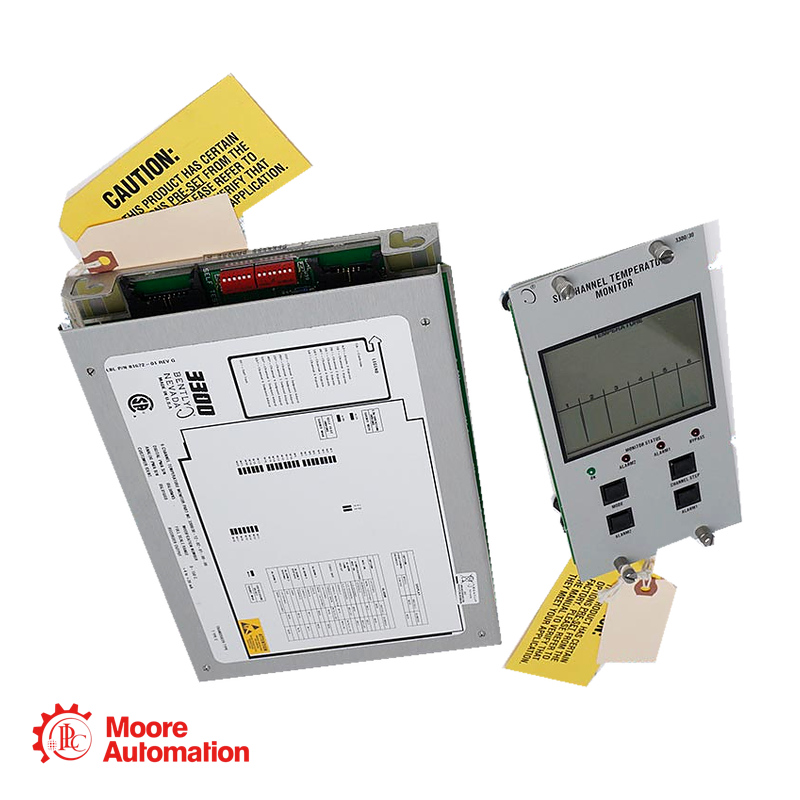

The Bently Nevada 3300/35-13-01-01-00-02 is a six-channel temperature monitor designed for RTD inputs in a 3300 machinery monitoring system
Marca :
Bently NevadaNúmero de parte :
3300/35-13-01-01-00-02Peso :
0.65 kgDimensión :
24.1 × 5.08 × 29 cmPaís de origen :
USACódigo hs :
8537101190Descripción :
Six-Channel RTD Monitor
|
GET THE BEST PRICE |
SALES CONTACT |
|
Contact Person |
Frida |
|
|
|
|
☎ Mobile / WhatsApp |
Product Overview

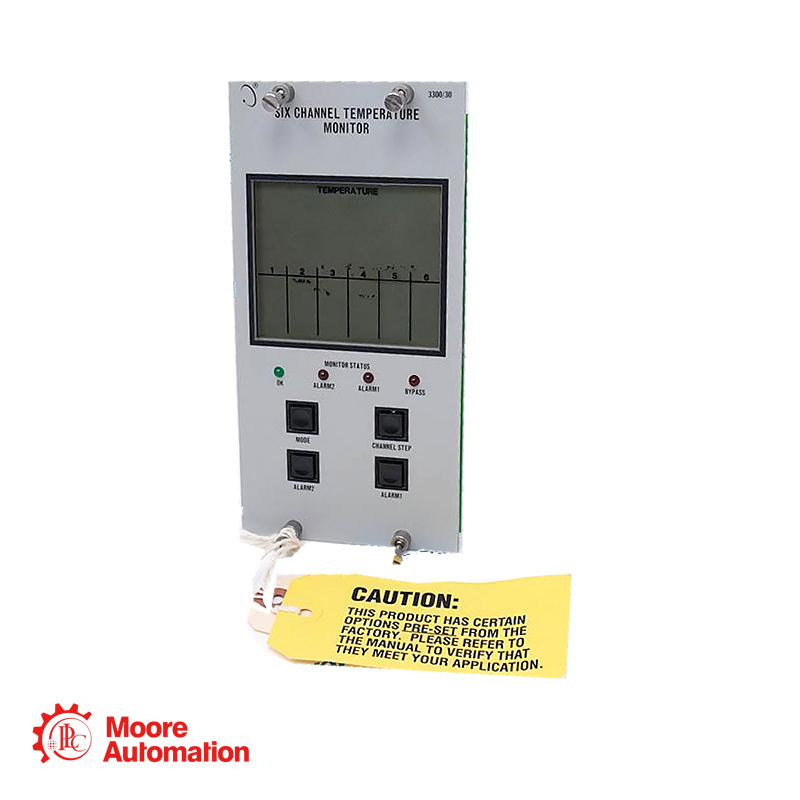

The Bently Nevada 3300/35-13-01-01-00-02 is a six-channel temperature monitor designed for RTD inputs in a 3300 machinery monitoring system. This configuration measures temperatures from 0°C to 200°C using three-wire, 100 Ω platinum RTDs with an alpha coefficient of 0.00392. Each channel has independently adjustable alarm settings and an individual recorder output. The monitor combines six temperature measurements in two rack positions and presents channel values, alarm status and diagnostic information on its front-panel LCD. This ordering configuration also includes epoxy-sealed alarm relays and internal safety barriers.
Order Number Breakdown
3300/35 — Six-Channel Temperature RTD Input Monitor
13 — 0°C to 200°C full-scale range
01 — Three-wire 100 Ω platinum RTD with α = 0.00392
01 — Epoxy-sealed alarm relay option
00 — Agency approval not required
02 — Internal safety barriers
Technical Information
|
Parameter |
Value |
|
Manufacturer |
Bently Nevada |
|
Product Line |
3300 System |
|
Ordering Number |
3300/35-13-01-01-00-02 |
|
Product Type |
Six-Channel RTD Temperature Monitor |
|
Measurement Channels |
Up to 6 channels |
|
Full-Scale Range |
0°C to 200°C |
|
Sensor Type |
100 Ω platinum RTD |
|
Input Wiring |
3-wire |
|
Alarm Relay Option |
Epoxy-sealed |
|
Safety Barrier Option |
Internal safety barriers |
|
Nominal Power Consumption |
4 W |
|
Display Accuracy with Tenths Digit |
±1°C maximum at 25°C |
|
Display Accuracy without Tenths Digit |
±1.5°C maximum at 25°C |
|
Display Type |
Common 4-digit, 7-segment LCD with decimal point |
|
Display Resolution |
0.1 or 1, user-programmable |
|
Display Modes |
SCAN and HIGH READ |
|
Alarm Repeatability |
Within ±1°C |
|
Alarm Delay Options |
1, 3 or 6 seconds |
|
Alarm 2 Relay Voting |
OR or AND, field-programmable |
|
Recorder Outputs |
+4–20 mA, +1–5 VDC or 0 to −10 VDC |
|
Recorder Output Quantity |
One individual output per channel |
|
Voltage Output Impedance |
100 Ω |
|
Minimum Voltage Output Load |
10 kΩ |
|
4–20 mA Output Load |
0–600 Ω |
|
Operating Temperature |
0°C to +65°C |
|
Storage Temperature |
−40°C to +85°C |
Benefits&Features
• Accepts up to six RTD temperature inputs
• Provides a 0°C to 200°C full-scale measurement range
• Supports three-wire 100 Ω platinum RTDs with α = 0.00392
• Provides individual recorder outputs for all six channels
• Offers independently adjustable Alarm 1 and Alarm 2 setpoints
• Allows Alarm 2 to operate as an over-temperature or under-temperature alarm
• Displays measured values, high readings, alarm status and error codes
• Includes epoxy-sealed alarm relays and internal safety barriers
Application Areas
- Bearing temperature monitoring on turbines, compressors and pumps
- Temperature supervision within turbine monitoring systems
- Six-point RTD monitoring for critical rotating machinery
- Motor, generator and gearbox bearing temperature monitoring
- Machinery protection systems requiring centralized temperature alarms
Main brands
No.
Brand
Main Product Lines
1
ABB
DSQC Series industrial robot parts; Bailey INFI 90; DCS
2
Honeywell
51 Series; MU Series; MC Series; TC Series; CC Series
3
General Electric (GE)
IC693 Series; IC697 Series; IC695 Series; DS200 Series
4
PLC
1756 Series; 1747 Series; 1746 Series
5
Schneider Electric
140 Series
6
Bently Nevada
3500 Series; 3300 Series; 330180 cables
7
Foxboro
FBM203; FBM204; FBM217; FBM231; FCP240; FCP270
8
Westinghouse
1C Series; 5X Series
9
Triconex
3008; 3511; 3625; 3664; 3721; 3700A
10
Siemens
6DD Series; 6DP Series; 6ES5 Series; 6DR Series; 6GK Series
Frequently Asked Questions
1. What type of temperature sensor does the 3300/35-13-01-01-00-02 use?
This configuration is designed for three-wire 100 Ω platinum RTDs with an alpha coefficient of 0.00392. The input type should match the installed field sensors.
2. How many temperature channels are available?
The monitor accepts up to six RTD signals. Each channel has its own temperature measurement, alarm settings and recorder output.
3. What does the final “02” option indicate?
The final “02” specifies internal safety barriers. This option is compatible with the three-wire RTD input selected by the earlier “01” code.
