 /Bently Nevada 3300/03-01-00 3300/03 System Monitor

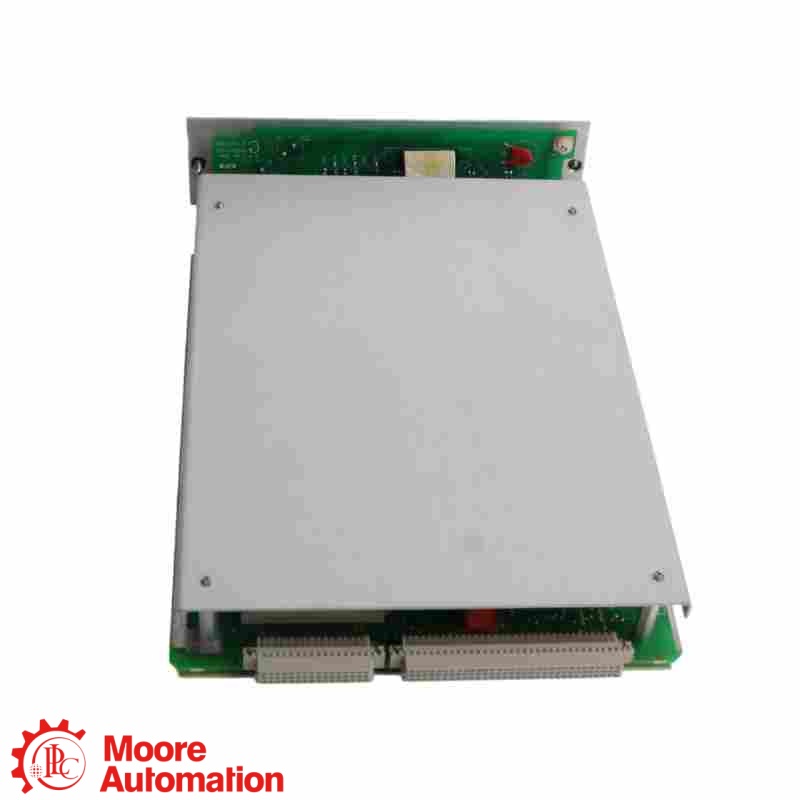

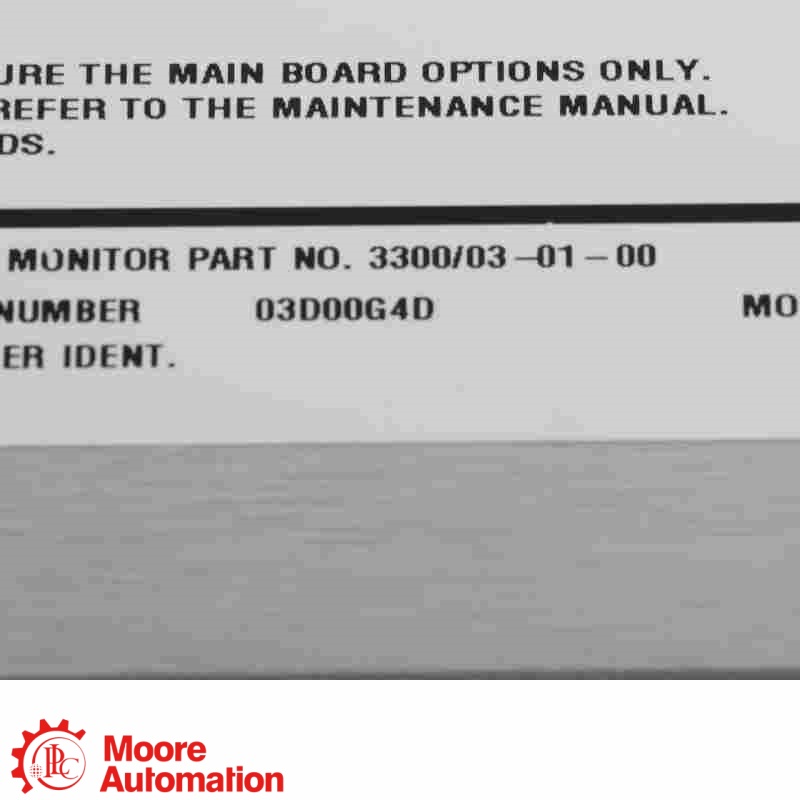

Bently Nevada 3300/03-01-00 3300/03 System Monitor
Bently Nevada 3300/03-01-00 3300/03 System Monitor
Bently Nevada 3300/03-01-00 3300/03 System Monitor

Bently Nevada 3300/03-01-00 3300/03 System Monitor

3300 SYSTEM · MONITOR

3300/03-01-00

3300/03-01-00 — A Bently Nevada 3300/03 System Monitor for common rack functions, Keyphasor signal distribution, alarm acknowledgement and monitor communications.

TYPEStandard
POWER2 W
RACK SPACE1 POSITION
APPROVALNONE
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300/03 SYSTEM MONITOR
3300/03 SYSTEM MONITOR

3300/03-01-00

Standard type · No approvals · 3300 rack position 2

3300/03 System Monitor

MEASUREMENT ROLE
3300/03-01-00 — The 3300/03 System Monitor provides common rack functions, connects installed monitors to communications interfaces and distributes Keyphasor signals.
CONFIGURATION NOTE
3300/03 identifies the System Monitor; option 01 is the Standard type, and option 00 specifies no agency approvals.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

3300/03
Base modelSystem Monitor base model
01
Type optionStandard type
00
Approval optionNo approvals
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3300/03 SYSTEM MONITOR

Engineering data at a glance

Click “+” to expand more specifications.

TYPEStandard
POWER2 W
RACK POSITIONPOSITION 2
APPROVALNONE
Configuration from manufacturer ordering data.
Configuration check Confirm the complete model, Standard type, approval option, rack position, communications interface and installed 3300 system before ordering.
General Information −
BrandBently Nevada
Part number3300/03-01-00
Product type3300/03 System Monitor
Product family3300 Series System Monitor
Primary rack functionsAlarm setpoint adjustment · Keyphasor distribution
Communications roleConnects rack monitors to external communications
Power and Signal Data ＋
Power consumption2 W; 4.6 W with interface options
Keyphasor inputsUp to four proximity-probe Keyphasor signals
Signal-conditioning rangeSoftware-selectable; 10 kHz maximum
Rack and Communications ＋
Rack spaceOne rack position
Installed positionPosition 2, next to the power supply
RS232 interface150 baud to 19.2 kbaud; 30 m maximum
RS422 interfaceUp to 38.4 kbaud for DDI; 1200 m maximum
Agency approvalOption 00 · none
Environment and Documentation ＋
Operating temperature: 0°C to +65°C. Storage temperature: -40°C to +85°C. Relative humidity: up to 95%, noncondensing.
Source: Bently Nevada 3300/03 documentation, Part Number 141524-01, Rev. F. Configuration and interface values require the complete 3300 rack and the manufacturer’s stated conditions.
FAQ

Questions Buyers Ask Most

What is 3300/03-01-00 used for?＋

3300/03-01-00 is the Standard 3300/03 System Monitor used for common rack functions, Keyphasor signal distribution, alarm acknowledgement and monitor communications.

What does the 3300/03-01-00 code specify?＋

For 3300/03-01-00, 3300/03 identifies the System Monitor, option 01 specifies the Standard type, and option 00 specifies no approvals.

Can 3300/03-01-00 be substituted with a similar part number?＋

Do not substitute 3300/03-01-00 by appearance or family name alone. Compare the complete order code, type option, approvals option, rack position, power-supply arrangement and required communications interfaces.

What common functions does 3300/03-01-00 provide?＋

3300/03-01-00 supports alarm setpoint adjustment, Keyphasor power and signal distribution, alarm acknowledgement, and connections to monitor communications interfaces.

What should I provide for a 3300/03-01-00 quotation?＋

Send the complete 3300/03-01-00 nameplate, quantity, installed 3300 rack configuration, communications requirements, power-supply arrangement and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and installed 3300 rack details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
3300/03-01-00

Legacy manufacturer documentation for the Bently Nevada 3300/03 System Monitor, shown here for exact model verification.

Legacy manufacturer documentation status

Bently Nevada Specifications and Ordering Information, Part Number 141524-01, identifies 3300/03 as the System Monitor; option 01 is Standard and option 00 is no approvals. No current manufacturer-hosted exact datasheet PDF was located.

VIEW BENTLY NEVADA OFFICIAL SITE

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use legacy Bently Nevada 3300/03 documentation, Part Number 141524-01, Rev. F.

3300 SYSTEM MONITOR RACK RELATIONSHIP

How 3300/03-01-00 Fits into the 3300 Monitoring Rack

Bently Nevada is the manufacturer. 3300/03-01-00 is the Standard 3300/03 System Monitor with no agency approvals. It installs in rack position two next to the power supply.

Bently Nevada · BRAND
Bently Nevada 3300 SystemPRODUCT FAMILY · RACK ARCHITECTURE
COMMON RACK FUNCTIONS

System Monitor

The System Monitor provides alarm setpoint adjustment, alarm acknowledgement and shared functions for monitors installed in the rack.

KEYPHASOR AND ALARM FUNCTIONS

Keyphasor Distribution

The module provides Keyphasor power, termination, conditioning and distribution, and supports rack alarm reset and inhibit functions.

COMMUNICATIONS

Monitor Interfaces

STATIC and DYNAMIC data ports connect installed monitors to external communications; interface options support RS232 or RS422 links.

System relationship: the complete order code, rack position, power-supply arrangement and communications interface must match the installed 3300 system.
APPLICATION AREAS

Functions and integration points for 3300/03-01-00

Alarm Setpoint AdjustmentProvides controls for adjusting monitor alarm setpoints across the rack.
Keyphasor Power and DistributionSupplies and conditions up to four proximity-probe Keyphasor signals for rack distribution.
APPLICATION CENTER 3300/03-01-00 3300/03 System Monitor
Alarm AcknowledgementSupports alarm reset and acknowledgement functions for the monitoring rack.
Monitor CommunicationsConnects installed monitors to external communications through STATIC and DYNAMIC data ports.
