 /Bently Nevada 21504-000-040-10-02 7200 Series 8 mm Proximity Probe

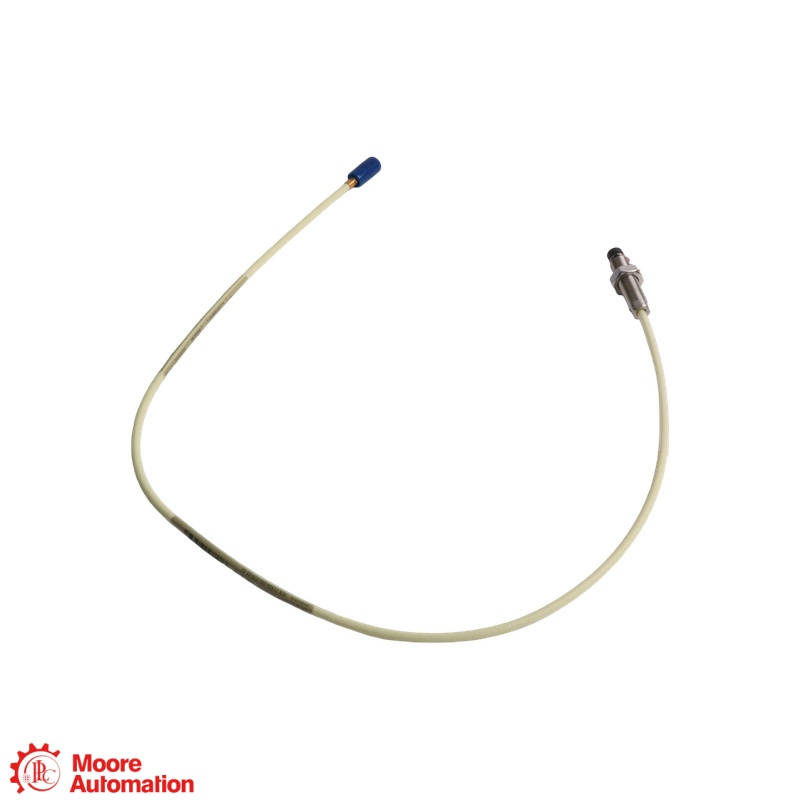

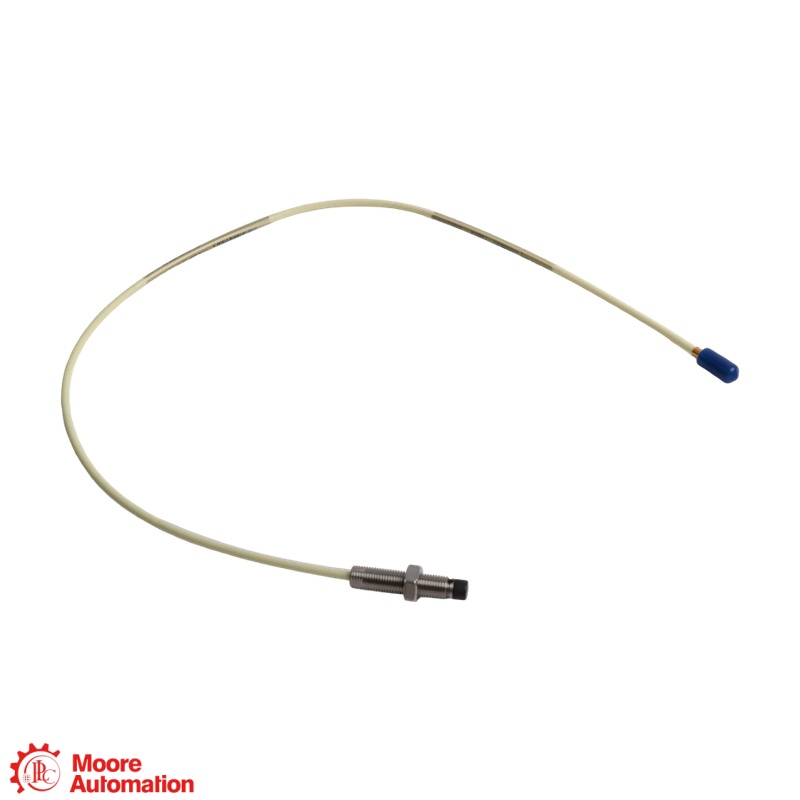

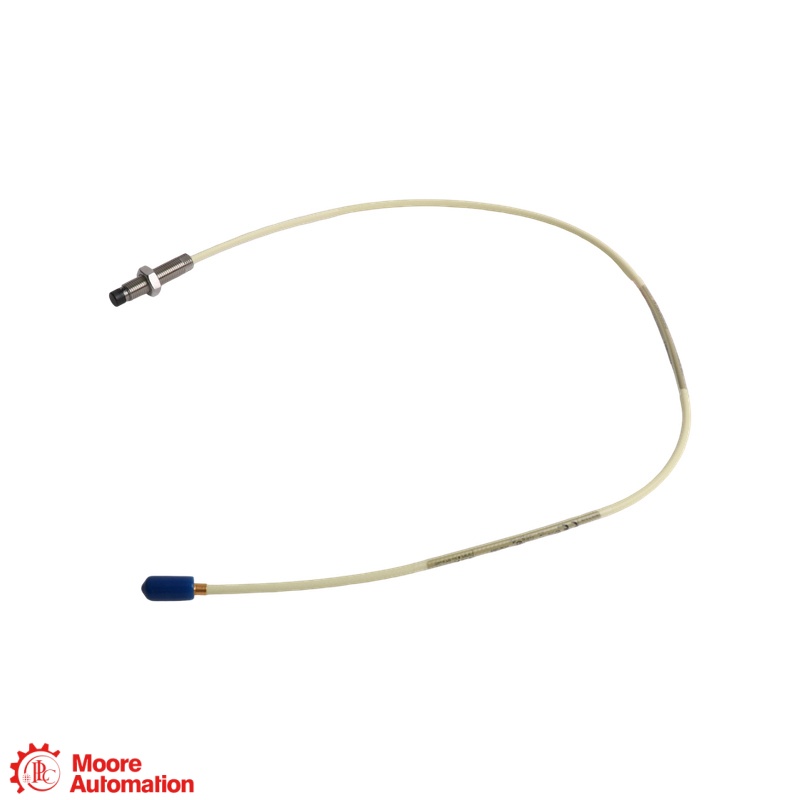

Bently Nevada 21504-000-040-10-02 7200 Series 8 mm Proximity Probe
Bently Nevada 21504-000-040-10-02 7200 Series 8 mm Proximity Probe
Bently Nevada 21504-000-040-10-02 7200 Series 8 mm Proximity Probe

Bently Nevada 21504-000-040-10-02 7200 Series 8 mm Proximity Probe

7200 SERIES · 8 MM PROXIMITY PROBE

21504-000-040-10-02

21504-000-040-10-02 — a Bently Nevada 7200 Series 8 mm standard-mount proximity probe with a 3/8-24 case thread and unarmored lead. The complete order reference is retained.

TIP8 mm
THREAD3/8-24
LEAD1.0 m
CONNECTORCoaxial
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 7200 SERIES 8 MM PROBE
7200 SERIES 8 MM STANDARD-MOUNT PROXIMITY PROBE

21504-000-040-10-02

8 mm tip · 3/8-24 case · 1.0 m cable

7200 Series 8 mm proximity probe

NONCONTACTING 7200 PROXIMITY PROBE
21504-000-040-10-02 — A Bently Nevada 7200 Series 8 mm standard-mount proximity probe. Its 21504 base identifies the unarmored 3/8-24 probe; the legacy table supports 10 as 1.0 m total cable and 02 as the miniature male coaxial connector. The three-digit 000 and 040 fields are retained without a dimensional interpretation.
ORDERING NOTE
The legacy 7200 table confirms the 21504 base and the 10 / 02 option meanings. It uses a different field width for case dimensions, so no length is assigned to the literal 000 / 040 fields.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

21504
Probe base8 mm standard mount; 3/8-24
10
Total probe cable1.0 m cable
02
Connector optionMiniature male coaxial
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
7200 SERIES STANDARD-MOUNT PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

PROBE TIP8 mm
CASE THREAD3/8-24
LEAD1.0 m
CONNECTORMale coaxial
Documented probe construction and ordering fields.
System note The probe is one component of a matched 7200 proximity transducer chain. Match its integral lead, any extension cable and the Proximitor; do not infer case dimensions from the three-digit 000 / 040 fields.
General Information −
BrandBently Nevada
Part number21504-000-040-10-02
Product type7200 Series 8 mm proximity probe
Product family7200 Proximity Transducer System
Probe tip diameter8 mm
Mount / case threadStandard mount; 3/8-24
Ordering Configuration ＋
Total probe cable1.0 m (option 10)
Connector optionMiniature male coaxial (02)
Lead armorNone (21504 base)
Probe Construction ＋
Mounting typeStandard mount
Case thread3/8-24
Sensing methodNoncontacting eddy current
Installation Guidance ＋
Mount the probe using the documented 3/8-24 standard case. Match the 1.0 m integral cable, any extension cable and the correct 7200 Proximitor to the installed channel; use the applicable machine drawing and installation procedure to set the target gap.
FAQ

Questions Buyers Ask Most

Which tip and case thread are documented for 21504-000-040-10-02?＋

21504-000-040-10-02 uses the 21504 base: an 8 mm standard-mount probe with 3/8-24 case thread and no lead armor. Confirm the actual machine mounting and complete part marking.

What components must be matched with 21504-000-040-10-02?＋

21504-000-040-10-02 forms one part of the 7200 measurement chain. Match its lead, any extension cable, the Proximitor and monitor input to the approved system configuration.

What do the 10 and 02 options specify for 21504-000-040-10-02?＋

The ordering code for 21504-000-040-10-02 specifies a 1.0 m total probe cable through option 10 and a miniature male coaxial connector through option 02 in the legacy 7200 table. No case dimensions are inferred from the three-digit 000 / 040 fields.

Can 21504-000-040-10-02 be powered as a standalone transmitter?＋

No. 21504-000-040-10-02is a probe, not a standalone voltage-output transmitter. Connect it to a compatible 7200 Proximitor rather than applying power directly to the coaxial probe lead.

What should be checked before ordering 21504-000-040-10-02?＋

For 21504-000-040-10-02, provide the full five-field reference, case and lead photos, installed cable/Proximitor arrangement, machine mounting drawing and required approval documentation. Do not substitute a nearby 21504 suffix without verifying it.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 21504-000-040-10-02 marking, installed 7200 cable/Proximitor configuration and mounting drawing for a compatibility check.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
21504-000-040-10-02

Exact-model supplier records agree on a 7200 Series 8 mm proximity probe. The manufacturer-authored legacy catalog supports the 21504 base and selected option meanings, but not a dimensional decoding of 000 / 040.

Official datasheet status

No current official 21504-000-040-10-02 product datasheet was located in the manufacturer's public documentation. For product documentation and compatibility details, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

The archived Bently Nevada L5001 7200 catalog describes the 21504 probe base and 10 / 02 options; it does not establish exact 000 / 040 case dimensions for this complete reference.

7200 MEASUREMENT CHAIN

How 21504-000-040-10-02 Fits a Proximity Measurement System

Bently Nevada is the manufacturer. 21504-000-040-10-02 is an 8 mm standard-mount probe in a 7200 proximity transducer chain. Its lead connects through the appropriate cable path to a matched Proximitor, which provides the monitor signal.

Bently Nevada · BRAND
Bently Nevada 7200PRODUCT FAMILY · 8 MM PROXIMITY PROBE
PROBE AT MACHINE

8 mm Standard-Mount Probe

The 8 mm probe senses shaft displacement without contacting the target.

CABLE PATH

Matched System Length

The 1.0 m integral lead and any extension cable must suit the selected 7200 Proximitor system.

PROXIMITOR / MONITOR

Conditioned Signal

The matched Proximitor conditions the probe signal for the machinery monitor.

System relationship: the probe, lead, extension cable where used and Proximitor must be compatible as one measuring chain.
APPLICATION AREAS

Functions and application roles for 21504-000-040-10-02

Radial VibrationSupports shaft-relative radial vibration measurement in a correctly matched 7200 system.
Axial PositionCan measure axial shaft position when the target, gap and monitor setup are suitable.
APPLICATION CENTER 21504-000-040-10-02 7200 Series 8 mm standard-mount proximity probe
Probe Gap SetupInstall at the machine target and set the gap using the applicable 7200 system procedure.
System RetrofitCheck the 3/8-24 case, lead path and compatible Proximitor before replacing an installed probe.
