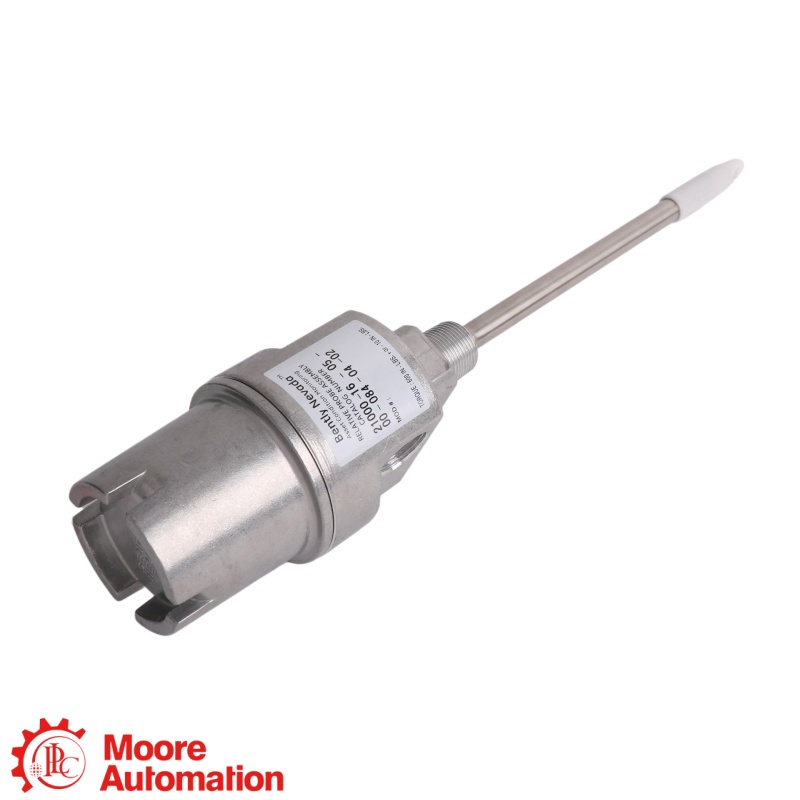

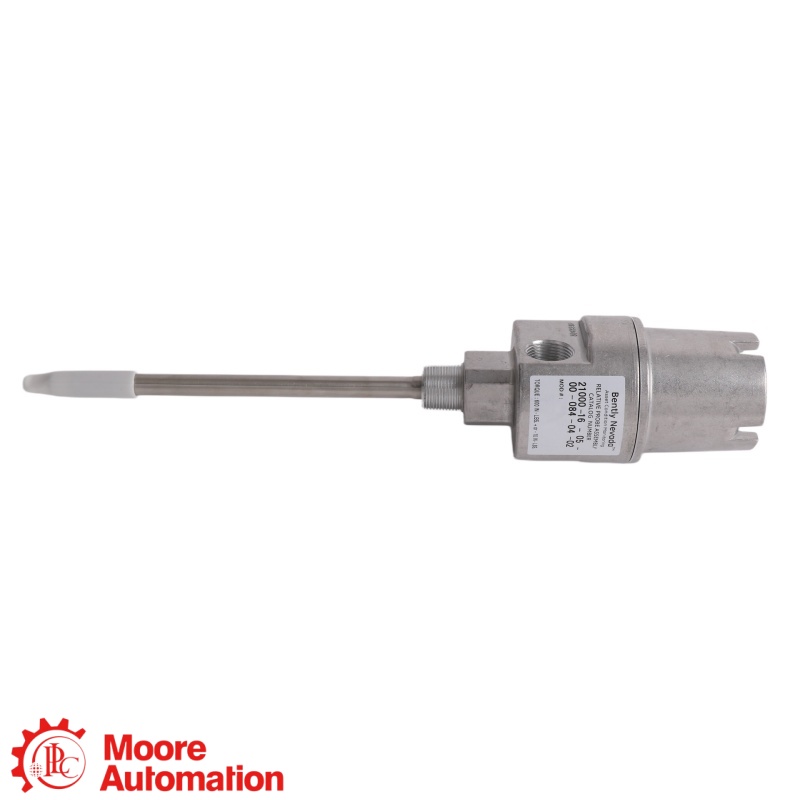

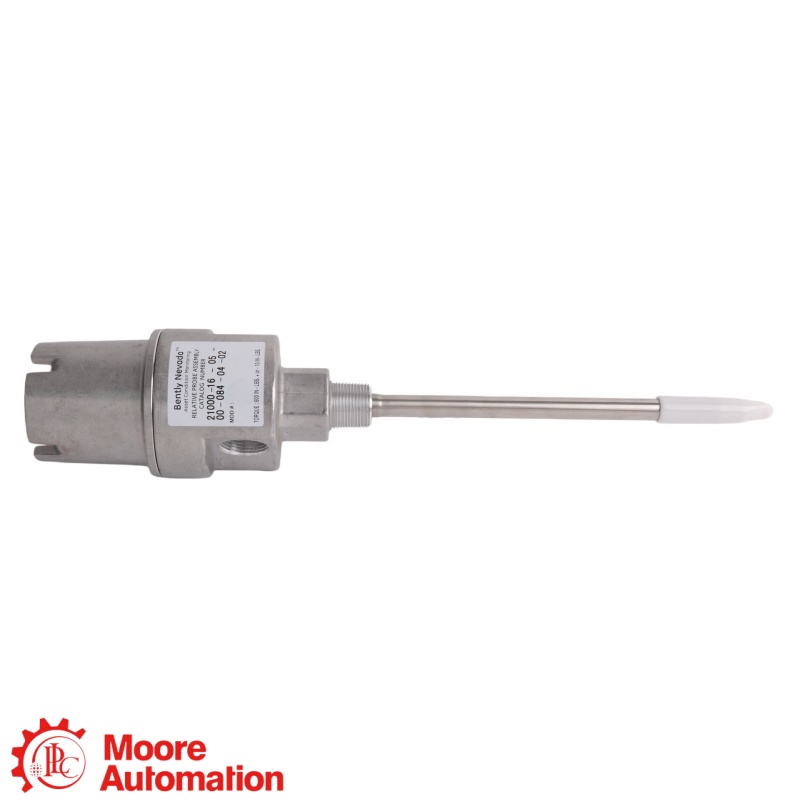

The Bently Nevada 21000-16-10-00-256-13-02 is an aluminum proximity probe housing assembly for externally mounting a 3300 XL 8 mm reverse-mount probe
Marca :
Bently NevadaNúmero de parte :
21000-16-10-00-256-13-02Peso :
2.0 kgDimensión :
65 × 100 × 8.3 cmPaís de origen :
USACódigo hs :
8537101190Descripción :
3300 XL 8 mm Probe Housing
|
Product Enquiry |
Contact Details |
|
Model Number |
21000-16-10-00-256-13-02 |
|
Sales Contact |
Frida |
|
Fast Contact |
|
|
Email Request |
|
|
Please Provide |
Required quantity and destination country |
Product Overview
The Bently Nevada 21000-16-10-00-256-13-02 is an aluminum proximity probe housing assembly for externally mounting a 3300 XL 8 mm reverse-mount probe. It combines a 1.0 m probe cable, no standoff adapter, a 25.6 in probe-penetration configuration, fittings code 13, and a 3/4-14 NPT mounting thread. Because the combined standoff and penetration length exceeds 12 inches, Bently Nevada specifies additional sleeve support near the probe to limit resonance.
Model Number Breakdown
Complete Model: 21000-16-10-00-256-13-02
21000 = Aluminum proximity probe housing assembly.
16 = 3300 XL 8 mm probe.
10 = 1.0 m (39 in) probe cable.
00 = No standoff adapter.
256 = 25.6 in probe penetration.
13 = Fittings option code shown in the supplied complete model.
02 = 3/4-14 NPT mounting thread.
Technical Information
Parameter
Value
Manufacturer
Bently Nevada
Ordering Number
21000-16-10-00-256-13-02
Product Type
Proximity Probe Housing Assembly
Housing Body
Aluminum
Probe Sleeve
304 stainless steel
Probe Type
3300 XL 8 mm reverse-mount probe
Probe Cable Length
1.0 m (39 in)
Standoff Adapter
None
Probe Penetration
25.6 in (approx. 650 mm)
Fittings Code
13; not defined in current public Rev. AC table
Mounting Thread
3/4-14 NPT
Penetration Adjustment Range
13 mm (±0.5 in)
Sleeve Support
Required near the probe because penetration exceeds 12 in
Probe Operating and Storage Temperature
-51°C to +177°C
Pressure-Seal Caution
Exposure below -34°C may cause premature seal failure
Installation Standard
API 670 external probe-housing design
Industries Served
• Oil and gas production and processing
• Power generation facilities
• Petroleum refining operations
• Chemical and petrochemical plants
• Industrial rotating-machinery maintenance
Application Areas
-External mounting of a 3300 XL 8 mm proximity probe
-Long-penetration probe points through machine casings or structural barriers
-Shaft radial-vibration and position monitoring
-Turbine, compressor, pump and motor bearing installations
-Monitoring points requiring a 3/4-14 NPT mounting connection
Key Highlights
Key Highlight
Details
25.6 in penetration
Provides a long probe reach for deep machine-casing installations.
3300 XL 8 mm probe
Option 16 selects the established 8 mm reverse-mount proximity probe.
1.0 m probe cable
Option 10 supplies a 1.0 m cable for connection to the matching transducer system.
Aluminum housing
Uses an aluminum body with a 304 stainless steel probe sleeve.
Sleeve-support requirement
The long penetration requires support near the probe to control sleeve resonance.
3/4-14 NPT mounting
Final option 02 provides the documented NPT machine-mounting interface.
Fittings verification point
Code 13 is not decoded in the current public manual and should be checked against the original factory configuration.
Frequently Asked Questions
1. Does code 256 mean a 256 mm probe penetration?
No. The official DDD field is ordered in increments of 0.1 inch, so 256 represents a 25.6 in probe penetration.
2. Does this configuration require additional sleeve support?
Yes. The 25.6 in penetration exceeds the 12 in threshold at which Bently Nevada requires sleeve support near the probe.
3. What does fittings code 13 specify?
The current public Rev. AC ordering table does not define code 13. Its exact legacy or special configuration should be confirmed from the original equipment record or nameplate.
