BENTLY NEVADA · GENERAL-PURPOSE ACCELEROMETER

200150-09-CN

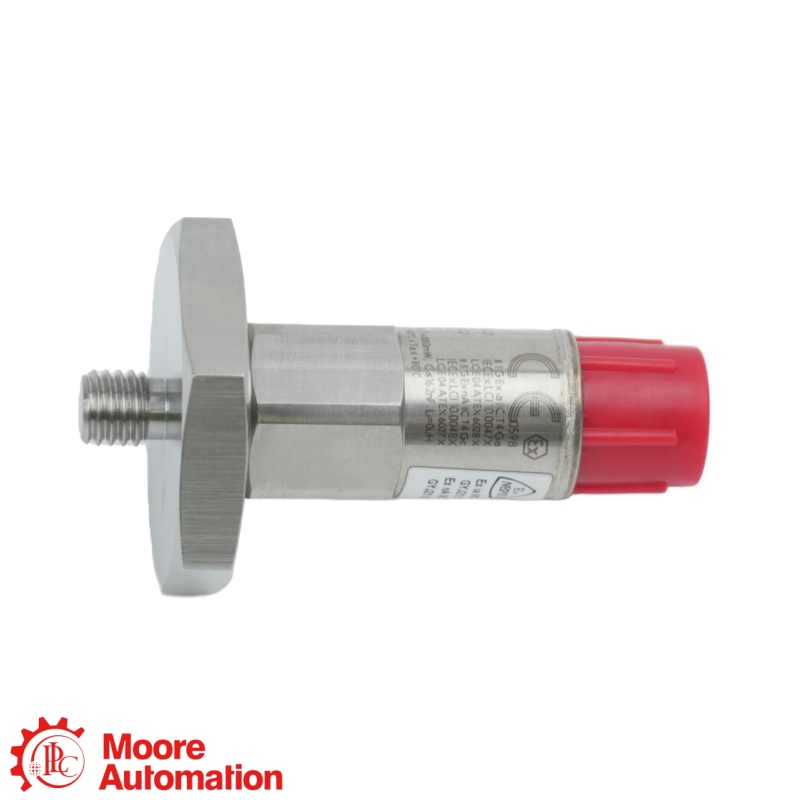

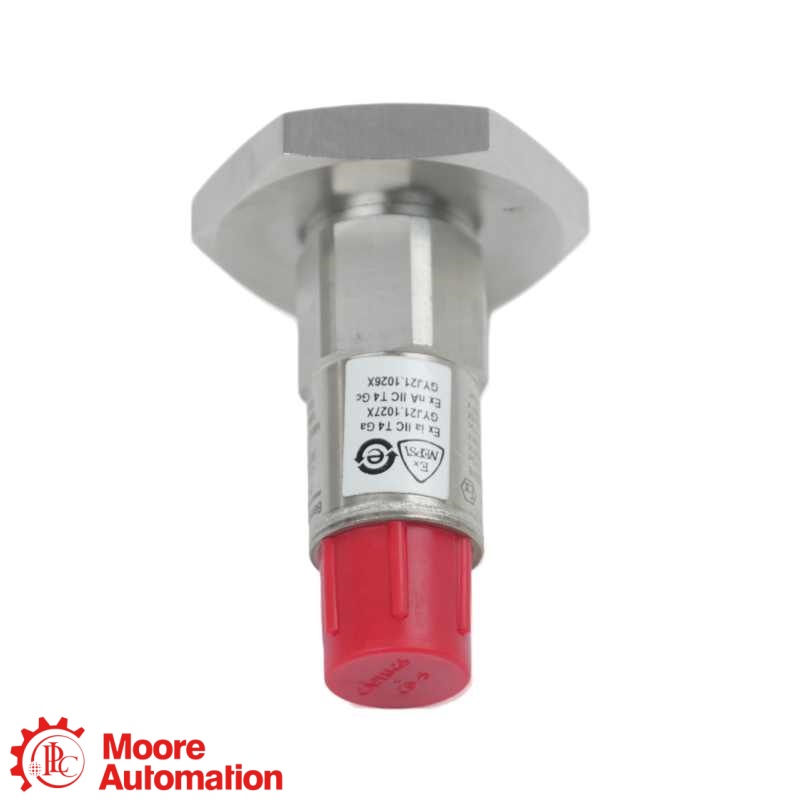

The 200150-09-CN is a Bently Nevada general-purpose accelerometer for Trendmaster 2000 or Trendmaster Pro applications. Official datasheet 164986 identifies mounting option 09 as a 3/8-24 to 3/4 NPT, 1-1/4 inch hex stud; confirm the CN suffix and installed monitoring channel before ordering.

SENSITIVITY200150-09-CN
OFFICIAL CLASS±25 g
FREQUENCY RANGE10 to 1000 Hz
MOUNTING OPTION09 · 3/4 NPT stud
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● GENERAL-PURPOSE ACCELEROMETER
TRENDMASTER VIBRATION MONITORING

200150-09-CN

BASE MODEL 200150

COMPLETE ORDER NUMBER REQUIRED

MODULE ROLE
200150-09-CN is a general-purpose case-mounted accelerometer that converts acceleration into a differential voltage signal for Trendmaster 2000 or Trendmaster Pro monitoring. The compatible channel, cable and mounting arrangement must match the installed system.
CONFIGURATION NOTE
For 200150-09-CN, uses the officially defined 09 mounting-stud option. Baker Hughes datasheet 164986 identifies 09 as a 3/8-24 to 3/4 NPT, 1-1/4 inch hex stud; the additional CN suffix must be confirmed from the exact label and order record.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 200150-09-CN reference should be verified

200150
Accelerometer familyGeneral-purpose Trendmaster accelerometer
09
Mounting stud option3/8-24 to 3/4 NPT · 1-1/4 inch hex stud
CN
Additional suffixVerify from the exact label and manufacturer order record
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Baker Hughes Datasheet 164986 ↗
200150 · GENERAL-PURPOSE ACCELEROMETER

Engineering data at a glance

Verify the monitoring channel, mounting and suffix before replacement.

SENSITIVITY200150-09-CN
OFFICIAL CLASS±245 m/s² (±25 g)
FREQUENCY RANGE10 to 1000 Hz
EXCITATION4.7 to 5.5 Vdc
Baker Hughes datasheet 164986 Rev. Y covers the 200150 accelerometer and its official performance and mounting options; confirm the additional CN suffix from the exact product label.
General Information ＋
BrandBently Nevada
Part number200150-09-CN
Product type±245 m/s² (±25 g)
Product familyTrendmaster 2000 / Trendmaster Pro
ManufacturerBently Nevada / Baker Hughes
ORDER NUMBER CHECK ＋
Base reference200150
Complete model200150-09-CN
Ordered fields09 · CN
INSTALLATION VERIFICATION ＋
Sensitivity10.2 mV/(m/s²) (100 mV/g), ±12% at 80 Hz
Measurement range±245 m/s² (±25 g)
Frequency range10 to 1000 Hz, referenced to 80 Hz, ±10%
Physical data17.5 × 45.7 mm; 58 g typical; 316L stainless-steel housing
Mounting3/8-24 female transducer thread; option 09 uses a 3/4 NPT hex stud
DOCUMENTATION & ORDER CHECK ＋
Official referenceBaker Hughes datasheet 164986 Rev. Y covers the 200150 accelerometer and its official performance and mounting options; confirm the additional CN suffix from the exact product label.
Quotation checkConfirm the complete model, 09 mounting stud, CN suffix, compatible cable and monitoring channel
FAQ

Questions Buyers Ask Most

What is 200150-09-CN used for?＋
200150-09-CN is a Bently Nevada general-purpose accelerometer for Trendmaster 2000 or Trendmaster Pro vibration monitoring. It converts machine-casing acceleration into a differential voltage signal and must be paired with the documented monitoring channel and cable.
What sensitivity and measurement range apply to 200150-09-CN ?＋
200150-09-CN uses the 200150 base-model specification of 10.2 mV/(m/s²), or 100 mV/g, at 80 Hz with ±12% tolerance. Its measurement range is ±245 m/s² (±25 g), subject to the compatible monitoring system.
What frequency range does 200150-09-CN support?＋
200150-09-CN uses the official 200150 frequency range of 10 to 1000 Hz, referenced to 80 Hz with ±10% tolerance. Channel configuration and mounting quality influence the usable system response.
What does mounting option 09 mean for 200150-09-CN ?＋
200150-09-CN uses option 09, defined by Baker Hughes as a 3/8-24 to 3/4 NPT, 1-1/4 inch hex stud. Confirm the machine mounting point, thread engagement and installation torque before fitting the accelerometer.
Which systems are compatible with 200150-09-CN ?＋
200150-09-CN is intended for general Trendmaster 2000 or Trendmaster Pro acceleration-to-velocity applications. Confirm the selected ProTIM or monitoring channel, interface cable, excitation and project configuration before connection.
What must be checked before installing 200150-09-CN ?＋
200150-09-CN requires a rigid bearing-housing or machine-casing location, clean mounting surface, correct option-09 stud, proper torque, connector sealing and cable routing. Improper mounting can reduce amplitude or frequency response and generate false signals.
Can 200155 or 200157 directly replace 200150-09-CN ?＋
200150-09-CN should not be replaced by 200155 or 200157 without engineering review. Baker Hughes warns that using those variants in place of 200150 may produce faulty readings because their frequency behavior and applications differ.
What ordering information is required for 200150-09-CN ?＋
200150-09-CN should be ordered using the complete 200150-09-CN code, nameplate photographs, mounting location, compatible cable and monitor channel, quantity and approval requirements. The CN suffix should be verified against the manufacturer order record.
CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Manuals and Official References for 200150-09-CN

Official Baker Hughes 200150 accelerometer data and ordering information for 200150-09-CN.

General-Purpose Accelerometer

Baker Hughes 200150, 200155 and 200157 Accelerometers Datasheet 164986 Rev. Y. Confirm the additional CN suffix from the exact label and order record.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, nameplate photos and your technical or purchasing question.

Baker Hughes 200150, 200155 and 200157 Accelerometers Datasheet 164986 Rev. Y. Confirm the additional CN suffix from the exact label and order record.
BENTLY NEVADA ACCELEROMETER SYSTEM RELATIONSHIP

How 200150-09-CN fits into a Trendmaster vibration-monitoring channel

Bently Nevada is the brand; the Trendmaster 2000 or Trendmaster Pro is the measurement family; and 200150-09-CN is the complete accelerometer reference; mounting option 09 is officially defined, while the CN suffix requires order-record verification.

Bently Nevada · BRAND
Trendmaster SystemPRODUCT FAMILY · MEASUREMENT
SENSING COMPONENT

General-Purpose Accelerometer

The accelerometer converts machine-casing acceleration into a differential voltage signal.

INTERCONNECTION

Extension Cable

Use the compatible accelerometer interface cable and preserve connector sealing and routing.

SIGNAL CONDITIONING

ProTIM / Monitor

Use the documented acceleration-to-velocity channel and confirm excitation and configuration.

System relationship: the complete order code, option-09 stud, cable, channel type, excitation and approval conditions must match.
APPLICATION AREAS

Application mind map for the 200150 accelerometer

Rotating MachineryGeneral-purpose machine-casing vibration measurement
Verified InstallationConfirm rigid mounting, stud, torque, connector and cable routing
APPLICATION CENTER200150 AccelerometerCase-mounted acceleration sensing
Fault DetectionSupport detection of vibration, runout and displacement changes
System ReplacementRestore the documented accelerometer, cable and monitoring-channel compatibility
