 /Bently Nevada 190501-02-00 Velomitor CT 3/8-24 to 1/2-20 Stud Transducer

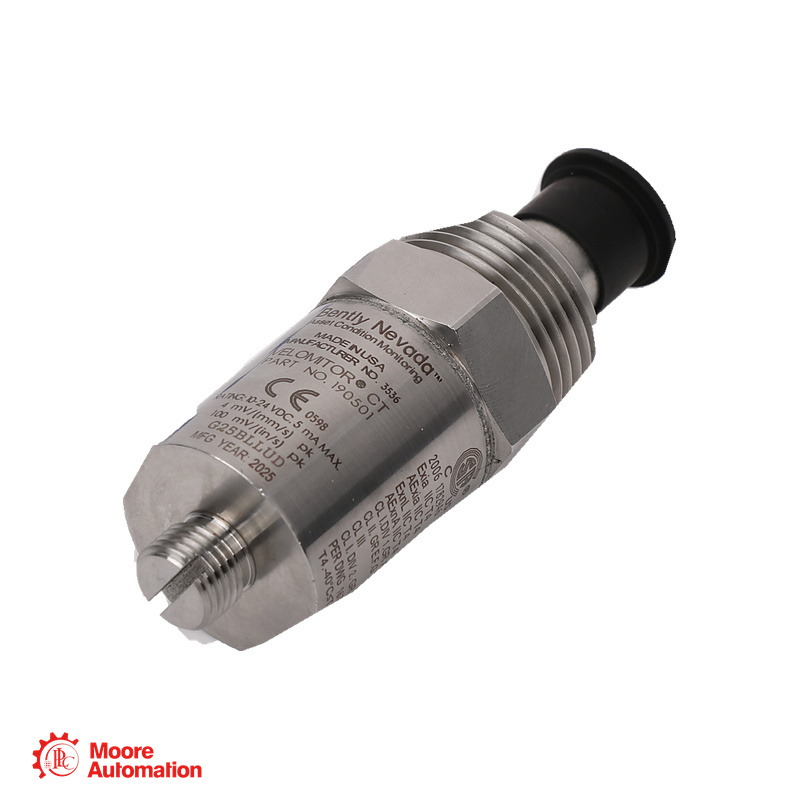

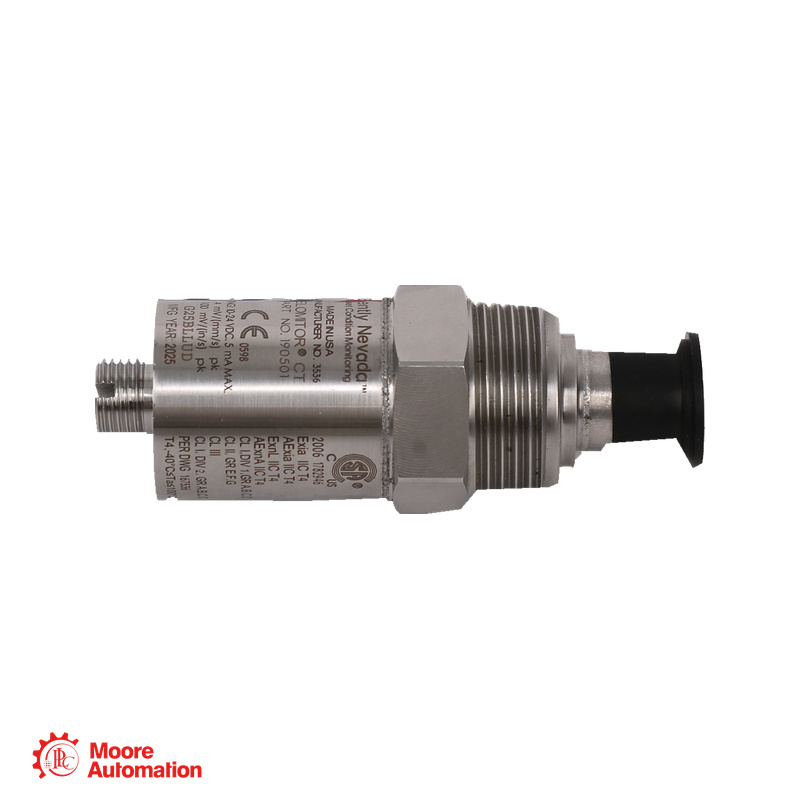

Bently Nevada 190501-02-00 Velomitor CT 3/8-24 to 1/2-20 Stud Transducer
Bently Nevada 190501-02-00 Velomitor CT 3/8-24 to 1/2-20 Stud Transducer
Bently Nevada 190501-02-00 Velomitor CT 3/8-24 to 1/2-20 Stud Transducer

Bently Nevada 190501-02-00 Velomitor CT 3/8-24 to 1/2-20 Stud Transducer

190501 VELOMITOR CT VELOCITY TRANSDUCER

190501-02-00

190501-02-00 — a Bently Nevada 190501 Velomitor CT velocity transducer for low-frequency casing vibration measurement on cooling-tower and air-cooled heat-exchanger fans.

SENSOR190501 series
SENSITIVITY100 mV/in/s
MOUNTING02 stud option
CONNECTION2-pin MIL-C-5015
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 190501 VELOMITOR CT TRANSDUCER
190501 VELOMITOR CT VELOCITY SENSOR

190501-02-00

Low-frequency velocity sensing · 02 mounting option

190501 Velomitor CT Velocity Transducer

VELOCITY TRANSDUCER IDENTITY
190501-02-00 — A 190501 Velomitor CT transducer for casing vibration velocity measurement on cooling-tower and air-cooled heat-exchanger fans.
CONFIGURATION NOTE
190501 identifies the Velomitor CT family; 02 specifies the 3/8-24 to 1/2-20 stud; 00 specifies the MIL-C-5015 connection interface.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

190501
Product familyVelomitor CT velocity transducer
02
Mounting option3/8-24 to 1/2-20 stud
00
Connection optionMIL-C-5015 interface
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
190501 VELOMITOR CT TRANSDUCER

Engineering data at a glance

Click “+” to expand more specifications.

SENSOR190501 series
SENSITIVITY100 mV/in/s
FREQUENCY1.5 Hz–1 kHz
MOUNTING02 stud option
190501 family electrical data and the selected mounting hardware.
Configuration note 190501 identifies the Velomitor CT family; 02 selects the 3/8-24 to 1/2-20 stud; 00 specifies a MIL-C-5015 connection interface.
General Information −
BrandBently Nevada
Supplied reference190501-02-00
Product typeVelomitor CT velocity transducer
Product family190501 Velomitor CT
Mounting hardware3/8-24 to 1/2-20 stud
Sensitivity100 mV/in/s ±5%
Signal and Connection ＋
Frequency response1.5 Hz–1.0 kHz ±3 dB
Connection interface2-pin MIL-C-5015
Velocity range63.5 mm/s pk
Environmental and Mechanical ＋
Operating temperature-40 to +85 °C
Housing material316L stainless steel
Top connector2-pin MIL-C-5015
Monitoring Role ＋
The 190501 Velomitor CT senses casing vibration velocity on cooling-tower and air-cooled heat-exchanger fans. Install on the bearing housing or machine casing using the selected mounting stud.
Source: Baker Hughes 190501 Velomitor CT Transducer Datasheet 141636 Rev. AF (190501 family data).
FAQ

Questions Buyers Ask Most

What mounting stud is specified for 190501-02-00?＋

190501-02-00 uses mounting option 02, which specifies a 3/8-24 to 1/2-20 stud for the 190501 Velomitor CT transducer.

Where is 190501-02-00 used for cooling-tower vibration monitoring?＋

190501-02-00 measures low-frequency casing vibration velocity on cooling-tower and air-cooled heat-exchanger fans. Place the sensor on the bearing housing or machine casing so rotor vibration reaches the measurement point.

Which connection interface is specified for 190501-02-00?＋

190501-02-00 has connection option 00 in the supplied reference. The 190501 ordering table defines 00 as the MIL-C-5015 connection interface; the datasheet specifies a top 2-pin connector.

What installation checks matter for 190501-02-00?＋

190501-02-00 should be mounted on the bearing housing or machine casing with the 3/8-24 to 1/2-20 stud. The 190501 datasheet lists mounting torque of 4.5 ±0.6 N·m; verify the surface and matching cable connector.

What information should accompany a quotation for 190501-02-00?＋

190501-02-00 should be quoted using the exact supplied part-number string, required quantity, mounting interface, connection cable and any site-specific approval documentation.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the exact 190501-02-00 reference, mounting surface and stud, cable connection, quantity and site approval requirements for confirmation.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
190501-02-00

The Baker Hughes 190501 datasheet documents the Velomitor CT transducer family and its ordering fields. No manufacturer-hosted PDF was confirmed for this exact supplied identifier.

Official datasheet status

No exact 190501-02-00 manufacturer PDF was confirmed in the public documentation. The Baker Hughes 190501 Velomitor CT datasheet supports the verified family and mounting facts shown on this page. Contact Product Specialist Frida for the exact document and ordering check.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

The Baker Hughes 190501 Velomitor CT Transducer Datasheet (141636 Rev. AF) is a family reference; confirm documentation for the supplied complete identifier.

VELOCITY TRANSDUCER SIGNAL RELATIONSHIP

How 190501-02-00 Fits into Cooling-Tower Vibration Monitoring

Bently Nevada is the manufacturer. 190501-02-00 is a 190501 Velomitor CT velocity transducer. It measures low-frequency casing vibration on cooling-tower or air-cooled heat-exchanger fans and sends a dynamic velocity signal to a compatible monitor.

Bently Nevada · BRAND
Bently Nevada 190501 SeriesPRODUCT FAMILY · VELOCITY TRANSDUCER
MACHINE INPUT

Machine vibration

The mounted Velomitor CT senses casing vibration at the fan bearing housing or machine casing.

SENSOR OUTPUT

Velocity Signal

The 190501 sensor provides a velocity-proportional output at its 2-pin top connector.

MONITOR INPUT

Compatible Velocity Monitor

Use a compatible monitoring input that supports the 190501 sensitivity and operating frequency range.

System relationship: machine casing vibration is sensed by the 190501 Velomitor CT and passed as a velocity-proportional signal to a compatible monitor.
APPLICATION AREAS

Application roles for 190501-02-00

Cooling-Tower Fan TrendingThe 190501 Velomitor CT is designed for low-frequency casing vibration velocity measurement on cooling-tower fan assemblies.
Air-Cooled Exchanger FansThe 190501 sensor also measures casing vibration on air-cooled heat-exchanger fan assemblies.
APPLICATION CENTER 190501-02-00 Velomitor CT velocity transducer
Fan Motor and ReducerThe sensor can detect vibration frequencies generated by the fan motor and speed reducer as well as fan vibration.
Maintenance PlanningUse recorded casing vibration trends to support cooling-tower machinery maintenance decisions.
