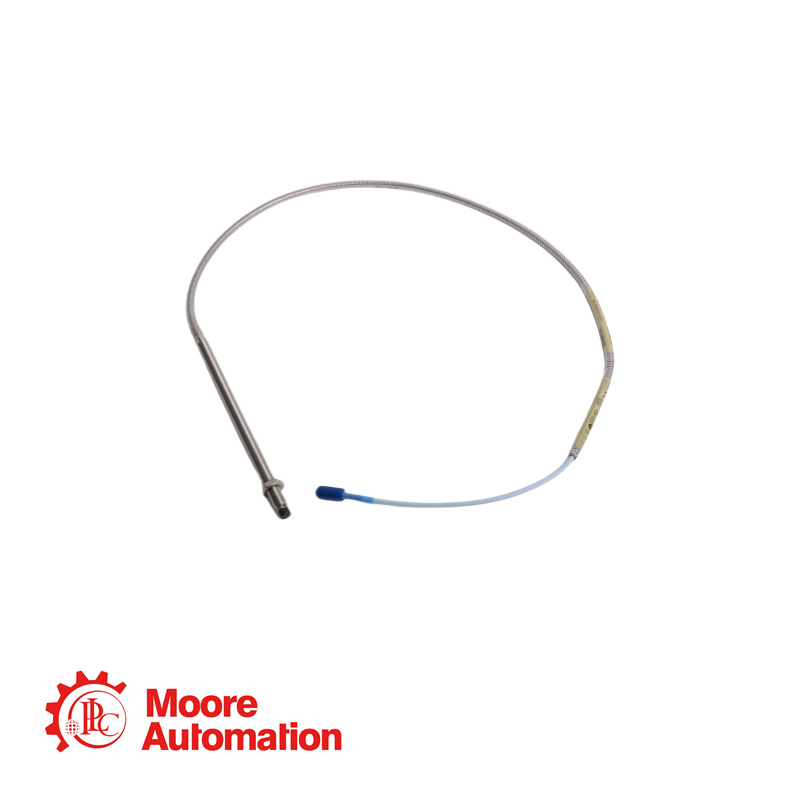

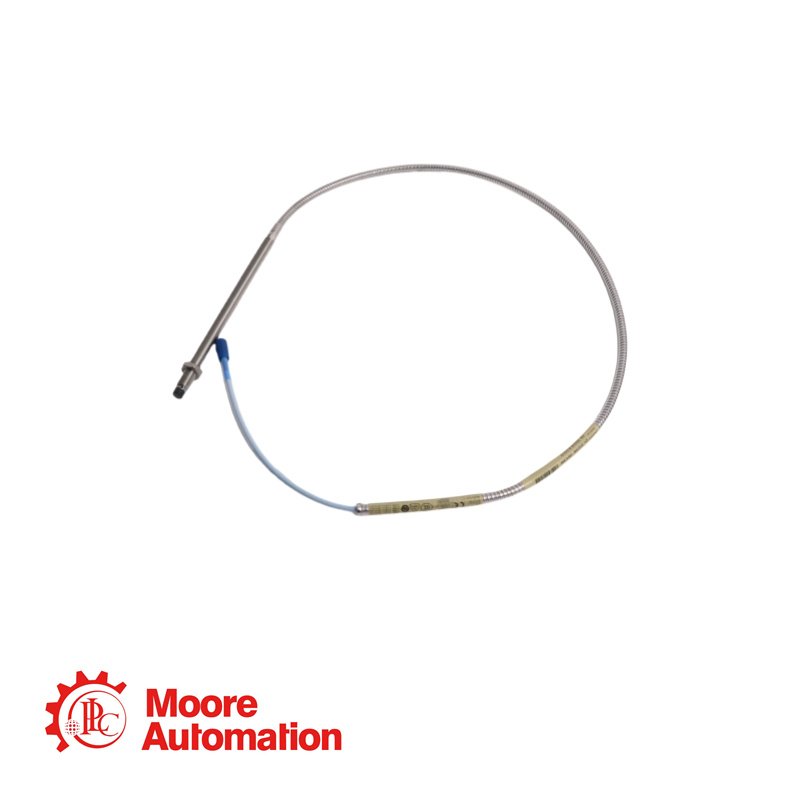

Bently 330104-00-18-10-01-00 3300 XL 8 mm Proximity Probes

A: Unthreaded Length Option

Order in increments of 10 mm Length configurations: Maximum unthreaded length: 230 mm Minimum unthreaded length: 0 mm Example: 0 6 = 60 mm

B: Overall Case Length Option

Order in increments of 10 mm Metric thread configurations: Maximum case length: 250 mm Minimum case length: 20 mm Example: 0 6 = 60 mm

C: Total Length Option

10

1.0 meter (3.3 feet)

D: Connector and Cable-Type Option

01

Miniature coaxial ClickLoc connector with connector protector, standard cable

E: Agency Approval Option

00

Not required

Standard Probe

-52°C to +177°C (-62°F to +350°F)

Output resistance

50 Ω

Extension cable capacitance

69.9 pF/m (21.3 pF/ft) typical

Field Wiring

0.2 to 1.5 mm2 (16 to 24 AWG)  [0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules].  Recommend using threeconductor shielded triad cable.  Maximum length of 305 metres

Deviation from best fit straight line (DSL)

Less than ±0.06 mm (±2.3 mils).

Frequency Response

0 to 10 kHz: +0, -3 dB typical, with up to 305 metres (1000 feet) of field wiring.

Extended Temperature Range Probe

-52°C to +218°C (-62°F to +425°F) for the probe tip; - 51°C to +260°C (-60°F to +500°F) for the probe cable and connector.
