Marca :
BentlyNúmero de parte :
190501-00-00-05Peso :
0.38KGDimensión :
3.6x3.1x10cmPaís de origen :
USACódigo hs :
8537101190Descripción :

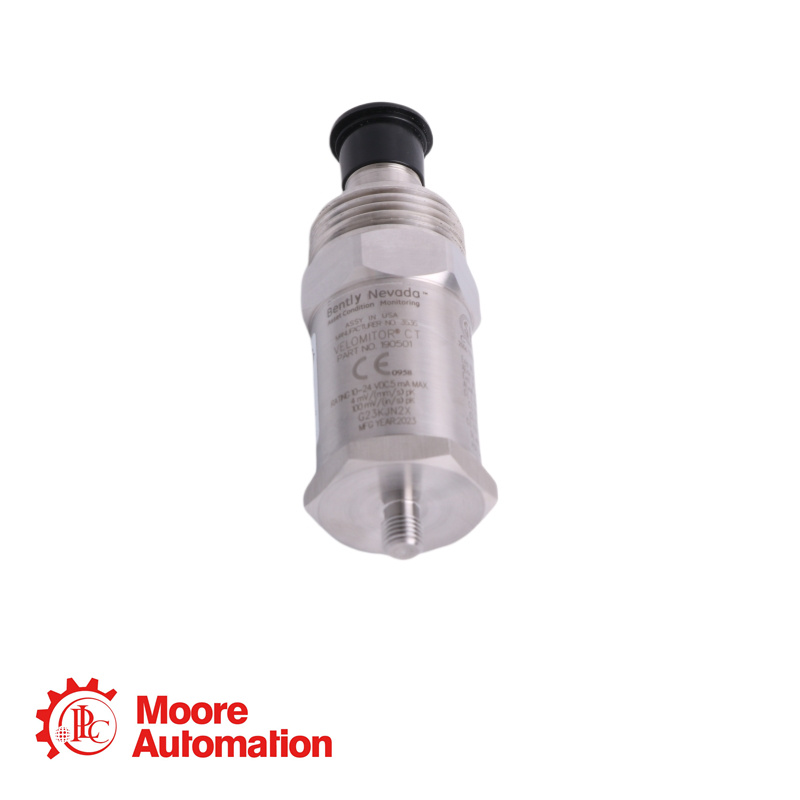

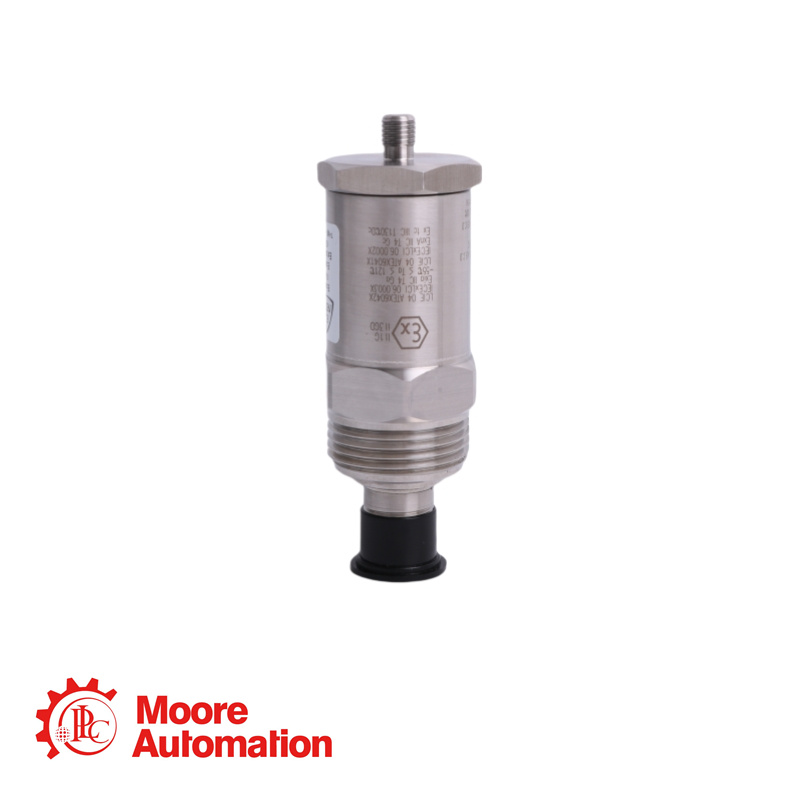

Velomitor CT Transducer
190501 - AA - BB - CC
|
A: Mounting Hardware Option |
|
|
00 |
No stud |
|
B: Connection Option |
|
|
00 |
MIL-C-5015 connection interface |
|
C: Agency Approval Option |
|
|
05 |
|
Describtion
The Velomitor CT Transducer 190501 can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical).The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.
|
Information |
|
|
Operating Temperature:-40 °C to +85 °C (-40 °F to +185°F). Storage Temperature:-40 °C to +100 °C (-40 °F to +212°F). Shock Limit:5000 g pk, maximum. Humidity Limit:100% condensing,non-submerged.
|
Magnetic Field Susceptibility:<0.0068 mm/s/gauss (0.268mil/s/gauss) @ 50 gauss, 50-60Hz Frequency Response:3.0 Hz to 900 Hz (180 to 54,000cpm) ±1.0 dB,1.5 Hz to 1.0 kHz (90 to 60,000cpm) ±3.0 dB
|
