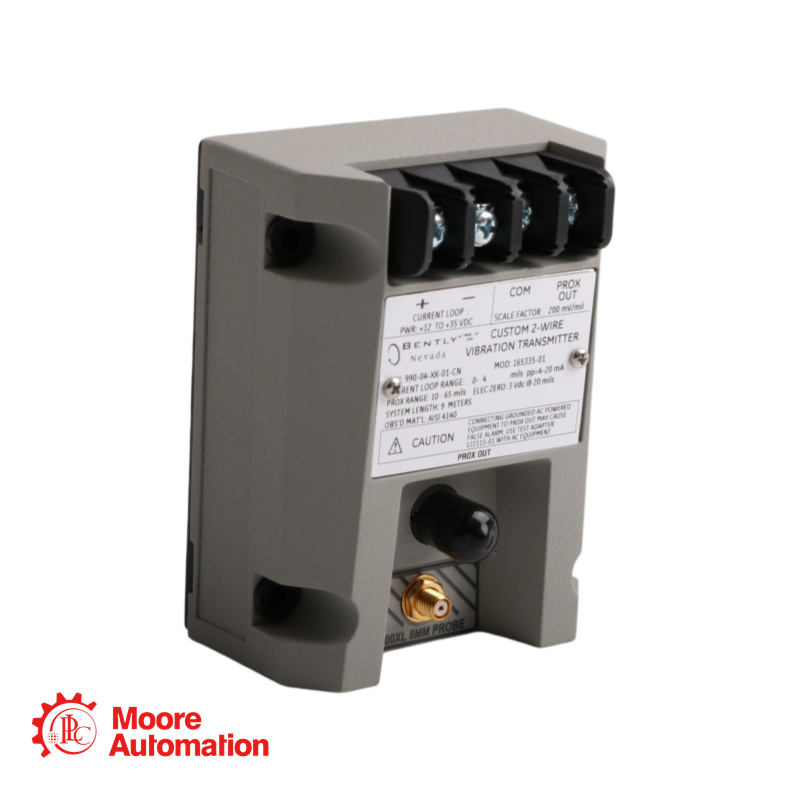

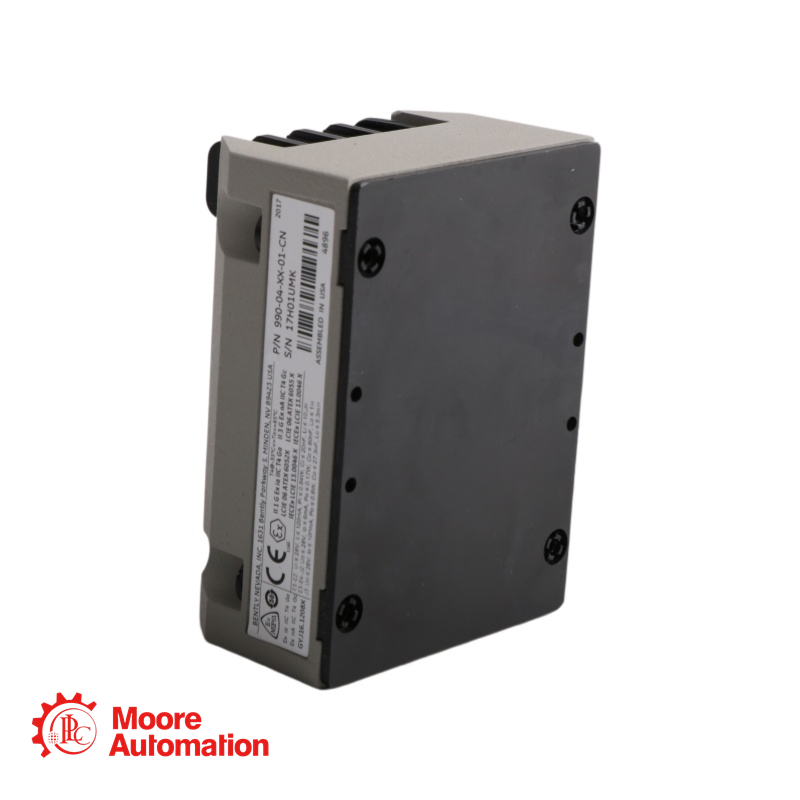

990-04-70-03-00 Bently Nevada Vibration Transmitter

>>>Inquire 990-04-70-03-00

Email: sales5@mooreplc.com

Phone/ Whatsapp: +86 15359408275

>>>990-04-70-03-00

Part Number: 990-04-70-03-00
Product: Vibration Transmitter

>>>Specification - 990-04-70-03-00

Input:3300 NSv proximity probe + matching extension cable
Output Signal:4-20 mA (two-wire, loop-powered), proportional to peak-to-peak vibration
Full-scale Range (this config):0-4 mils pp (0-100 μm pp)
Loop Accuracy:Within±1.5% of full-scale range
Power Required:+12 to +35 Vdc at transmitter terminal
Maximum Loop Resistance:1,000 Ω at 35 Vdc
Current Limiting:23 mA typical
NOT OK / Signal Defeat:Output drops to <3.6 mA within 100 μs of fault; restores 2-3 sec after fault clears
Power-up Inhibit:Output stays <3.6 mA for 2-3 seconds after power applied
Prox Out Linear Range:1.4 mm (55 mils)
Prox Out Scale Factor:7.87 mV/μm (200 mV/mil) ±6.5% typical
Frequency Response:5 Hz to 6,000 Hz (+0, -3 dB)
Minimum Target Size:9.5 mm (0.375 in) diameter
Transmitter Operating Temp:-35°C to +85°C (-31°F to +185°F)
Probe Operating Temp:-52°C to +177°C (-62°F to +351°F)

>>> FAQ - 990-04-70-03-00

1. What is the 990 Vibration Transmitter used for?
It is intended for OEMs of centrifugal air compressors, small pumps, motors, and fans who want a simple 4-20 mA vibration signal for their control system (PLC/DCS). It is not a replacement for a full continuous monitoring system like System 1.
2. Does the 990-04-70-03-00 include the probe and extension cable?
No. You must order the 3300 NSv probe and 3300 NSv extension cable separately. The 990 transmitter accepts input from these components.
3. What is the full-scale vibration range for this configuration?
Option AA = 04 means 0 to 4 mils peak-to-peak (0 to 100 μm pp). Other ranges available: 0-5 mils, 0-8 mils, 0-10 mils.
4. What is the total system length?
Option BB = 70 means 7.0 meters (23.0 feet) total system length (probe + extension cable). The 5.0 meter option is also available.
