Description of 3500/05-02-04-01-00-00

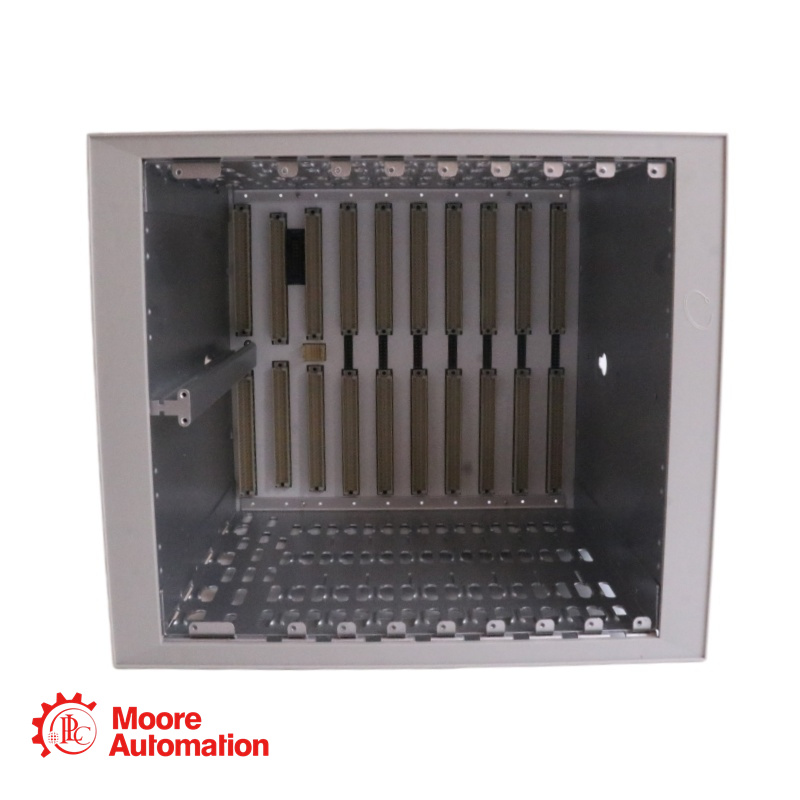

The standard 3500 Rack is available in 19” EIA rail-mount, panel-cutout-mount, and bulkhead-mount versions.
The rack provides slots for two Power Supplies and a TDI in the left-most rack positions that are reserved exclusively for these modules. The remaining 14 slots in the rack can accommodate any combination of monitor, display, relay, Keyphasor module, and communication gateway modules.

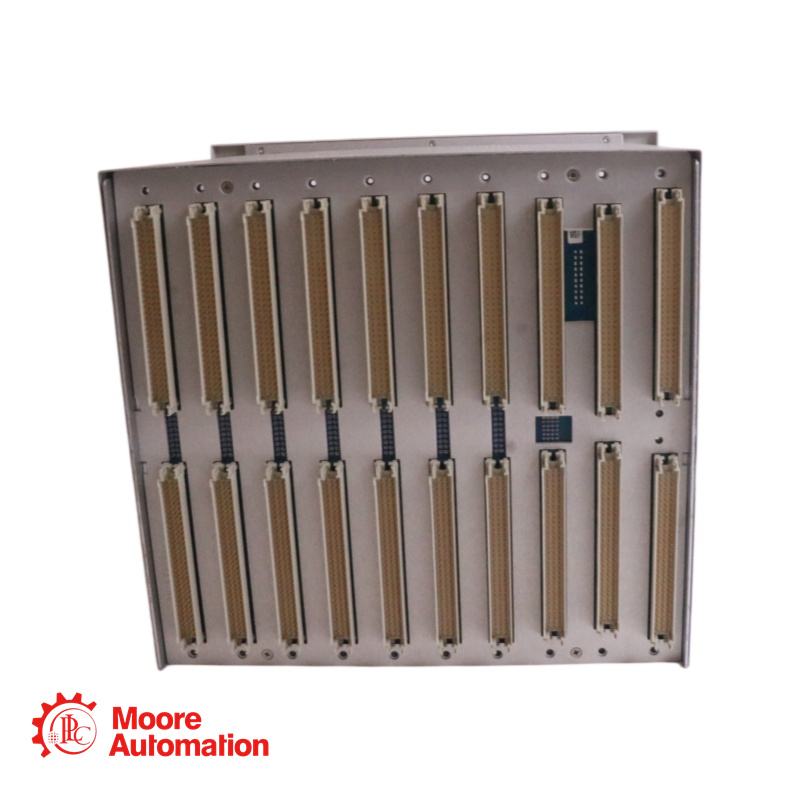

All modules plug into the rack’s backplane and consist of a main module and an associated I/O module. The I/O module installs at the rear of the rack for panel-mount systems, and above the main module for bulkhead-mount systems. Standard rack depth is 349 mm (13.75 inches), while bulkhead mount rack depth is 267 mm (10.5 inches). NEMA 4 and 4X weatherproof housings are available when required for environmental protection or when purge air is used.

Parameter

A: Rack Size 02 12-inch Mini-Rack (7 available module slots)
B: Mounting Options 04 Panel Mount Option, Mini-Rack
C: Agency Approval 01 CSA/NRTL/C (Class I, Division 2)
D: Reserved 00 None
E: Reserved 00 None
F: European Compliance 00 None (CE not selected)

Rack type :Mini-rack (12-inch)
Module slots:7 available slots (power supplies and rack interface module occupy far-left positions)
Mounting format:Panel mount (mounts to rectangular cutout in panel, secured with clamps)
Access for wiring:From the rear of the rack

Example Configuration

Slot Module Explanation

Slot 1 3500/15 Power Module Single power supply

Slot 2 3500/20 Rack Interface Module Required

Slot 3 3500/42 4-channel Vibration Monitor Monitor radial vibration (2 bearings, 2 directions each)

Slot 4 3500/40 Proximitor Monitor Monitor axial displacement

Slot 5 3500/50 Speed Monitor Monitor speed/phasing

FAQ

How are the rack slots allocated?
A: The following order must be followed (left to right):
Power supplies (must occupy far-left positions; 1 or 2 for redundancy)
3500/20 Rack Interface Module (RIM) (required)
Monitoring modules (remaining slots; approximately 5 slots available on Mini-rack)

What monitoring modules can be installed in the Mini-rack?
A: All standard 3500 series monitoring modules can be installed, including but not limited to:
3500/40 Proximitor Monitor (displacement/vibration)
3500/42 4-Channel Displacement/Velocity/Acceleration Monitor
3500/45 4-Channel Velocity/Acceleration Monitor (seismic)
3500/50 Tachometer Monitor
3500/53 Overspeed Monitor (3-channel, voting)
3500/60/61 Temperature Monitor
3500/62 Process Variable Monitor (4-20mA)
3500/64 Dynamic Pressure Monitor
3500/72 Rod Position Monitor (reciprocating compressor)
3500/77 Cylinder Pressure Monitor (reciprocating compressor)
3500/92 Communications Gateway Module

Is the 3500/93 System Display compatible with the Mini-rack?
A: No. The datasheet explicitly states that the 3500/93 System Display A01 Face Mount option is incompatible with the 3500/05 Mini-rack.
