Marca :
Bently NevadaNúmero de parte :
330904-00-12-05-02-05Peso :
0.1kgDimensión :
1.5x1.3x116cmPaís de origen :
USACódigo hs :
8537101190Descripción :
NSv Proximity Probe
|
330904-00-12-05-02-05's Good Price? |
Phone/Whatsapp: +86 15359408275
Email: sales5@mooreplc.com
|

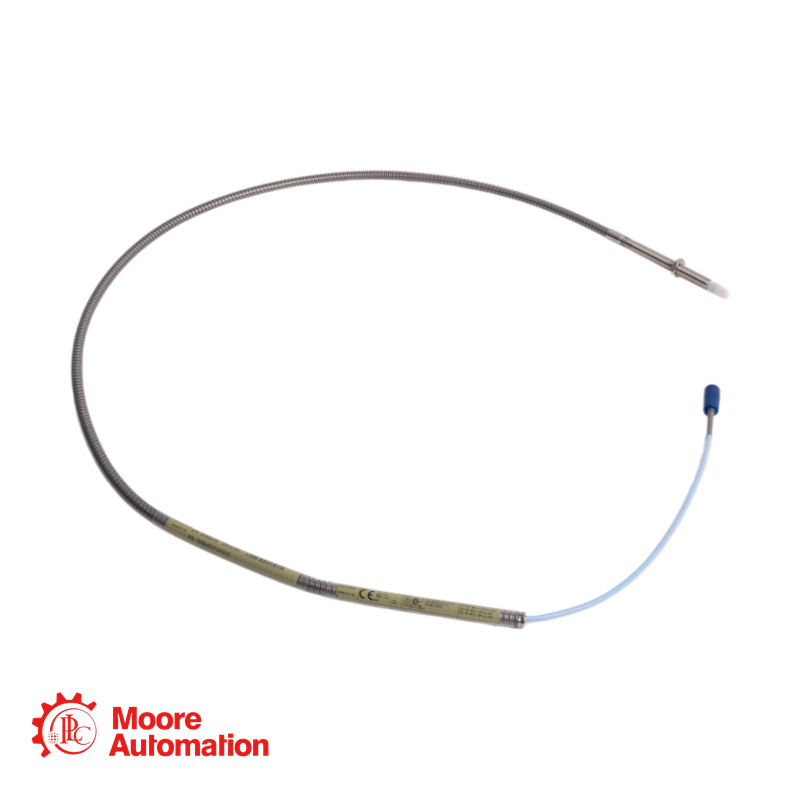

330904-00-12-05-02-05 NSv Proximity Probe Overview |
The 330904-00-12-05-02-05 3300 XL NSv Proximity Transducer System is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements where counter bore, sideview, or rearview restrictions limit the use of standard 5 mm and 8 mm transducer systems. It is also ideal for small target applications such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
●3300 NSv Proximity Probe – Standard mount
●M8 x 1 thread, with armor
●For use with 5‑meter or 7‑meter Proximitor sensor systems
●Standard cable with ClickLoc connector (no connector protector)
●CSA, ATEX, IECEx hazardous area approvals
|
330904-00-12-05-02-05 NSv Proximity Probe Specifications |
|
Suffix Description |
||
|
Suffix |
Option |
Description |
|
330904 |
Base model |
3300 NSv Probe, M8 x 1 thread, with armor |
|
00 |
A: Unthreaded length |
0 mm |
|
12 |
B: Overall case length |
12 mm |
|
05 |
C: Total length |
5.0 meters (16.4 feet) |
|
02 |
D: Connector and cable type |
Miniature coaxial ClickLoc connector (no connector protector), standard cable |
|
05 |
E: Agency approval |
Multiple approvals (CSA, ATEX, IECEx) |
330904-00-12-05-02-05 NSv Proximity Probe
FAQ
Q: What is the 330904-00-12-05-02-05?
A: This is a Bently Nevada 3300 NSv proximity probe with M8 x 1 metric thread and stainless steel armor. It has 0 mm unthreaded length, 12 mm case length, and 5.0 meter total cable length. The probe uses a standard ClickLoc connector (no connector protector) and carries CSA, ATEX, and IECEx hazardous area approvals (suffix 05).
Q: What are the linear range and recommended gap setting?
A: The linear range is 1.5 mm (60 mils) from approximately 0.25 mm to 1.75 mm (10 to 70 mils), with output voltage ranging from about -1 to -13 Vdc. The recommended gap setting is 1.0 mm (40 mils). The Incremental Scale Factor (ISF) is 7.87 V/mm (200 mV/mil) with accuracy of +12.5%/-20% over 0 to 45 °C.
|
