Description - Proximity Transducer

330880-28-15-027-00-02

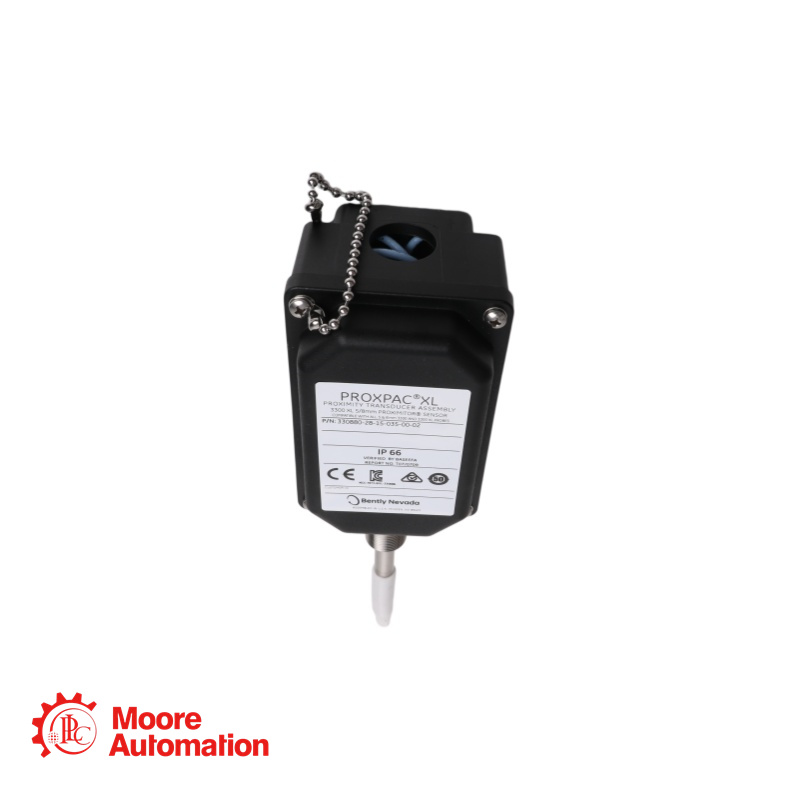

This self-contained proximity probe system integrates a 3300 XL 8 mm probe with a built-in Proximitor sensor inside a rugged, IP66-rated PPS housing. Part number 330880-28-15-027-00-02 is specifically configured for multi-approval (hazardous area) applications, includes a 1.5-inch standoff adapter, and provides 2.7 inches of probe penetration without additional fittings or mounting threads. It eliminates the need for extension cables and separate Proximitor housings, making it ideal for severe environments such as turbines, compressors, and large rotating machinery with shorter casing wall thickness.

Parameter - Proximity Transducer

330880-28-15-027-00-02

Part Number:330880-28-15-027-00-02
System Type:PROXPAC XL, self-contained
Probe & Approvals Option:28 = 3300 XL 8 mm probe with Multiple Approvals (cNRTLus, ATEX, IECEx)
Standoff Adapter (B Dim):15 = 1.5 inch (38 mm)
Probe Penetration (C Dim):027 = 2.7 inches (69 mm)
Fittings Option:00 = No fittings (two plugs, two washers)
Mounting Thread Option:02 = 3/4-14 NPT
Linear Range:2 mm (80 mils)
Incremental Scale Factor:7.87 V/mm (200 mV/mil) ±5%
Recommended Gap:1.27 mm (50 mils)
Frequency Response:0 – 10 kHz (+0, -3 dB)
Operating Temp (Housing):-52°C to +100°C
Probe Temp Range:-52°C to +177°C
Power:-17.5 Vdc to -26 Vdc

FAQ - Proximity Transducer

330880-28-15-027-00-02

Q: What approvals does the “28” option include?
A: Multiple Approvals including cNRTLus (Class I, Zone 0/2; Div 2), ATEX (Ex ia IIC T4/T5 Ga), and IECEx. Suitable for global hazardous area installations.

Q: What is the difference between this model (027) and the 048 model?
A: The "C" dimension (probe penetration) is 2.7 inches vs 4.8 inches. This model is for shallower casing walls or applications where less probe stick-out is required.

Q: Do I need an external Proximitor or extension cable?
A: No. The Proximitor sensor is integrated inside the housing cover.

Q: Can I adjust the gap after installation?
A: Yes. The threaded sleeve allows ±12.7 mm (0.5 in) adjustment from the mid-setting.

Q: Is this suitable for steam or hot water exposure?
A: Brief exposure (≤1 week) to 95°C water/steam is acceptable. Longer exposure may reduce housing strength.

Model Comparison - Universal Relay

Parameter

330880-28-15-048-00-02

330880-28-15-027-00-02

330880-28-20-060-01-02

330880-16-00-035-00-02

Probe & Approvals

28 (Multi-Approval)

28 (Multi-Approval)

28 (Multi-Approval)

16 (No Approvals)

Standoff Adapter (B)

1.5 in (38 mm)

1.5 in (38 mm)

2.0 in (51 mm)

None

Probe Penetration (C)

4.8 in (122 mm)

2.7 in (69 mm)

6.0 in (152 mm)

3.5 in (89 mm)

Total B+C Length

6.3 in (160 mm)

4.2 in (107 mm)

8.0 in (203 mm)

3.5 in (89 mm)

Fittings Option

00 (None)

00 (None)

01 (One fitting)

00 (None)

Mounting Thread

3/4-14 NPT

3/4-14 NPT

3/4-14 NPT

3/4-14 NPT

Hazardous Area

Yes

Yes

Yes

No
