330876-02-90-00-00 - BENTLY NEVADA Proximity Probe

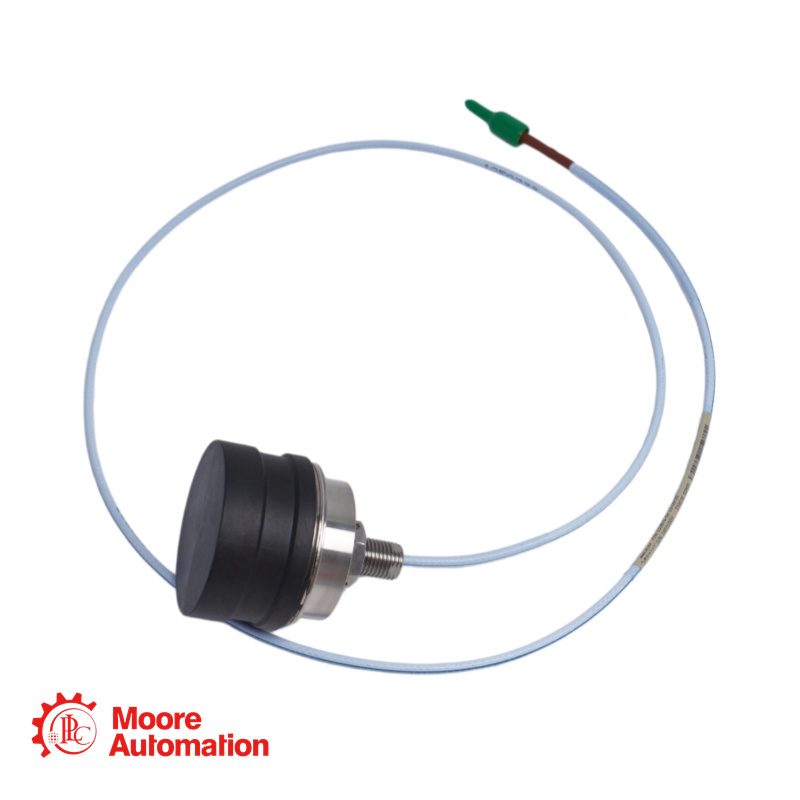

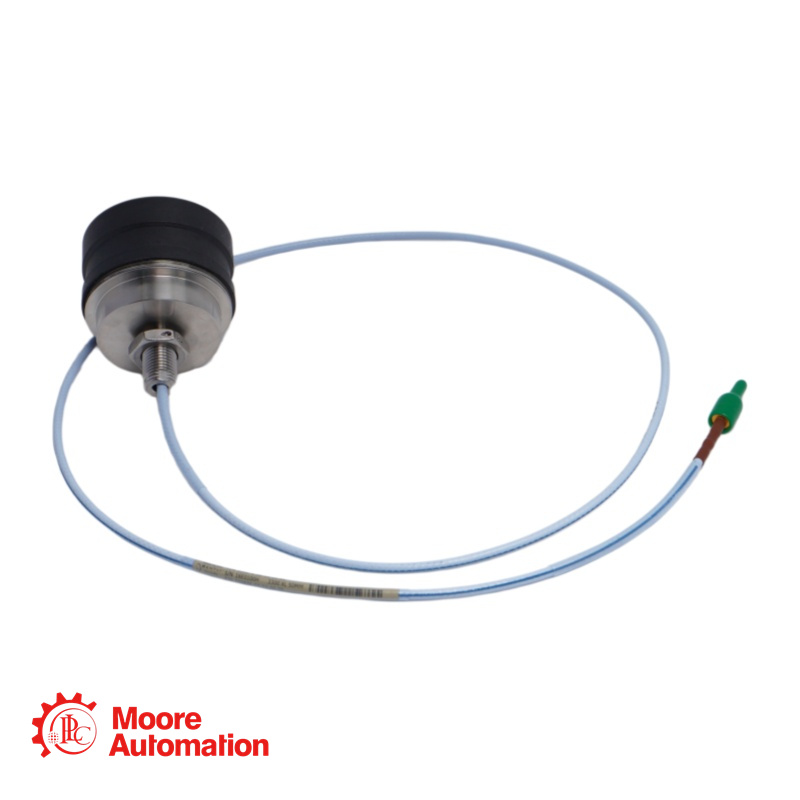

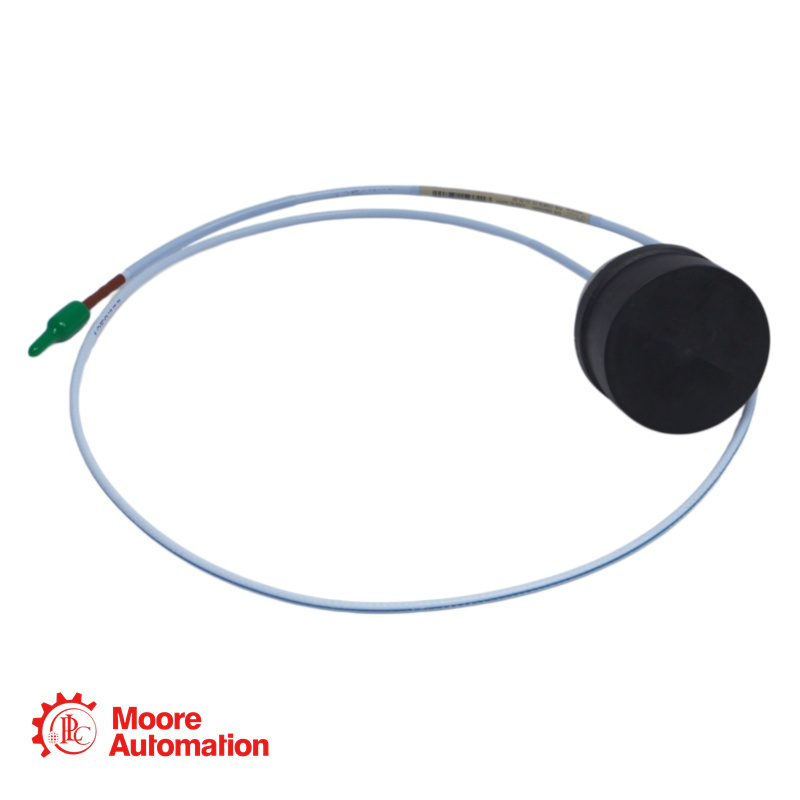

BENTLY NEVADA 330876-02-90-00-00 Proximity Probe

Sales Manager: Frida

Email: sales5@mooreplc.com

The 3300 XL 50 mm probe is designed to survive the harshest steam turbine DE environments. It can continually operate and maintain its accuracy in high temperatures up to 200°C (392°F), and can withstand intermittent high temperatures up to 250°C (482°F). The 50 mm probe has both a front and rear seal which, combined with the High Temperature FluidLoc cable (standard on all 50 mm probes), prevent moisture from entering the probe tip. Special high-temperature ClickLoc connectors are also standard on the probe and extension cable. Each probe and cable comes with connector protectors and a disposable connector protector installation tool to ensure that the connectors remain free of contamination. The ClickLoc connector on the probe lead features a removable collar that facilitates routing the cable through tight clearances.

330876-AA-BB-CC-DD

A: Probe Case Type Option: 02 M14x1.5 Thread

B: Total Length Option: 90 9.0 meters (29.5 feet)

C: ArmorOption: 00 High Temperature FluidLoc Cable

D: Agency Approval Option: 00 No Approvals

Q:What is the linear range of this probe?

A:The 3300 XL 50 mm probe has a maximum linear range of 27.9 mm (1100 mils). The linear range begins at approximately 1.3 mm (50 mils) from the target and extends to 29.2 mm (1150 mils), corresponding to an output of approximately –1.5 to –12.5 Vdc.

Q:Can I use this probe with any 3300 XL extension cable and Proximitor Sensor?

A:Yes, provided the total system length (probe + extension cable) matches the Proximitor Sensor's specified total length.

Q:Can this probe be used as a direct replacement for older 7200 series 50 mm systems?

A:Yes. The 3300 XL 50 mm probe is designed to physically replace standard 7200 50 mm systems. The Proximitor Sensor output (394 mV/mm or 10 mV/mil) is identical to that of 7200 and 50 mm DE integral systems, allowing upgrades without changing monitor configuration.
