Marca :
Bently NevadaNúmero de parte :
330190-040-00-05Peso :
0.25kgDimensión :
20x20x2.5cmPaís de origen :
USACódigo hs :
8537101190Descripción :
Extension Cable
|

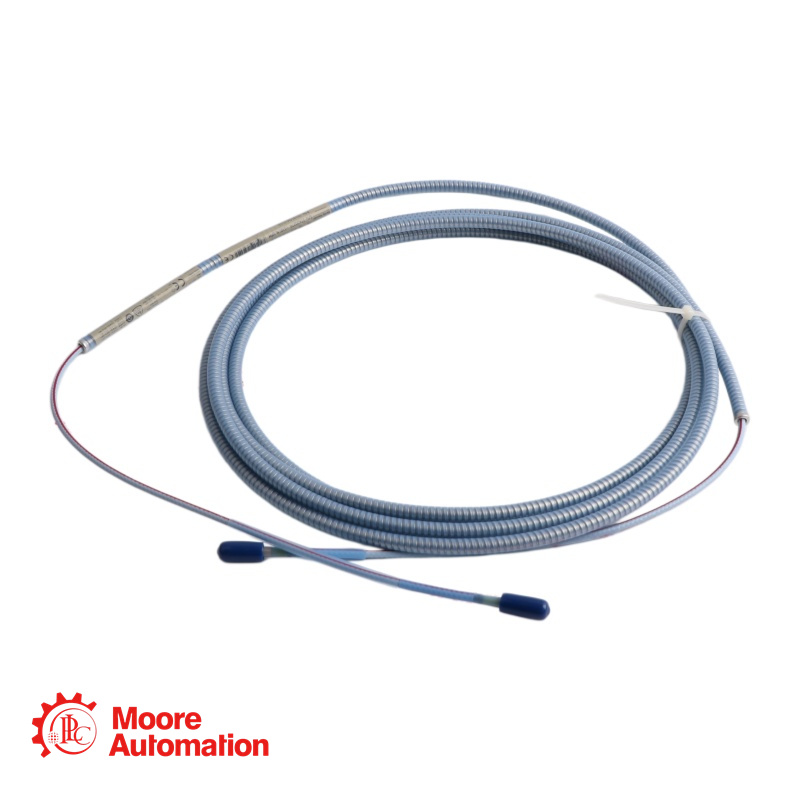

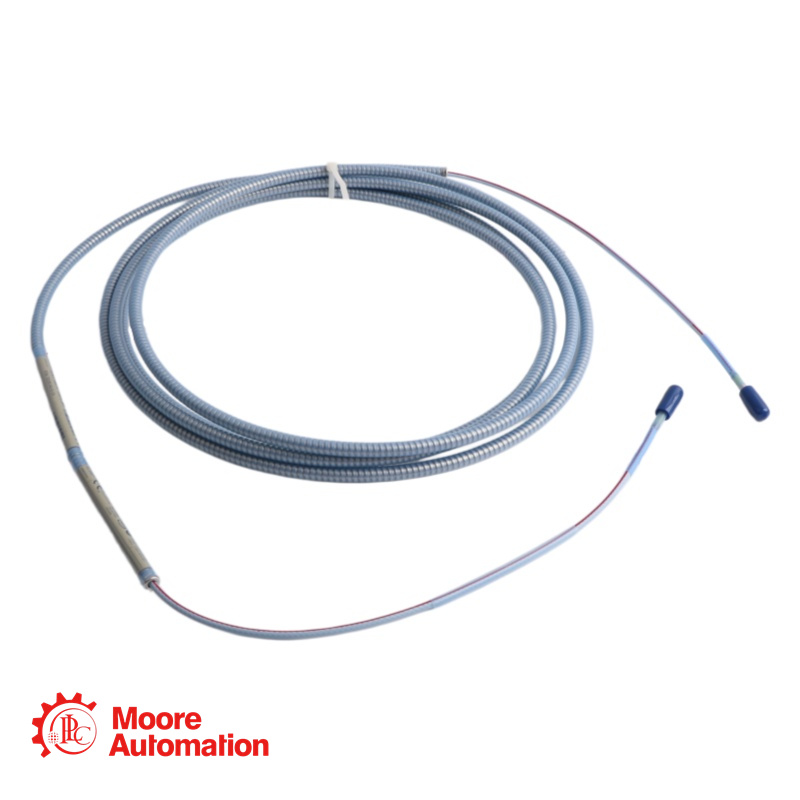

Bently Nevada 330190-040-00-05 Extension Cable |
|
330190-AAA-BB-CC
330190: 3300 XL Extended Temperature Range (ETR) Extension Cable
A: Cable Length Option: 040 4.0 meters (11.5 feet)
B: Cable Option: 00 Standard cable
|
|
Get Best Price - Please Contact Frida |
|
|
Phone/Whatsapp: +86 15359408275 |
|
|
Email: sales5@mooreplc.com |
|
|
Bently Nevada 330190-040-00-05 FAQ |
||
|
Can I use this 4.0-meter cable with a 9.0-meter Proximitor Sensor?
No.
What are the physical and environmental limits of this cable?
Material: Outer jacket made of advanced Fluorinated Ethylene Propylene (FEP), which offers exceptional chemical resistance to synthetic and mineral lubricants.
Temperature Rating: Engineered to operate reliably in harsh industrial environments ranging from -51 °C to +177 °C (-60 °F to +350 °F).
Bend Radius: The minimum recommended physical bend radius during field installation is 25.4 mm (1.0 inch) to prevent internal coaxial core fatigue.
Product Series: Bently Nevada 3300 XL 8 mm Proximity Transducer System
The 3300 XL 8 mm Proximity Transducer System consists of: One 3300 XL 8 mm probe, One 3300 XL extension cable1, and One 3300 XL Proximitor Sensor. The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
|
||
|
Related Products |
330102:3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor
330103:3300 XL 8 mm Probe, M10 x 1 thread, without armor
330104:3300 XL 8 mm Probe, M10 x 1 thread, with armor
330105-02-12-CC-DD-EE:3/8-24 UNF threads
330106-05-30-CC-DD-EE:M10 x 1 threads
330140:3300 XL 8 mm Probe without armor
330141:3300 XL 8 mm Probe with armor
330191:3300 XL 8 mm ETR Probe, 3/8-24 UNF thread, without armor
330192:3300 XL 8 mm ETR Probe, 3/8-24 UNF thread, with armor
330193:3300 XL 8 mm Probe, M10 x 1 thread,without armor
330194:3300 XL 8 mm Probe, M10 x 1 thread,with armor
330195-02-12-CC-DD:3/8-24 UNF threads
330196-05-30-CC-DD:M10 x 1 threads
|
