3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor
Marca :
Bently NevadaNúmero de parte :
330102-25-40-10-02-05Peso :
0.05 kgDimensión :
1.5x1.3x116cmPaís de origen :
USACódigo hs :
8537101190Descripción :
Proximity Probe
Part number
330102-25-40-10-02-05
Manufacturer
Country of origin
USA
Status
Brand New In Stock
Short Description
Proximity Probe
Bently Nevada
|
Contact Here to Get Price |
|
|
Sales Manager |
Frida |
|
Phone/Whatsapp |
|
|
|
sales5@mooreplc.com |
- 330102-25-40-10-02-05 Proximity Probe

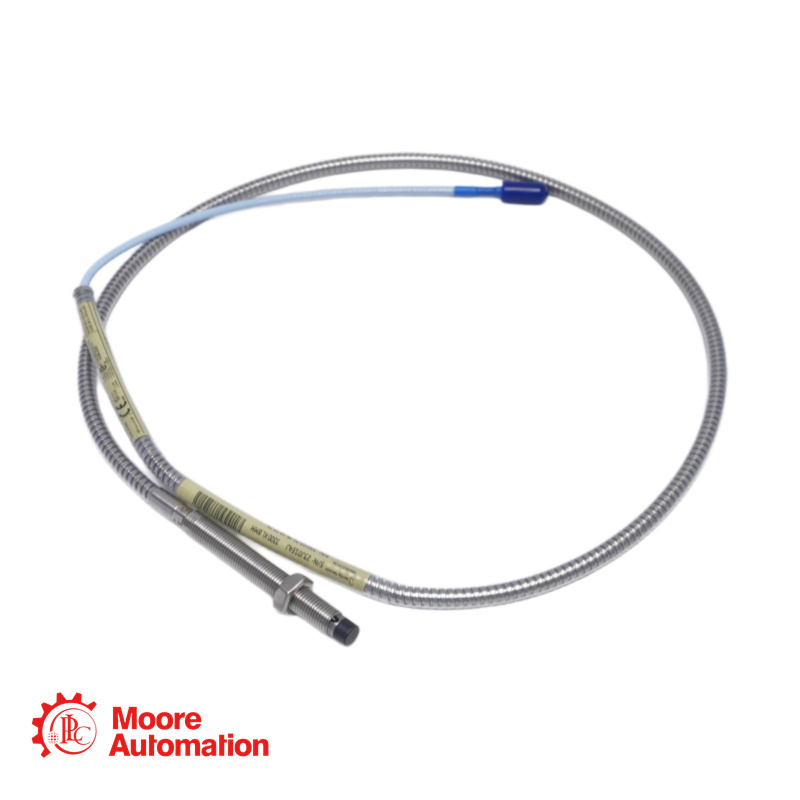

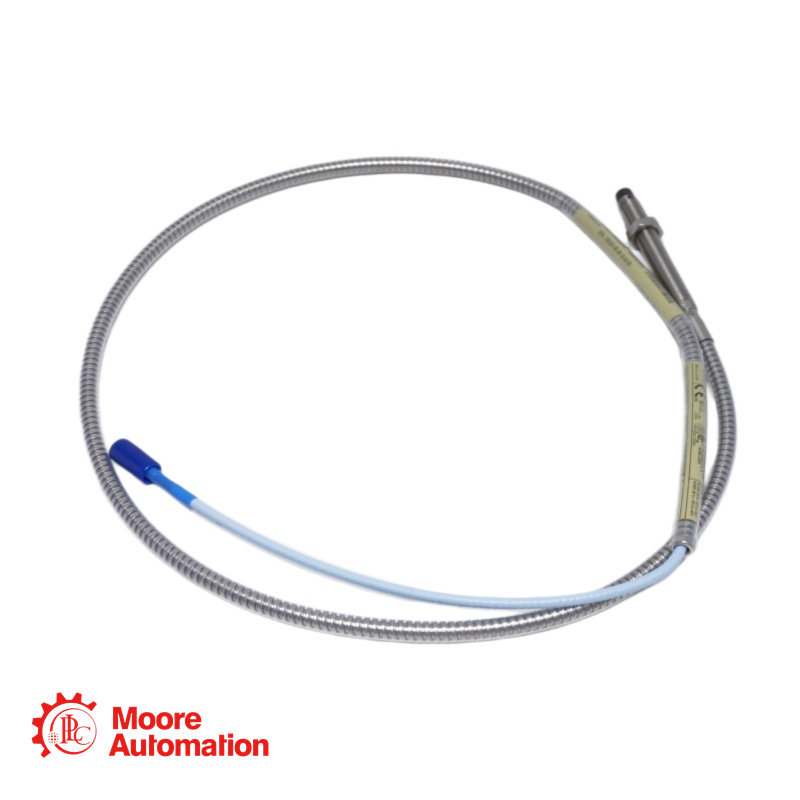

The 330102-25-40-10-02-05 is a 3300 XL 8 mm Proximity Probe with 3/8-24 UNF threads, with armor. This probe is part of the 3300 XL 8 mm Proximity Transducer System, which provides an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, measuring both static (position) and dynamic (vibration) values.
330102 3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor
A: Unthreaded Length Option 25 2.5 in
B: Overall Case Length Option 40 4.0 in
C: Total Length Option 10 1.0 meter
D: Connector and Cable-Type Option 02 Miniature coaxial ClickLoc connector, standard cable (without connector protector)
E: Agency Approval Option 05 CSA, ATEX, IECEx Approvals
Average Scale Factor:7.87 V/mm (200 mV/mil) ±5% (standard system)
Linear Range:2 mm (80 mils) – from 0.25 to 2.3 mm (10 to 90 mils)
Recommended Gap for Radial Vibration:-9 Vdc [approximately 1.27 mm (50 mils)]
Nominal Probe DC Resistance (1.0m):7.59 ± 0.50 Ω (from page 4)
Deviation from Best Fit (DSL):Less than ±0.025 mm (±1 mil)
Frequency Response:0 to 10 kHz: +0, -3 dB
Minimum Target Size (flat):15.2 mm (0.6 in) diameter
FAQ About 330102-25-40-10-02-05
What is the thread size and type of this probe?
A: This probe has 3/8-24 UNF threads and is supplied with armor. A lock nut (9/16 inch) is supplied with standard mount 8 mm probes.
What does "with armor" mean for this probe?
A: This probe includes flexible AISI 302 or 304 stainless steel armor with an FEP outer jacket.
Is this probe interchangeable with older 3300 series components?
A: Yes. 3300 XL 8 mm components are both electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components.
