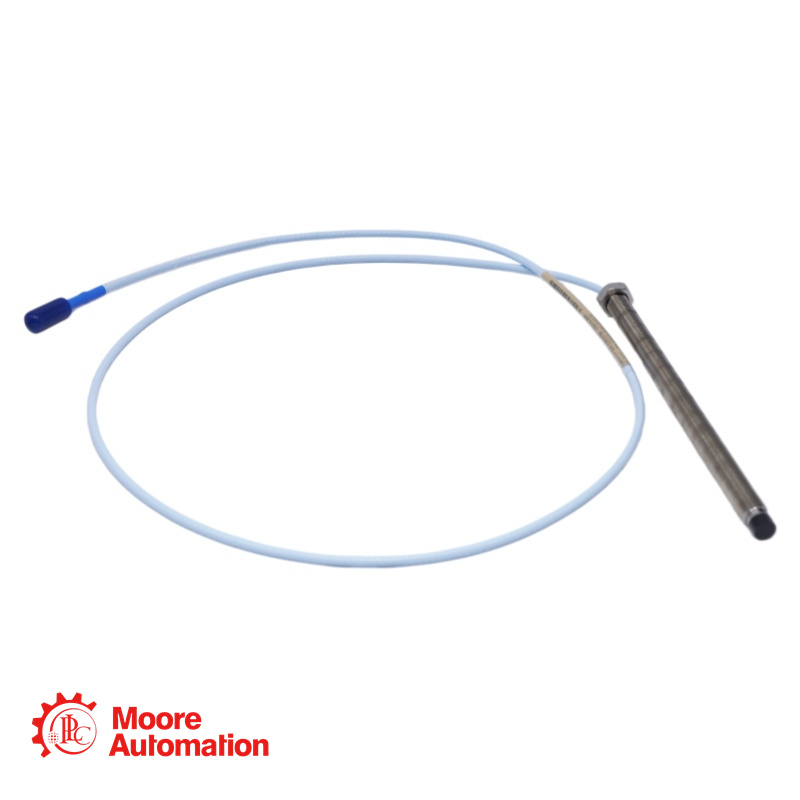

The Bently Nevada 330101-00-60-05-02-00 is a 3300 XL 5 mm proximity probe.
Marca :
Bently NevadaNúmero de parte :
330101-00-60-05-02-00Peso :
0.1 kgDimensión :
2.6x2.3x123cmPaís de origen :
USACódigo hs :
8537101190Descripción :
Proximity Probe
330101-00-60-05-02-00
The Bently Nevada 330101-00-60-05-02-00 is a 3300 XL 5 mm proximity probe, an eddy current sensor that measures displacement and vibration of rotating machinery shafts without physical contact. The 5 mm diameter is specifically designed for applications where space constraints prevent the use of larger 8 mm probes.
Technical Specifications for 330101-00-60-05-02-00
|
Unthreaded Length |
0:No unthreaded section (0 mm) |
|
Case Length |
60:6.0 inches (152.4 mm) threaded case length |
|
Total Cable Length |
05:0.5 meters (1.6 feet) |
|
Connector/Cable Type |
02:Standard cable with ClickLoc™ connector |
|
Agency Approvals |
00:Not required |
|
Series |
3300 XL |
|
Probe Diameter |
5 mm (0.2 in) |
|
Tip Material |
PPS (Polyphenylene sulfide) |
|
Frequency Response |
DC to 10 kHz (-3dB) |
|
Cable Pull Strength |
≥330 N (75 lbf) with CableLoc |
FAQ about 330101-00-60-05-02-00
What is unique about the 60 case length code?
The 60 code indicates a 6.0-inch (152.4 mm) threaded case length – the longest standard case length available for the 3301 series 5 mm probe.
What is the temperature rating?
Probe tip: -52°C to +177°C (-62°F to +351°F).
What is the measurement range of this 5 mm probe?
The 5 mm probe provides a linear range of approximately 0.25 mm to 2.3 mm (10 to 90 mils) gap . The typical operating gap is 1.0-1.5 mm (40-60 mils). The output voltage ranges from -1 Vdc to -17 Vdc over this range.
What is the resistance and capacitance of this probe?
Loop Resistance: 7.45 Ω ±0.50 Ω
Capacitance: 21.3 pF per foot typical / 69.9 pF per meter typical
|
