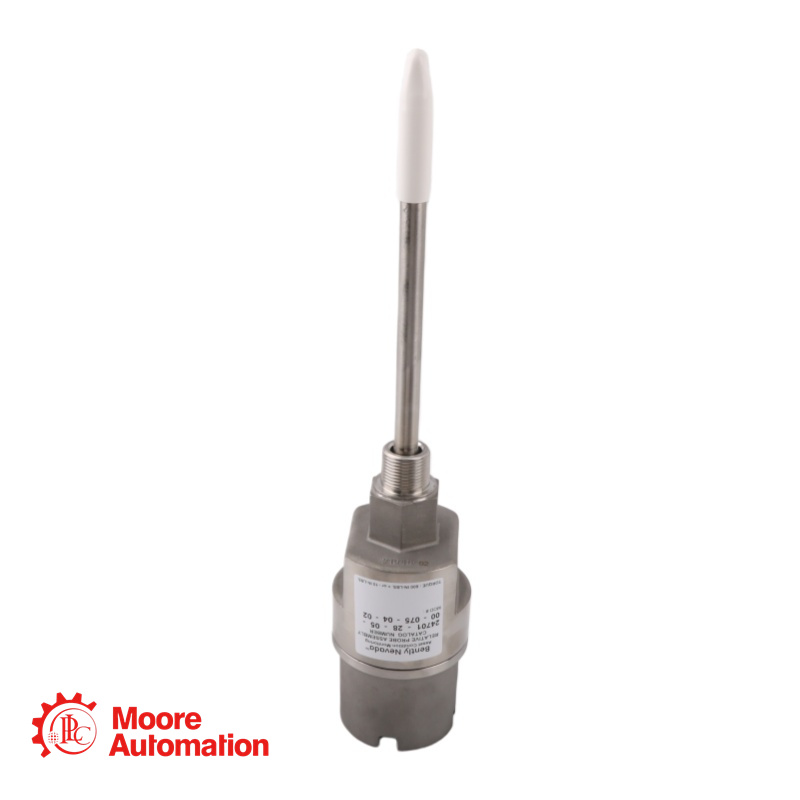

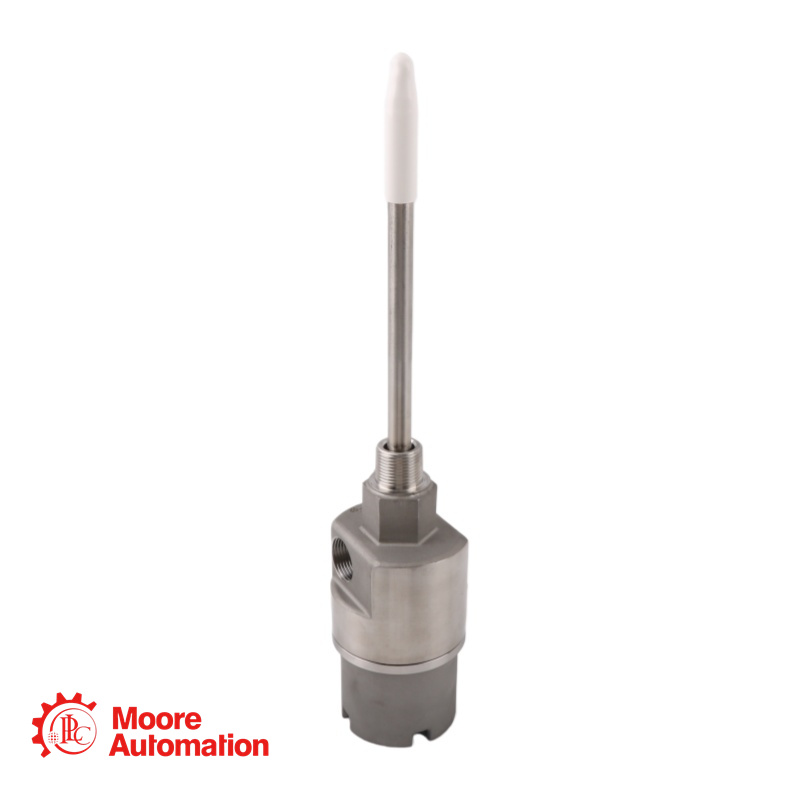

24701-28-05-15-026-03-02 is a stainless steel probe housing assembly.
Marca :
Bently NevadaNúmero de parte :
24701-28-05-15-026-03-02Peso :
2.22 kgDimensión :
38x7.8x7.8cmPaís de origen :
USACódigo hs :
8537101190Descripción :
Proximity Probe Housing Assembly
24701-28-05-15-026-03-02
The 24701-28-05-15-026-03-02 is a 24701 Stainless Steel Proximity Probe Housing Assembly designed for externally mounting proximity probes in industrial machinery applications. This all-metal housing assembly is rated explosion-proof for hazardous areas and certified as a CSA Type 4 enclosure. It is fully compliant with the American Petroleum Institute's (API) 670 Standard for externally mounted proximity probe housings.
The 24701 housing features a 303 stainless steel body with a 304 stainless steel sleeve, providing excellent durability and corrosion resistance for demanding environments.
Specifications: 24701-28-05-15-026-03-02
Part Number-AA-BB-CC-DD-EE
Parameter
Specification
Base Model
24701
Probe with Connector
3300 XL 8mm probe, selectable hazardous area approvals
Probe Cable Length
0.5 meter (20 inches)
Standoff Adapter
Minimum length 1.5 in (38 mm)
Probe Penetration
2.6 inches (66 mm)
Fittings
One 3/4-14 NPT plug; One 3/4-14 to 1/2-14 NPT reducer; One cable seal grip with grommets for cable sizes: 1/8 to 3/16 in, 1/4 to 5/16 in, 5/16 to 3/8 in
Mounting Thread
3/4-14 NPT
Electrical Specifications
Parameter
Specification
Housing Material
303 stainless steel body, 304 stainless steel sleeve
Mass (Weight)
1.8 kg (4.1 lb) typical, without fittings
Temperature Range (Probe)
-51°C to +177°C (-60°F to +351°F)
Hazardous Area
Rating Explosion-proof (CSA certified)
Enclosure Type
CSA Type 4
24701-28-05-15-026-03-02 FAQ
Q: What type of probe is included with this housing?
A: Option A:28 includes a 3300 XL 8mm probe with selectable hazardous area approvals. The probe is designed for use in intrinsically safe applications when installed per applicable drawings.
Q: What is the cable length of the included probe?
A: Option B:05 specifies a probe cable length of 0.5 meter (20 inches) .
Q: What is the standoff adapter length for this housing?
A: Option C:15 provides a standoff adapter with a minimum length of 1.5 inches (38 mm) . Standoff adapters are used to adjust the probe penetration depth and can be ordered in increments of 0.5 inches.
Q: What is the probe penetration length?
A: Option D:026 indicates a probe penetration length of 2.6 inches (66 mm) . This is the distance the probe extends beyond the housing. Probe penetration can be ordered in increments of 0.1 inches (3 mm).
Q: What is the temperature range for this housing assembly?
A: The operating and storage temperature range for the probe is -51°C to +177°C (-60°F to +351°F).
|
