MODULE PART NUMBER

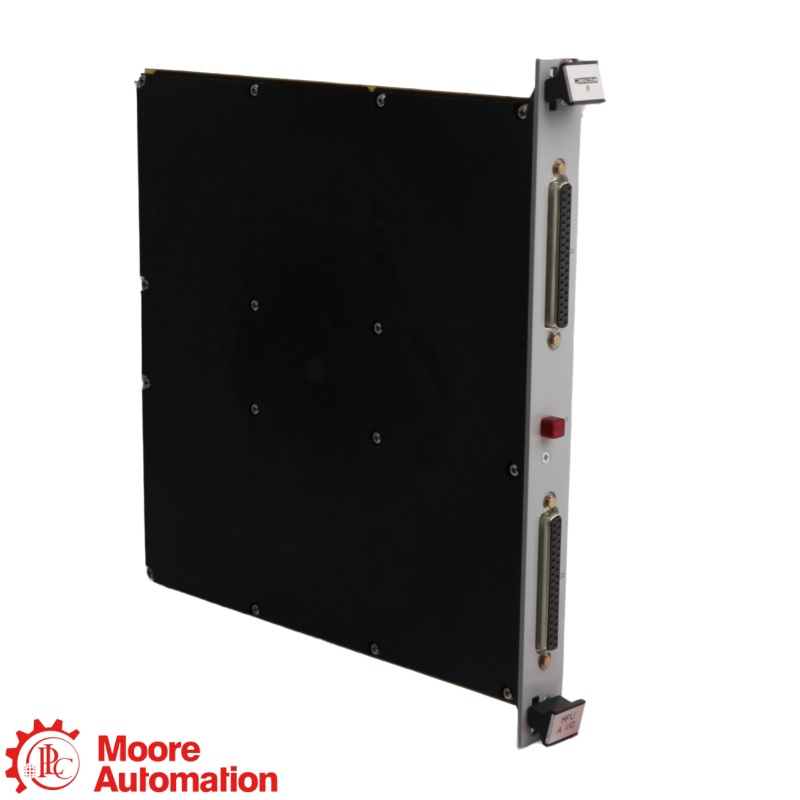

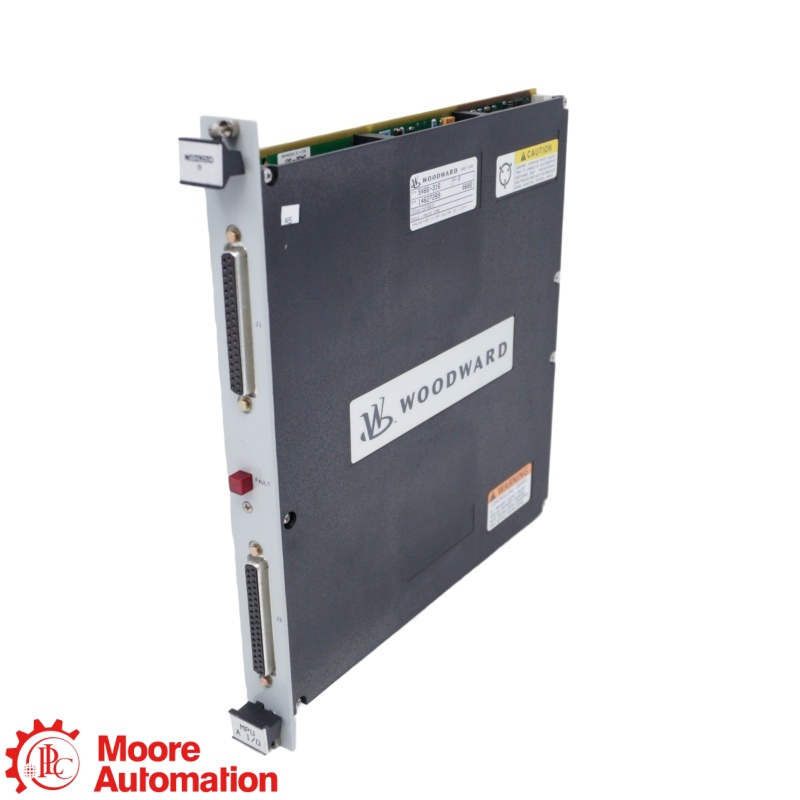

5466-315 · High-Density Analog I/O
The module handles 24 current-loop inputs and eight current-loop outputs in a simplex MicroNet application.
The 5466-315 is a legacy Woodward MicroNet high-density analog I/O module that provides 24 current-loop analog inputs and eight current-loop analog outputs in a simplex configuration.
Exact part-number and configuration data must be confirmed from the nameplate and the applicable Woodward document.
Woodward Product Change Notification 06931 identifies 5466-315 as a simplex high-density analog I/O module with 24 analog inputs, eight analog outputs and two required 5501-376 field termination modules.
Woodward Product Change Notification 06931 identifies 5466-315 as a simplex high-density analog I/O module with 24 analog inputs, eight analog outputs and two required 5501-376 field termination modules.
OPEN OFFICIAL TECHNICAL MANUALSend the complete model, quantity, and your technical or purchasing question.
Technical statements on this product page are based on publicly available official Woodward manufacturer documentation.
Woodward is the brand; High-Density Analog I/O Module is the controller designation; and 5466-315 is the exact manufacturer part number for the documented micronet analog input and output configuration.
The module handles 24 current-loop inputs and eight current-loop outputs in a simplex MicroNet application.
Match both field termination modules, cables, channel assignments and loop wiring to the installed system.
The updated module is conditional because channels 23 and 24 use a 5 ms anti-aliasing filter and controller compatibility must be checked.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
