VIPA 62M-JEE0-CB TP 612C 12.1-Inch Touch Panel
VIPA 62M-JEE0-CB TP 612C 12.1-Inch Touch Panel
VIPA 62M-JEE0-CB TP 612C 12.1-Inch Touch Panel

VIPA 62M-JEE0-CB TP 612C 12.1-Inch Touch Panel

VIPA 62M-JEE0-CB

62M-JEE0-CB

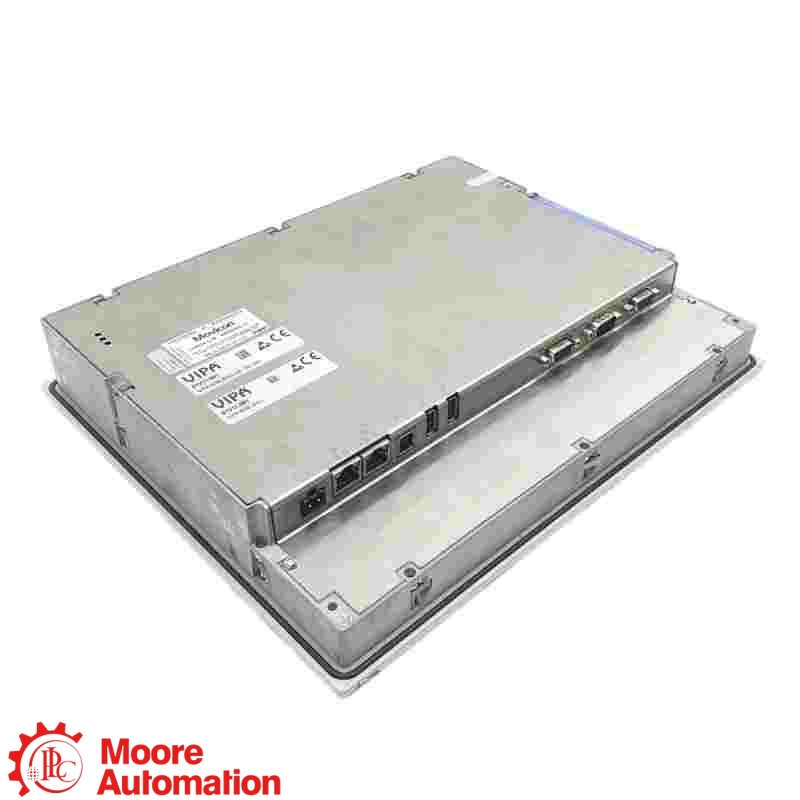

The 62M-JEE0-CB is a VIPA TP 612C professional touch panel with a 12.1-inch TFT display, 800 x 600 resolution, XScale 800 MHz processor, 128 MB work memory and 4 GB user memory.

MODULE TYPETP 612C touch panel
DISPLAY12.1 in TFT · 800 x 600
INTERFACESMPI/PROFIBUS-DP · Ethernet
ORDERING NUMBER62M-JEE0-CB
MANUFACTURERVIPA
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
VIPA ● TP 612C TOUCH PANEL
VIPA HMI

62M-JEE0-CB

62M-JEE0-CB · EXACT ORDER NUMBER

12.1-inch industrial touch panel for machine operation and process visualization

MODULE ROLE
62M-JEE0-CB is a VIPA TP 612C professional touch panel with a 12.1-inch TFT color display, 800 x 600 resolution and resistive single-touch operation.
CONFIGURATION NOTE
For 62M-JEE0-CB, confirm the exact order number, 24 V DC supply, panel cut-out, front and rear protection ratings, communication interfaces, operating-system image and installed Movicon project before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

VIPA ↗
TP 612C TOUCH PANEL

Engineering data at a glance

Click “+” to expand more specifications.

WIDTH325 mm front panel
HEIGHT263 mm front panel
DEPTH45 mm rear panel
WEIGHT3.674 kg
Exact VIPA 62M-JEE0-CB data-sheet values.
Official model configurationThe exact 62M-JEE0-CB configuration combines a 12.1-inch 800 x 600 TFT display, XScale 800 MHz processing, 128 MB work memory, 4 GB user memory, Windows CE 6.0 Professional and Movicon 11 CE Standard.
GENERAL INFORMATION−
Brand / product lineVIPA HMI
Ordering number62M-JEE0-CB
Product typeTouch Panel TP 612C
Display12.1-inch TFT color · 800 x 600 · 4:3
ProcessorXScale 800 MHz
Memory128 MB work memory · 4 GB user memory
Operating systemWindows CE 6.0 Professional
Runtime softwareMovicon 11 CE Standard
Rated supply24 V DC · permitted range 20.4...28.8 V DC
ProtectionIP65 front · IP20 rear
Display and User Interface＋
Display area246 mm x 184.5 mm
Resolution800 x 600 landscape · 600 x 800 portrait
TouchscreenResistive single touch
Hardware and Interfaces＋
Industrial networksMPI / PROFIBUS-DP
Serial interfacesRS232 · RS422 / RS485
USBUSB-A · USB-B
Ethernet2 x RJ45 Ethernet with switch
Storage interfacesSD / MMC slot · CF Card Type II
Mechanical and Environmental＋
Front panel: 325 x 263 x 7.5 mm. Rear panel: 309 x 247 x 45 mm. Installation cut-out: 311 x 249 mm. Weight: 3674 g. Operating temperature: 0 to 50 °C; storage temperature: -20 to 60 °C.
FAQ

Questions Buyers Ask Most

What is 62M-JEE0-CB?＋

62M-JEE0-CB is a VIPA TP 612C professional touch panel for industrial machine operation and process visualization.

What display is fitted to 62M-JEE0-CB?＋

62M-JEE0-CB uses a 12.1-inch TFT color display with 800 x 600 resolution, a 4:3 aspect ratio and resistive single-touch input.

What processor and memory configuration does 62M-JEE0-CB use?＋

62M-JEE0-CB uses an XScale 800 MHz processor, 128 MB of work memory and 4 GB of user memory for the operating system and HMI project.

Which communication interfaces are available on 62M-JEE0-CB?＋

62M-JEE0-CB provides MPI/PROFIBUS-DP, RS232, RS422/RS485, USB-A, USB-B and two RJ45 Ethernet connections with an integrated switch.

Which operating system and runtime are supplied with 62M-JEE0-CB?＋

62M-JEE0-CB is supplied with Windows CE 6.0 Professional and Movicon 11 CE Standard runtime software.

Can 62M-JEE0-CB operate from a 24 V DC supply?＋

62M-JEE0-CB is rated for 24 V DC operation with a permitted supply range of 20.4 to 28.8 V DC and rated current consumption of 0.8 A.

What should be verified when ordering 62M-JEE0-CB?＋

62M-JEE0-CB should be matched by exact order number, panel cut-out, 24 V DC supply, interface set, operating-system image, Movicon project and installed network configuration.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the exact order number, quantity, panel cut-out, power supply, interface requirements, operating-system image, Movicon project version and installed-machine details for compatibility and availability checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Official Data Sheet for
62M-JEE0-CB

The official VIPA data sheet identifies the exact 62M-JEE0-CB order number and TP 612C configuration, including display, processor, memory, interfaces, power, dimensions, protection and environmental data.

VIPA TP 612C Touch Panel

The VIPA data sheet identifies 62M-JEE0-CB as a 12.1-inch TP 612C professional touch panel with 800 x 600 resolution, Windows CE 6.0 Professional and Movicon runtime.

OPEN OFFICIAL DATASHEET PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Use the official exact-model data sheet to match the 62M-JEE0-CB order number, panel cut-out, power supply, interfaces, operating-system image and application project before replacement.

VIPA TP 612C PRODUCT OVERVIEW

How 62M-JEE0-CB Fits the VIPA TP 612C HMI Platform

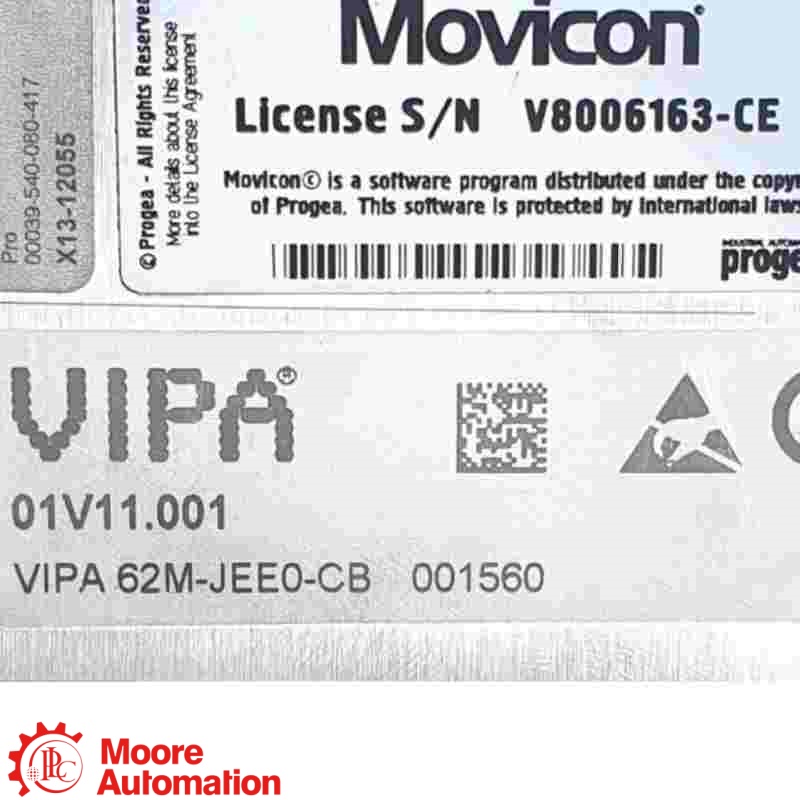

VIPA is the manufacturer; TP 612C identifies the professional touch-panel type; and 62M-JEE0-CB is the exact order number documented by the official data sheet.

VIPA · MANUFACTURER
VIPA TP 612C professional touch panelINDUSTRIAL HMI · DISPLAY AND CONTROL INTERFACE
EXACT ORDER NUMBER

62M-JEE0-CB

The official VIPA data sheet identifies 62M-JEE0-CB as the exact order number for the TP 612C touch panel.

DISPLAY AND COMPUTING

12.1-inch TFT · XScale 800 MHz

The panel provides 800 x 600 resolution, 128 MB work memory, 4 GB user memory and a resistive single-touch interface.

CONNECTIVITY

MPI/PROFIBUS-DP · Serial · USB · Ethernet

The interface set includes MPI/PROFIBUS-DP, RS232, RS422/RS485, USB-A, USB-B and two switched RJ45 Ethernet ports.

Installation match: verify the exact 62M-JEE0-CB order number, 311 x 249 mm panel cut-out, 24 V DC supply, interface wiring, Windows CE image and Movicon project before replacement.
APPLICATION AREAS

Application map for 62M-JEE0-CB

Machine Operator InterfaceProvides local visualization and touch operation for industrial machinery
Process VisualizationDisplays process values, alarms and operator controls through the HMI project
APPLICATION CENTER62M-JEE0-CBVIPA TP 612C industrial touch panel
MPI and PROFIBUS-DP StationsConnects to compatible automation systems through the documented MPI/PROFIBUS-DP interface
Control-Cabinet InstallationMounts through the documented panel cut-out with IP65 protection at the front
