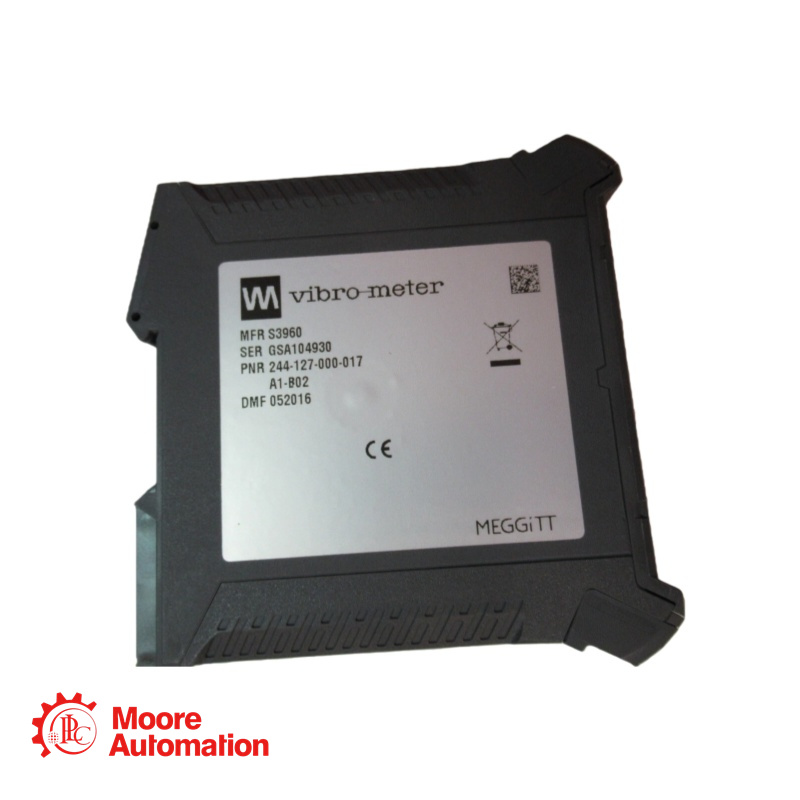

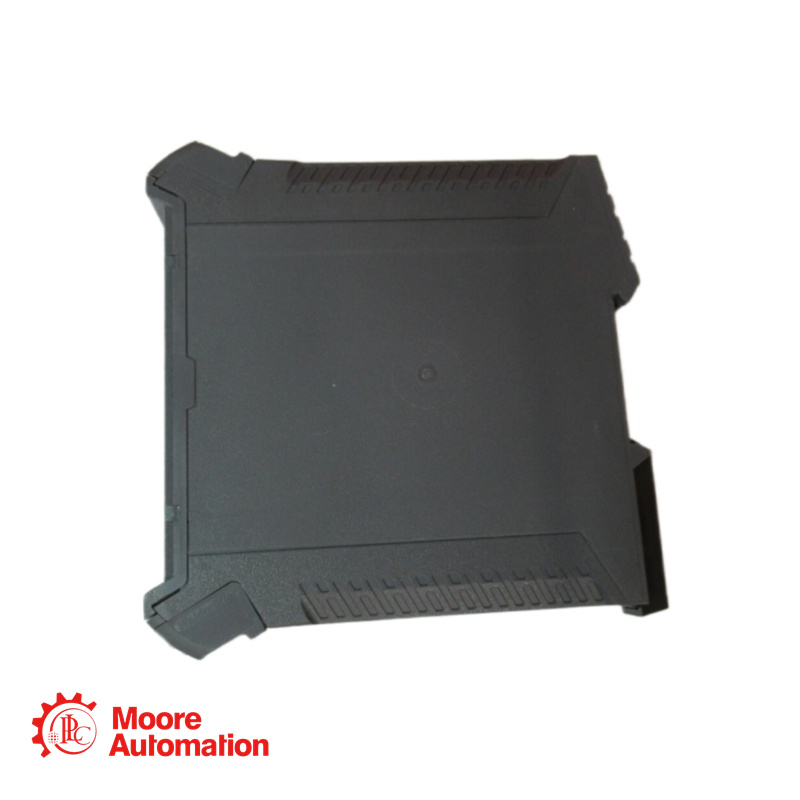

Vibro Meter GSI127 244-127-000-017 A1-B02 Galvanic Separation Unit

PRODUCT AT A GLANCE

The GSI127 244-127-000-017 A1-B02 is a galvanic separation unit from Meggitt's vibro-meter product line. It is designed for operation with the signal conditioners, charge amplifiers and electronics (attached or integrated) used by various vibro-meter measurement chains and/or sensors.

TECHNICAL SPECIFICATIONS

Temperature
•Operating : 0 to 70 °C (32 to 158 °F)
•Storage :−40 to 85 °C (−40 to 185 °F)
Power supply (to GSI127)
Input voltage range : 18 to 30 VDC
Current consumption (with nominal 24 VDC supply)
•No load on sensor side : ≤ 80 mA
•20 mA load on sensor side : ≤120 mA
Input signal (sensor side)
Supply
•Ordering options B0x : 20 VDC ±1 VDC
•Ordering options B21 : 8 mA ± 0.5 mA
Impedance
•Ordering options B0x : ≤ 30 Ω
•Ordering options B21 : ≥ 50 kΩ
Dynamic range
•Ordering options B0x : 0 to 20 mA
•Ordering options B21 : 0 to 20 VDC
Overload protection
•Ordering options B0x : 26 mA
•Ordering options B21 : 22 VDC
Output signal (monitor side)
Output voltage dynamic range
(with 10 kΩ load)
: 2 to 20 VDC
Output impedance : 20 Ω, protected against short-circuits
Power supply voltage rejection ratio
•10 Hz to 400 Hz : ≥ 60 dB
•400 Hz to 100 kHz : ≥ 30 dB

HOW REQUEST A QUOTE FROM US?

Sales Manager: Frida

Phone/Whatsapp/Wechat:+86 15359408275

Email:sales5@mooreplc.com

FREQUENTLY ASKED QUESTIONS

Q:Is this GSI127 244-127-000-017 A1-B02 have warranty?
A:Yes. We offer original new product with one year warranty.

Q:How does the GSI127 244-127-000-017 A1-B02 reduce electrical noise in long cable runs?

A:GSI127 244-127-000-017 provides 4 kV RMS galvanic isolation between sensor and monitor sides, breaking ground loops, and has high power supply noise rejection (≥60 dB from 10–400 Hz).
