Marca :
SiemensNúmero de parte :
6ES7521-1BL00-0AB0Peso :
35 mm (W) × 147 mm (H) × 129 mm (D)Dimensión :
260 gPaís de origen :
GermanyCódigo hs :
8537101190Descripción :

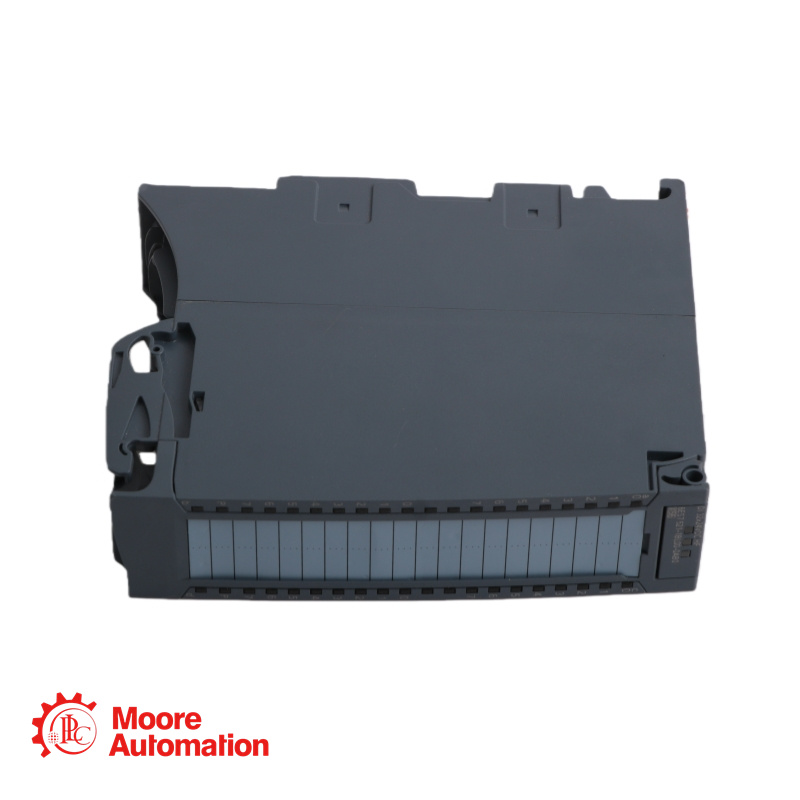

Digital Input Module
Product Datasheet
Product type designation: DI 32x24VDC HF
Article number (MLFB): 6ES7521-1BL00-0AB0
Hardware functional status: from FS04
Firmware version: V2.2.1
Number of digital inputs: 32
Input type: P-reading (sourcing), 24 VDC, IEC 61131 Type 3
Input voltage range for signal "1": +11 to +30 VDC
Input voltage range for signal "0": -30 to +5 VDC
Input current for signal "1" (typical): 2.5 mA
Input delay configurable: Yes, 0.05 / 0.1 / 0.4 / 1.6 / 3.2 / 12.8 / 20 ms
Minimum input delay: 0.05 ms
Maximum input delay: 20 ms
Counter function: Yes, up to 2 counters, max. counting frequency 6 kHz, 32-bit, up/down counting
Encoder connection: 2-wire sensor supported, max. quiescent current 1.5 mA
Isochronous mode: Yes, min. filtering/processing time 80 µs, min. bus cycle time 250 µs
Electrical isolation: Channels isolated in groups of 16, isolated from backplane bus
Isolation test voltage: 707 V DC (type test)
Supply voltage: 24 VDC (range: 19.2 V to 28.8 V), reverse polarity protection
Current consumption (max.): 40 mA (20 mA per group)
Power consumption from backplane bus: 1.1 W
Typical power loss: 4.2 W
Cable length: Shielded max. 1000 m, unshielded max. 600 m
Operating temperature (horizontal): -30 °C to 60 °C (from FS05)
Operating temperature (vertical): -30 °C to 40 °C (from FS05)
Max. installation altitude: 5000 m (with restrictions above 2000 m)
Module dimensions: 35 mm (W) × 147 mm (H) × 129 mm (D)
Approximate weight: 260 g
Get your price easily
Position
Phone
Email
Sales Manager:
Frida
Buying Notes
Products: 100% full New! & Original!
Package: Original packing with cartons.
Payment Term: T/T
Warranty:12 month
Shipment:DHL,UPS,TNT,CHIRLINE,FEDEX
Delivery Time: Shipped in 3 days after payment.
MOQ:1
