 /Siemens 6ES7417-4XT05-0AB0 Central Processing Unit

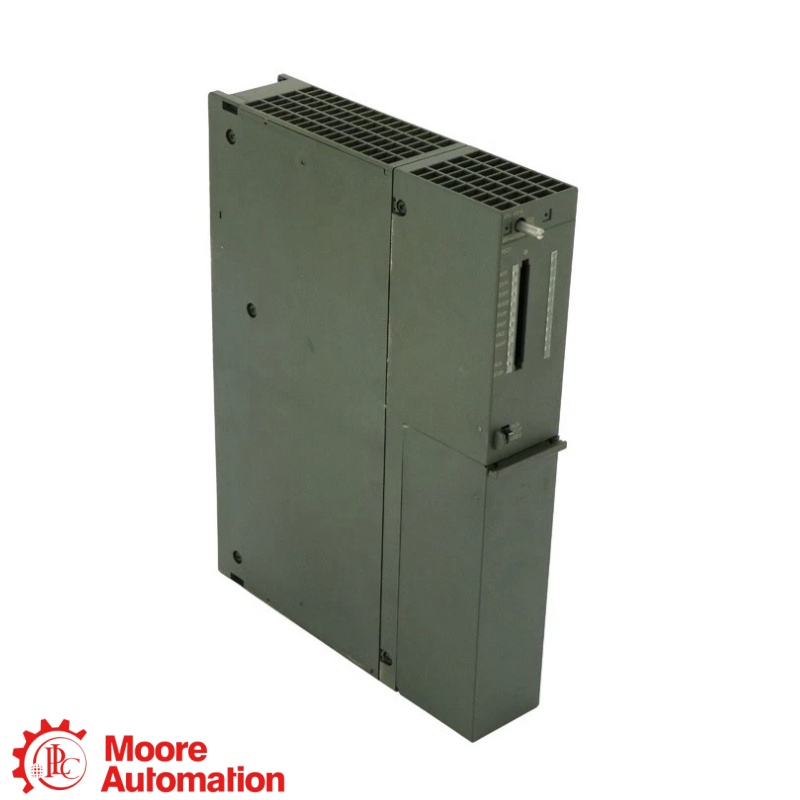

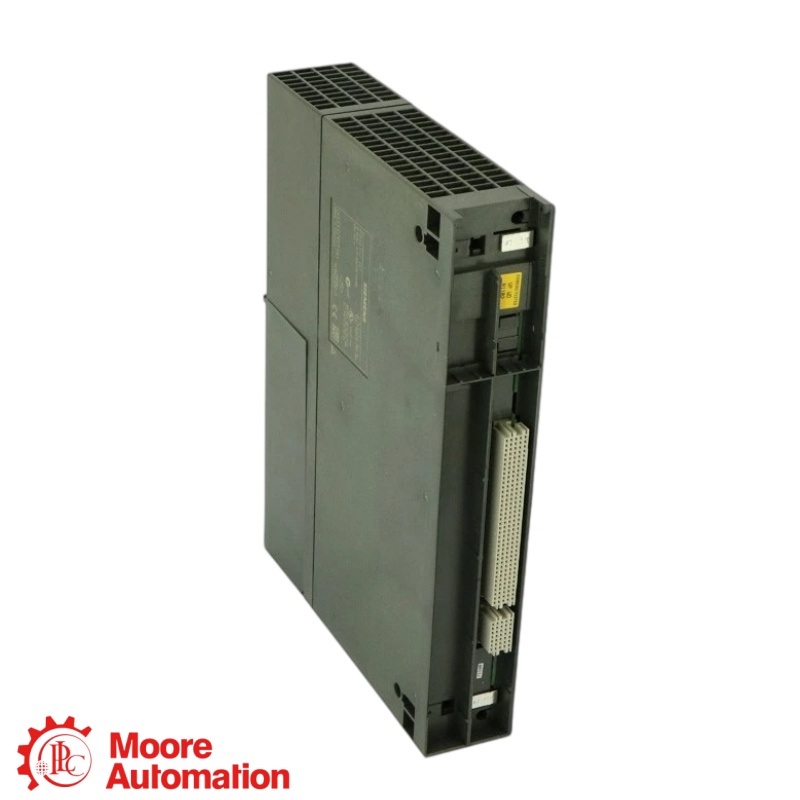

Siemens 6ES7417-4XT05-0AB0 Central Processing Unit
Siemens 6ES7417-4XT05-0AB0 Central Processing Unit
Siemens 6ES7417-4XT05-0AB0 Central Processing Unit

Siemens 6ES7417-4XT05-0AB0 Central Processing Unit

Siemens SIMATIC S7-400 · CPU 417-4

6ES7417-4XT05-0AB0

The 6ES7417-4XT05-0AB0 is a Siemens SIMATIC S7-400 CPU 417-4 central processing unit with 30 MB of work memory, integrated MPI / PROFIBUS DP interfaces and two plug-in IFM interface positions.

HEIGHT290 MM
WIDTH50 MM
DEPTH219 MM
WEIGHT0.92 KG APPROX.
MANUFACTURERSiemens
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
SIEMENS ● SIMATIC S7-400 CPU 417-4 CENTRAL PROCESSING UNIT
Siemens SIMATIC S7-400

6ES7417-4XT05-0AB0

SIMATIC S7-400 · CPU 417-4

SIMATIC S7-400 · CPU 417-4

PRODUCT ROLE
6ES7417-4XT05-0AB0 is a Siemens SIMATIC S7-400 CPU 417-4 central processing unit with 30 MB of work memory and integrated MPI / PROFIBUS DP interfaces.
TECHNICAL CONTEXT
For 6ES7417-4XT05-0AB0, Siemens specifies 15 MB for code and 15 MB for data, one integrated MPI / PROFIBUS DP interface, one integrated PROFIBUS DP interface, and two plug-in IFM interface positions.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Siemens 6ES7417-4XT05-0AB0 ↗
SIMATIC S7-400 CPU 417-4

Engineering data at a glance

Click “+” to expand more specifications.

HEIGHT290 MM
WIDTH50 MM
DEPTH219 MM
WEIGHT0.92 KG APPROX.
Official CPU 417-4 mounting dimensions and module weight for 6ES7417-4XT05-0AB0.
MODEL IDENTITYExact Siemens SIMATIC S7-400 CPU 417-4 article number: 6ES7417-4XT05-0AB0.
General Information −
BrandSiemens
Part number6ES7417-4XT05-0AB0
Product typeCentral Processing Unit
Product familySIMATIC S7-400 / CPU 417-4
SystemSIMATIC S7-400
Work memory30 MB total
Code memory15 MB
Data memory15 MB
Firmware versionV5.3
Net weightApprox. 0.92 kg
Physical Data ＋
Mounting dimensions (W × H × D)50 × 290 × 219 mm
Net weightApprox. 0.92 kg
Slots required2
Function & Configuration ＋
Bit operations18 ns
Word operations18 ns
Fixed-point arithmetic18 ns
Floating-point arithmetic54 ns
First interfaceMPI / PROFIBUS DP
First-interface rateUp to 12 Mbit/s
Second interfaceRS 485 / PROFIBUS DP
Second-interface rateUp to 12 Mbit/s
Source: Siemens Industry Mall and the S7-400 CPU Specifications manual for 6ES7417-4XT05-0AB0.
FAQ

Questions Buyers Ask Most

What type of product is 6ES7417-4XT05-0AB0?＋

6ES7417-4XT05-0AB0 is a Siemens SIMATIC S7-400 CPU 417-4 central processing unit with 30 MB of work memory.

How much work memory does 6ES7417-4XT05-0AB0 provide?＋

Siemens specifies 6ES7417-4XT05-0AB0 with 30 MB of work memory, divided into 15 MB for code and 15 MB for data.

Which communication interfaces are integrated in 6ES7417-4XT05-0AB0?＋

The first interface on 6ES7417-4XT05-0AB0 supports MPI / PROFIBUS DP up to 12 Mbit/s, while the integrated second interface supports PROFIBUS DP.

Which plug-in interface modules can 6ES7417-4XT05-0AB0 use?＋

Siemens specifies two plug-in interface positions for IF 964-DP modules on 6ES7417-4XT05-0AB0.

What processing times are specified for 6ES7417-4XT05-0AB0?＋

Siemens specifies 18 ns for bit, word and fixed-point operations and 54 ns for floating-point operations on 6ES7417-4XT05-0AB0.

What are the mounting dimensions and module weight of 6ES7417-4XT05-0AB0?＋

Siemens specifies mounting dimensions of 50 × 290 × 219 mm and an approximate weight of 0.92 kg for 6ES7417-4XT05-0AB0.

What should be checked before ordering 6ES7417-4XT05-0AB0?＋

For 6ES7417-4XT05-0AB0, confirm the complete article number, 30 MB work memory, required MPI / PROFIBUS DP interfaces, IF 964-DP expansion needs and Siemens replacement status.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete article number, required memory and communication interfaces for availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Product Information for
6ES7417-4XT05-0AB0

Official Siemens product and CPU specification information for the exact article number 6ES7417-4XT05-0AB0.

Official Siemens CPU specifications

The official Siemens S7-400 CPU Specifications manual includes a dedicated specification section for CPU 417-4 6ES7417-4XT05-0AB0.

OPEN OFFICIAL SIEMENS CPU SPECIFICATIONS

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Siemens identifies 6ES7417-4XT05-0AB0 as a SIMATIC S7-400 CPU 417-4 central processing unit with 30 MB of work memory, MPI / PROFIBUS DP communication and two plug-in IFM interface positions.

MODEL IDENTIFICATION

Exact Siemens reference for 6ES7417-4XT05-0AB0

6ES7417-4XT05-0AB0 is the complete Siemens article number for this SIMATIC S7-400 CPU 417-4 central processing unit with 30 MB of work memory and integrated MPI / PROFIBUS DP interfaces.

Siemens · BRAND
Siemens SIMATIC S7-400CPU 417-4
EXACT ARTICLE NUMBER

6ES7417-4XT05-0AB0

Use the complete article number 6ES7417-4XT05-0AB0 together with its 30 MB work memory, CPU 417-4 identity and required MPI / PROFIBUS DP interfaces when matching this product.

Product identification: Siemens SIMATIC S7-400 CPU 417-4 central processing unit, 30 MB work memory, integrated MPI / PROFIBUS DP interfaces, article number 6ES7417-4XT05-0AB0.
APPLICATION AREAS

Application functions for 6ES7417-4XT05-0AB0

S7-400 CPU 417-4 Control ProcessingExecution of large SIMATIC S7-400 control programs using 30 MB of work memory
PROFIBUS DP ControlIntegrated second interface supports PROFIBUS DP master and DP slave operation
INDUSTRIAL AUTOMATION APPLICATIONS 6ES7417-4XT05-0AB0 SIMATIC S7-400 · CPU 417-4
MPI / PROFIBUS CommunicationsFirst interface supports MPI and PROFIBUS DP communication up to 12 Mbit/s
Expandable DP InterfacesThird and fourth interfaces accept plug-in IF 964-DP interface modules
