Marca :
SiemensNúmero de parte :
6ES7155-5AA01-0AB0Peso :
0.32kgDimensión :
35 mm (W) × 147 mm (H) × 129 mm (D)País de origen :
GermanyCódigo hs :
8537101190Descripción :

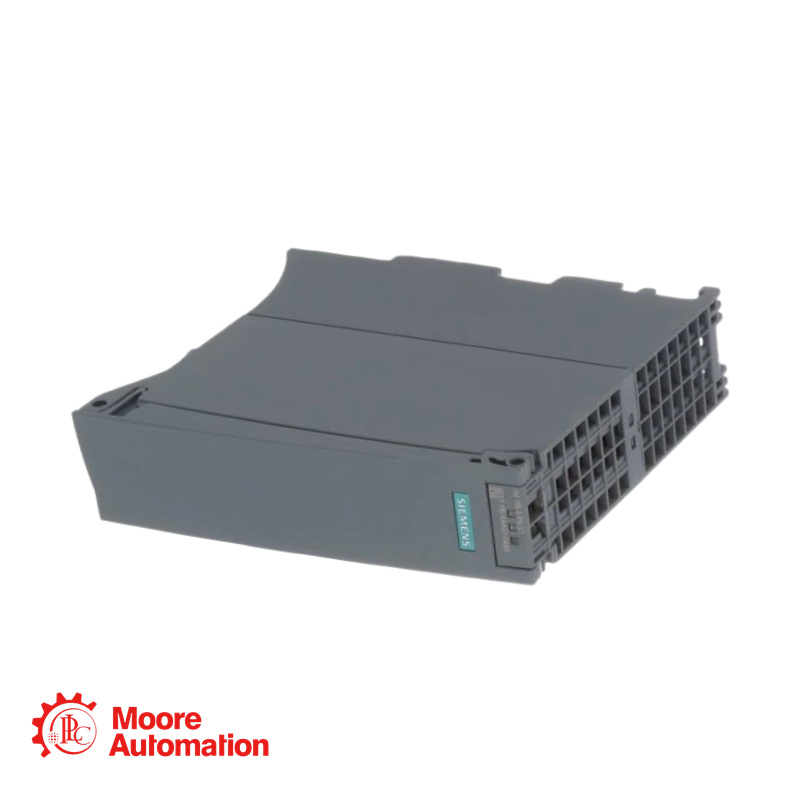

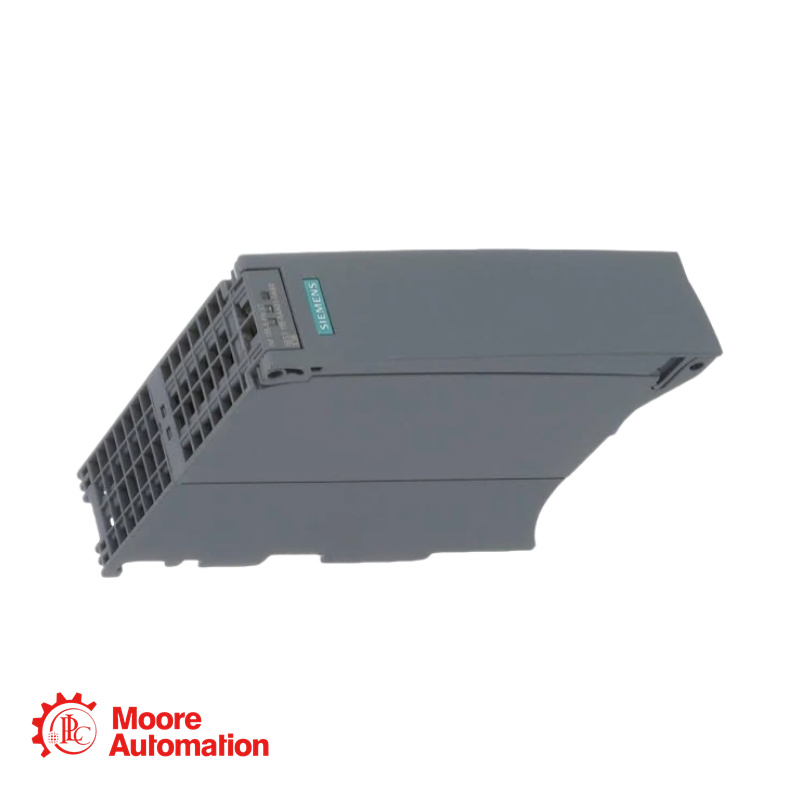

I/O-DEVICE INTERFACEMODULE
Product Datasheet
Product type designation: IM 155-5 PN ST
Article number (MLFB): 6ES7155-5AA01-0AB0
Hardware functional status: from FS01
Firmware version: V4.1.0
Firmware update possible: Yes
VendorID: 0x002A
DeviceID: 0x0312
Configuration software: STEP 7 TIA Portal from V15, GSD file for PROFINET (GSDML V2.3)
Integrated system power supply: Yes, 14 W
System power supply position: Can be plugged in to the left of the interface module
Number of power segments: 3 (including interface module)
Max. number of I/O modules: 30 (with additional power supply), 12 (without additional PS)
Max. number of submodules per station: 256 (9 per I/O module)
Address space per module: 256 bytes (input and output data each)
Address space per station: 512 bytes (input and output data each)
PROFINET interfaces: 1 interface with 2 ports (integrated switch)
Port type: RJ45 (Ethernet)
Transmission speed: 100 Mbps full duplex (100BASE-TX)
Equidistance/shortest clock pulse: 250 µs
Max. bus cycle time (TDP): 250 µs
Jitter (max.): 1 µs
Supply voltage: 24 VDC (range: 19.2 V to 28.8 V)
Reverse polarity protection: Yes
Short-circuit protection: Yes
Mains buffering: 10 ms stored energy time
Current consumption (rated): 0.2 A at 24 VDC (no load)
Max.current consumption: 1.2 A
Max.inrush current: 9 A
Infeed power to backplane bus: 14 W
Power consumption from backplane bus: 2.3 W (with separate system PS to the left)
Typical power loss: 4.5 W
Isolation test voltage: 707 V DC (type test)
Operating temperature (horizontal): -25 °C to 60 °C (from FS03)
Operating temperature (vertical): -25 °C to 40 °C (from FS03)
Max. installation altitude: 5000 m (restrictions above 2000 m)
