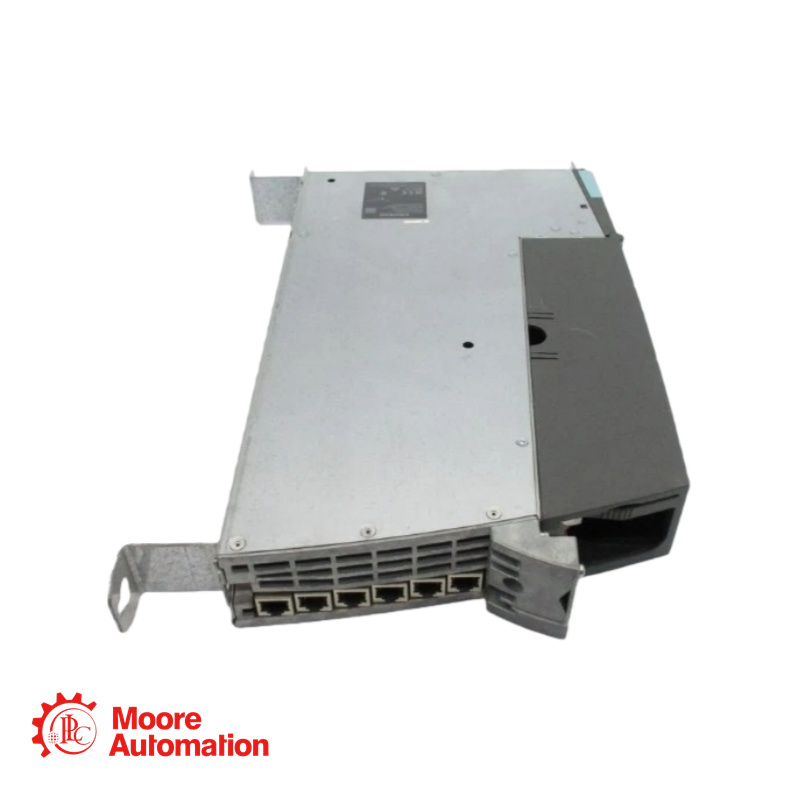

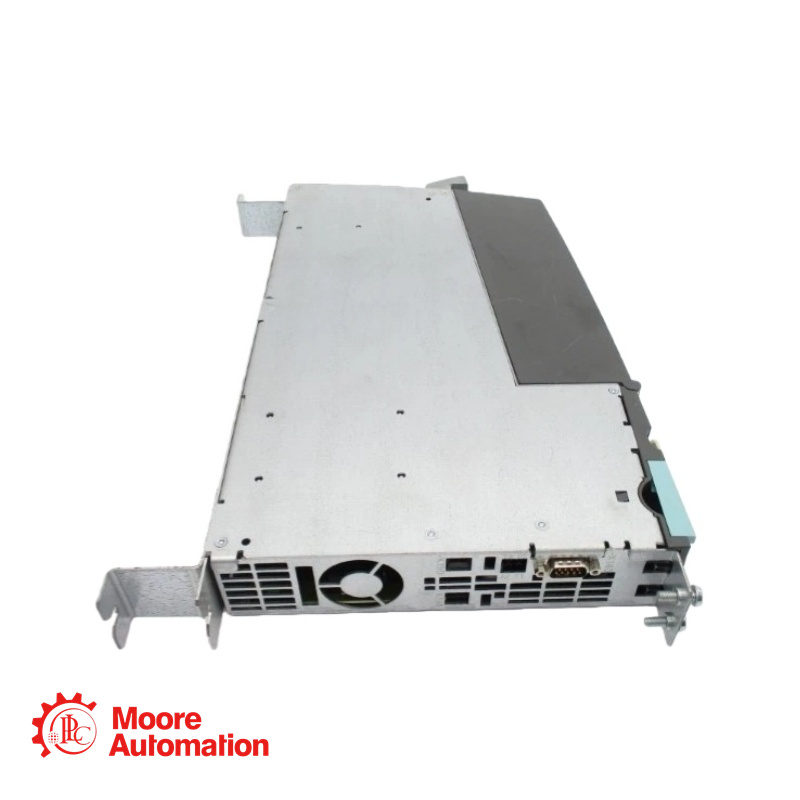

The Siemens SIMOTION D435-2 DP/PN (6AU1435-2AD00-0AA0) is a high-performance, drive-based motion control unit in the STANDARD performance class.
Marca :
SiemensNúmero de parte :
6AU1435-2AD00-0AA0Peso :
3.7 kgDimensión :
380 mm x 50 mm x 270 mmPaís de origen :
GermanyCódigo hs :
8537101190Descripción :
Motion Control Unit
Get in Touch:
Sales Manager:Frida
Phone/Whatsapp:+86 15359408275
Email: sales5@mooreplc.com
Quick Facts
Memory:
RAM (Work Memory): 109 Mbyte
Additional RAM for Java: 20 Mbyte
RAM Disk (Load Memory): 50 Mbyte
Retentive Memory: 364 kbyte
Persistent Memory (CF Card): 1.5 Gbyte
Power Supply:
DC Supply Voltage: 24 V (Range: 20.4 V to 28.8 V)
Typical Current Consumption: 1000 mA (with no load on I/O, no 24V supply via DRIVE-CLIQ/PROFIBUS)
Typical Inrush Current: 5 A
Typical Power Loss: 24 W
Performance & Cycle Times:
Maximum Number of Axes: 32
Minimum Cycle Clocks:
PROFIBUS: 1 ms
PROFINET Send: 0.25 ms
Interpolator: 0.25 ms
Servo: 0.25 ms (for SERVO or SERVO-FAST)
DRIVE-CLIQ Interfaces: 6
USB Ports: 2
Industrial Ethernet Ports: 2
Digital Inputs (DI): 12
Voltage: 24 V nominal (Signal "1": 15...30 V; Signal "0": -3...+5 V)
Isolation: Yes, in groups of 6
Typical Input Current ("1"): 9 mA
Digital Inputs/Outputs (DI/DO): 16
Load Voltage: 24 V nominal (20.4 V to 28.8 V)
Max. Current per Output: 500 mA
Max. Leakage Current: 2 mA
Typical/Max. Output Delays: "0"→"1": 150 µs / 400 µs; "1"→"0": 75 µs / 150 µs
Cam Output Reproducibility/Resolution: 10 µs / 1 µs
Max. Switching Frequency: Resistive load: 4 kHz; Inductive load: 2 Hz; Lamp load: 11 Hz
Ambient Temperature (Operation): 0 °C to +55 °C (Derates above 2000 m altitude)
Ambient Temperature (Storage): -25 °C to +55 °C
Ambient Temperature (Transport): -40 °C to +70 °C
Relative Humidity (Operation): 5% to 95% (non-condensing)
