Marca :
ABBNúmero de parte :
SD854 3BSE088189R1Peso :
0.83 kgDimensión :
127 mm * 48 mm * 124 mmPaís de origen :
SwedenCódigo hs :
8537101190Descripción :

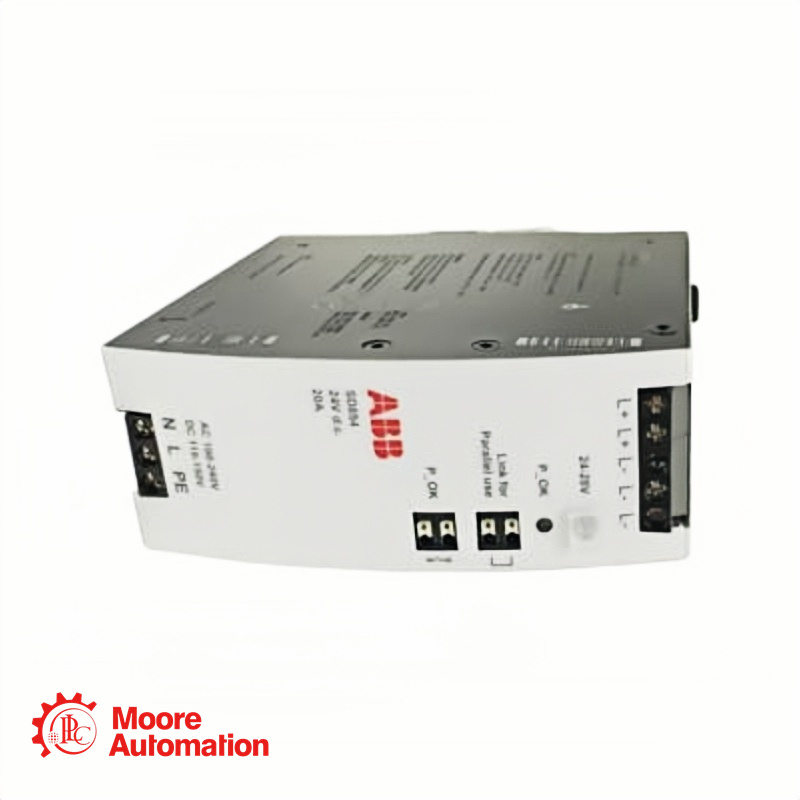

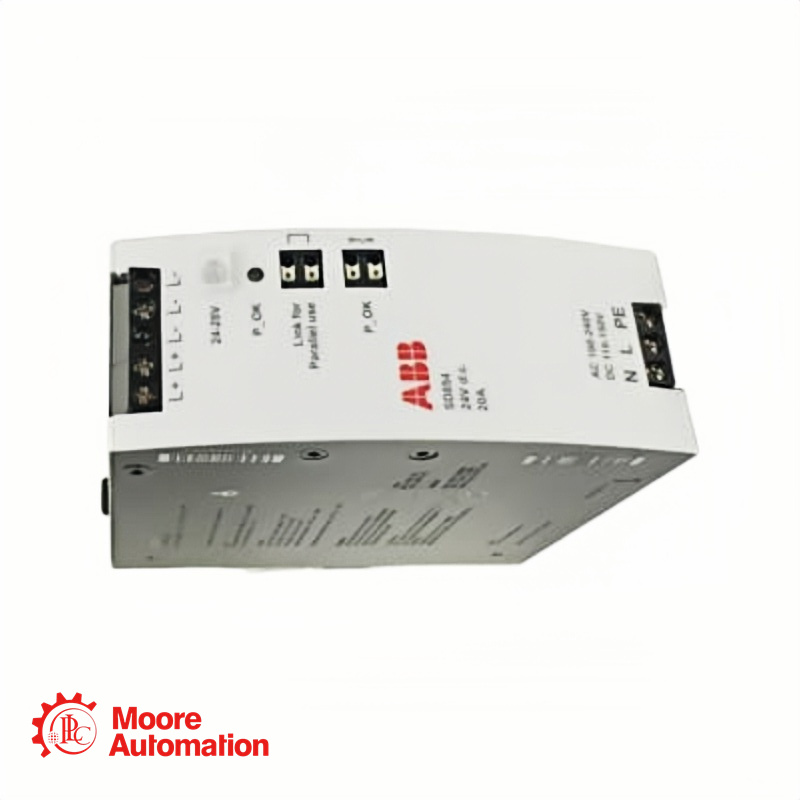

Power Supply Unit
※Contact & Order
✉ Email: sales5@mooreplc.com
※Executive Summary
The SD85x series complies for use in potentially explosive atmospheres (IECEx Zone 2 and ATEX Zone 2). The SD85x series has a built-in power reserve and can easy breaking fuses due to high overload peak current capability.
※General Information
Field
Value
Article number
3BSE088189R1
Type
Power supply
Rated output current
20 A
Rated output power
480 W
Rated output voltage
24 V d.c.
Mains/input voltage, nominal
100-240 V a.c. 110-150 V d.c.
Applications
SELV and PELV
Efficiency
92.4/95.6 % @120/230 V a.c.
|
※Core Data |
|
|
Parameter |
Specification |
|
Mains frequency |
50 - 60 HZ +/- 6% |
|
Primary peak inrush current at power on |
< 10 A |
|
Load sharing |
Parallell connection |
|
Supervision relay |
Yes |
|
Power Factor (at rated output power) |
0.99/0.95 |
|
Heat dissipation |
29.6 W / 22.1 W, 120/230 V a.c. |
|
Output voltage regulation at max. current |
100 mV |
|
Secondary voltage holdup time at mains blackout |
32 ms |
|
Maximum ambient temperature |
70 °C |
|
Primary: Recommended external fuse |
10-20 A |
|
Secondary: Short circuit |
Hiccup (2s on 18s off) |
|
Output over voltage protection |
max 32 V DC |
|
AC input current |
4.26 A / 2.23 A |
|
AC inrush current |
10 A / 4.5 A peak |
※Applications
Pumped storage:Synchronizing in both pump and turbine modes
Industrial cogeneration:Paralleling with public utility under varying load
Offshore/marine:Redundant synchronizing for critical vessel power
|
