 /Schneider Electric RM1-XA315 RM1XA315 TeSys Single-Pole Magnetic Overcurrent Relay

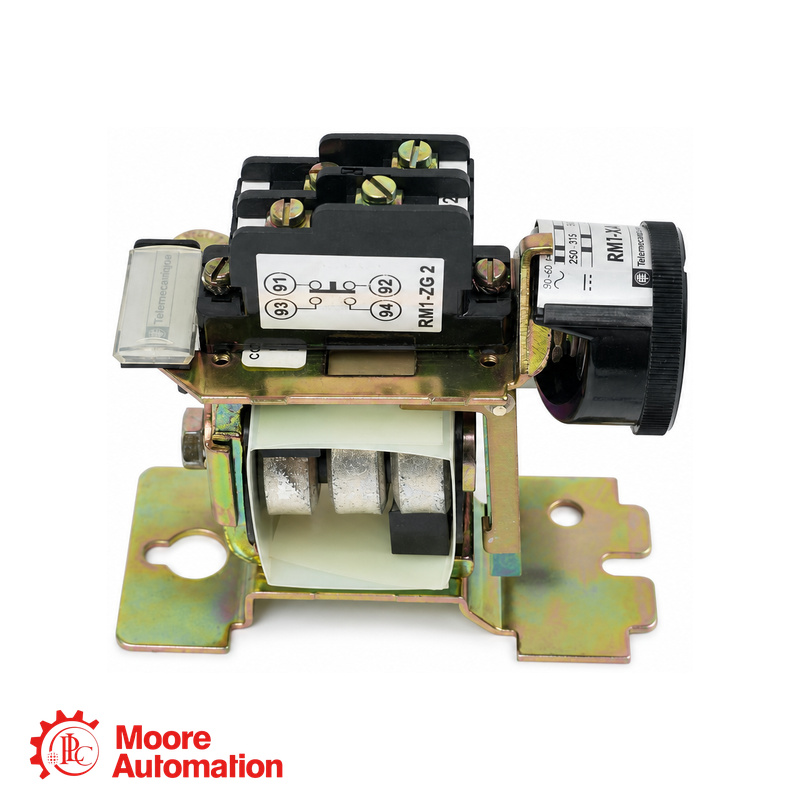

Schneider Electric RM1-XA315 RM1XA315 Magnetic Overcurrent Relay

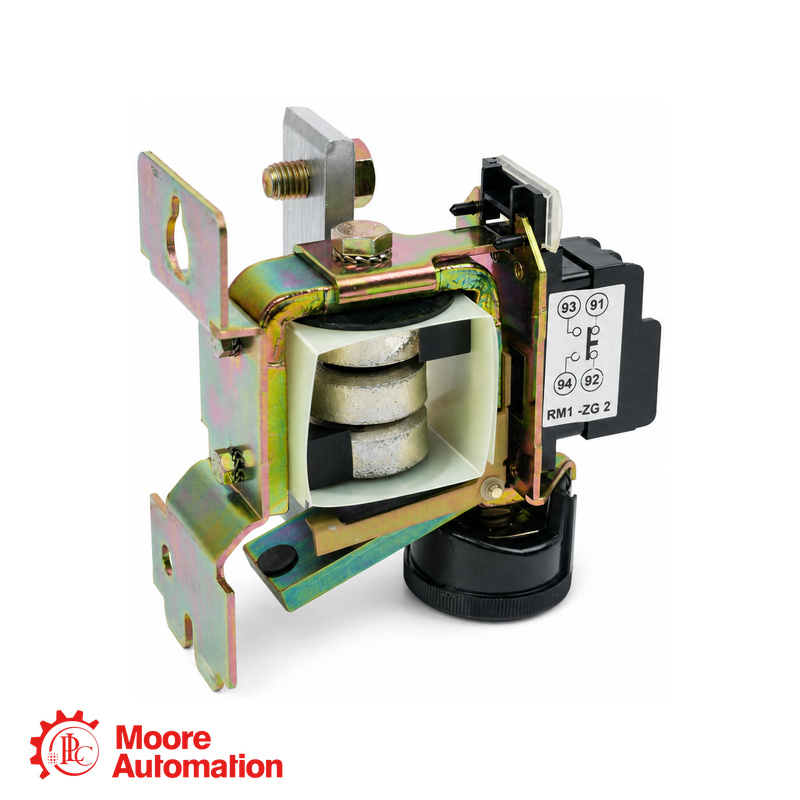

Schneider Electric RM1-XA315 RM1XA315 Magnetic Overcurrent Relay
Schneider Electric RM1-XA315 RM1XA315 Magnetic Overcurrent Relay

Schneider Electric RM1-XA315 RM1XA315 TeSys Single-Pole Magnetic Overcurrent Relay

TeSys RM1 · MAGNETIC OVERCURRENT RELAY

RM1-XA315

The Schneider Electric RM1-XA315 (RM1XA315) is a TeSys RM1 single-pole magnetic overcurrent relay with a 315 A maximum continuous current rating and non-latching operation.

FAMILYTeSys RM1
RELAY TYPEMagnetic
MAX CURRENT315 A
OPERATIONNon-latching
MANUFACTURERSchneider Electric
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
SCHNEIDER ELECTRIC ● TeSys RM1 SERIES
TeSys RM1 MAGNETIC OVERCURRENT RELAY

RM1-XA315

CATALOG REFERENCE: RM1XA315

Single-Pole Magnetic Overcurrent Relay

PROTECTION ROLE
RM1-XA315 is listed by Schneider Electric in the TeSys RM1 range of single-pole magnetic overcurrent relays. The catalog identifies this reference as a non-latching relay with one changeover contact.
CURRENT SELECTION NOTE
For RM1-XA315, the official catalog gives a 146–230 A recommended motor-current range, a 250–800 A setting range and 315 A maximum continuous current.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
PRODUCT IDENTIFICATION

RM1-XA315 Model Identification

RM1-XA315 corresponds to Schneider Electric catalog reference RM1XA315. The manufacturer catalog identifies this model as a non-latching single-pole magnetic overcurrent relay with one changeover contact and a 315 A maximum continuous current rating.

MODELRM1-XA315
CATALOG REFERENCERM1XA315
MOTOR CURRENT146–230 A
SETTING RANGE250–800 A
VERIFIED MANUFACTURER-REFERENCE DATA

Technical Specifications

SCHNEIDER ↗
RM1-XA315

Engineering data at a glance

Click “+” to expand more specifications.

LENGTH12.3 cm
WIDTH8.3 cm
HEIGHT12.3 cm
WEIGHT1.05 kg
Product arrival inspection record.
Selection verificationConfirm the complete nameplate, motor full-load current and required trip setting before replacing or ordering RM1-XA315.
General Information −
BrandSchneider Electric
Catalog referenceRM1XA315
Displayed modelRM1-XA315
Product typeSingle-pole magnetic overcurrent relay
Product familyTeSys RM1
Operating modeNon-latching
Current Ratings ＋
Recommended motor current (In)146–230 A
Setting / trip current range250–800 A
Maximum continuous current315 A
Contact and Operation ＋
Auxiliary contact1 C/O contact block
Catalog sectionSingle-pole magnetic overcurrent relays
Source: Schneider Electric TeSys Overload Relays catalog, TeSys RM1 single-pole magnetic overcurrent relays, B11/50–B11/51.
FAQ

Questions Buyers Ask Most

What is RM1-XA315 used for?＋

RM1-XA315 is a Schneider Electric TeSys RM1 single-pole magnetic overcurrent relay used for overcurrent protection selection in accordance with the relay setting and motor-current ranges published in the manufacturer catalog.

What current ranges apply to RM1-XA315?＋

RM1-XA315 has a recommended motor-current range of 146–230 A, a setting range of 250–800 A and a maximum continuous current rating of 315 A in the Schneider Electric catalog.

Is RM1-XA315 a latching relay?＋

No. The manufacturer catalog lists RM1-XA315 as a non-latching TeSys RM1 relay with one changeover contact.

Which product family includes RM1-XA315?＋

RM1-XA315 belongs to the Schneider Electric TeSys RM1 family of single-pole magnetic overcurrent relays.

What should I provide for a RM1-XA315 quotation?＋

Send the complete catalog reference, quantity, motor full-load current, required trip setting, destination and clear nameplate photos. Contact Frida at sales5@mooreplc.com or WhatsApp +86 153 5940 8275.

CONTACT PRODUCT SPECIALIST

Check RM1-XA315 with Frida

Share the complete model, current range and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
RM1-XA315

Product information is limited to Schneider Electric manufacturer-reference data for the TeSys RM1 range.

RM1-XA315 Product Documentation

No public product-specific official datasheet was located for RM1-XA315 / RM1XA315. The verified values on this page come from the Schneider Electric TeSys Overload Relays catalog. For product-specific documentation, contact product specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, current range and your technical or purchasing question.

Technical statements on this product page are limited to Schneider Electric manufacturer documentation. No third-party product sources were used.

TeSys RM1 PRODUCT RELATIONSHIP

How RM1-XA315 fits into the Schneider Electric TeSys RM1 range

Schneider Electric is the manufacturer; TeSys RM1 is the product family; and RM1XA315 is the catalog reference for a non-latching single-pole magnetic overcurrent relay with one changeover contact.

CURRENT SELECTION

146–230 A

Recommended motor-current range stated in the manufacturer catalog.

SETTING RANGE

250–800 A

Magnetic overcurrent setting range for the RM1XA315 catalog reference.

OPERATING MODE

Non-latching

Single-pole magnetic relay with one changeover contact.

Selection note: verify the motor full-load current and required trip setting before ordering.
