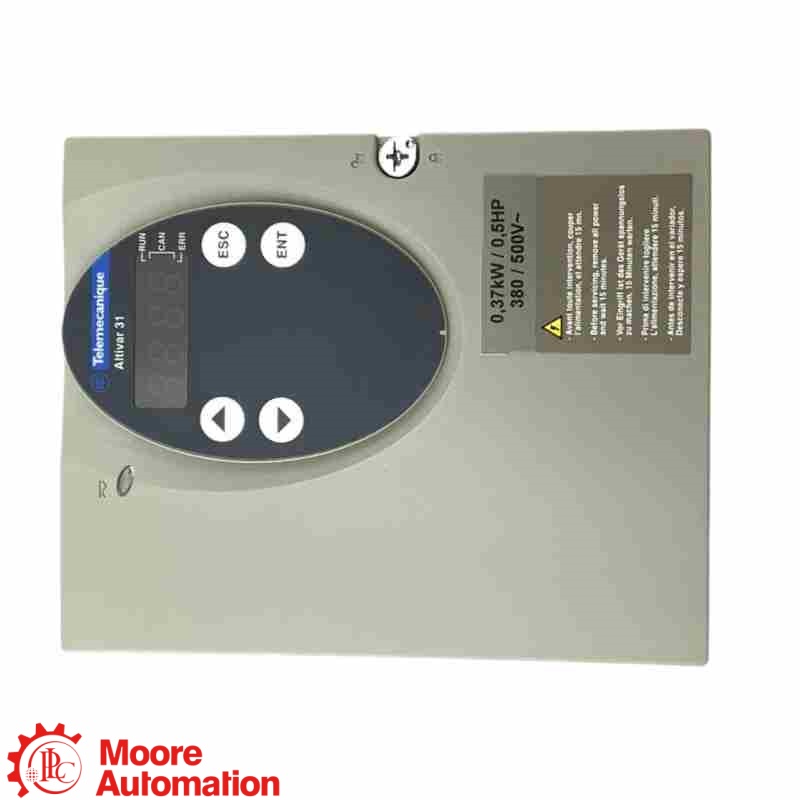

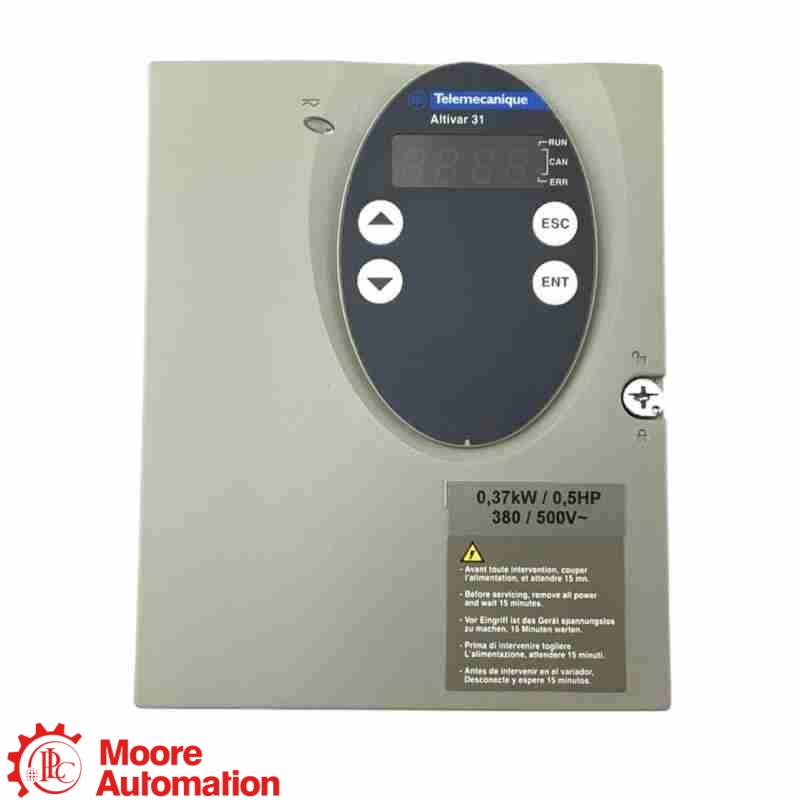

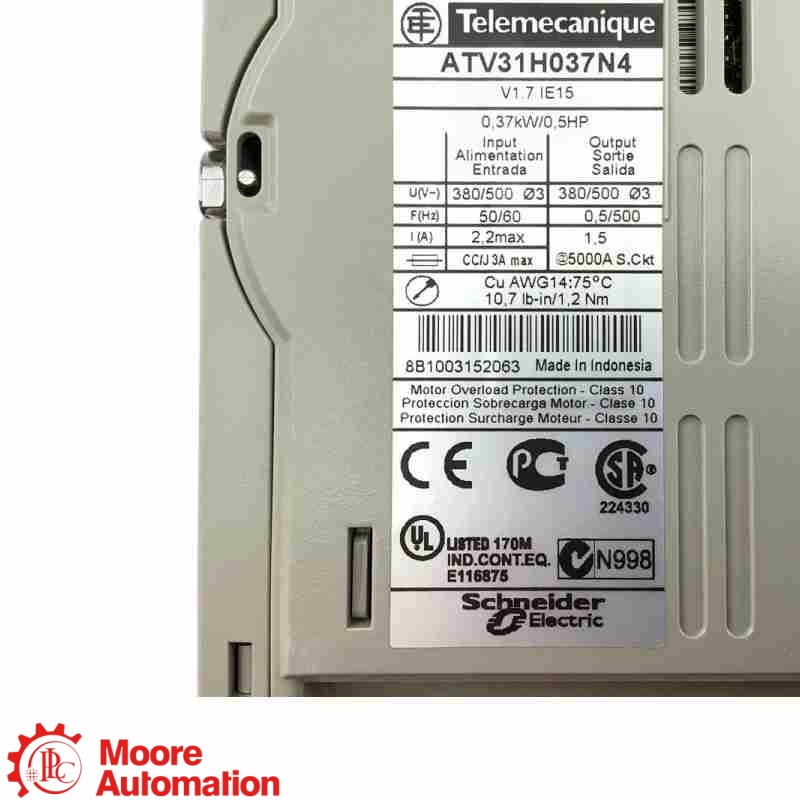

Schneider Electric ATV31H037N4 Altivar 31 0.37 kW Variable Speed Drive
Schneider Electric ATV31H037N4 Altivar 31 0.37 kW Variable Speed Drive
Schneider Electric ATV31H037N4 Altivar 31 0.37 kW Variable Speed Drive

Schneider Electric ATV31H037N4 Altivar 31 0.37 kW Variable Speed Drive

ALTIVAR 31 · VARIABLE SPEED DRIVE

ATV31H037N4

The Schneider Electric ATV31H037N4 is a Altivar 31 variable speed drive. Schneider Electric identifies this exact model as 0.37 kW / 0.5 hp for 380...500 V AC, 3 phase. Confirm the complete type code, motor data and installed application before replacement.

POWER0.37 kW / 0.5 hp
SUPPLY380...500 V AC, 3 phase
OUTPUT1.5 A
STATUSDiscontinued
MANUFACTURERSchneider Electric
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Pregunte ahora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
SCHNEIDER ELECTRIC ● ALTIVAR 31 VARIABLE SPEED DRIVE
VARIABLE SPEED DRIVE

ATV31H037N4

OFFICIAL SCHNEIDER ELECTRIC REFERENCE

0.37 kW / 0.5 hp · 380...500 V AC, 3 phase

PRODUCT ROLE
ATV31H037N4 is a Schneider Electric Altivar 31 variable speed drive rated 0.37 kW / 0.5 hp for 380...500 V AC, 3 phase.
LIFECYCLE AND REPLACEMENT
ATV31H037N4 is listed as discontinued. Schneider Electric identifies ATV320U04N4C as the recommended replacement; confirm the motor, mains supply, wiring, enclosure and installed-system compatibility before substitution.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the ATV31H037N4 order number is structured

ATV31
Platform familySchneider Electric Altivar 31 variable speed drive family
H037
Construction and powerHeatsink drive, 0.37 kW / 0.5 hp code
N4
Voltage class380...500 V AC three-phase supply class
VERIFIED MANUFACTURER-REFERENCE DATA

Technical Specifications

SCHNEIDER ↗
ATV31H037N4

Engineering data at a glance

Click “+” to expand more specifications.

PRODUCT TYPEVariable Speed Drive
SUPPLY380...500 V AC, 3 phase
OUTPUT CURRENT1.5 A
STATUSDiscontinued
Official Schneider Electric product record.
Replacement verificationSchneider Electric lists ATV320U04N4C as the recommended replacement. Confirm the motor, mains supply, wiring, enclosure and installed-system compatibility before substitution.
General Information −
BrandSchneider Electric
Catalog numberATV31H037N4
Product designationAltivar 31 VSD 0.37 kW / 0.5 hp
Product typeVariable speed drive
Product familyAltivar 31
Output current1.5 A
Electrical Data ＋
Input supply380...500 V AC, 3 phase
Nominal output current1.5 A
Maximum transient current2.3 A
Lifecycle and Replacement ＋
Commercial statusDiscontinued
Recommended replacementATV320U04N4C
Replacement checkVerify drive ratings and enclosure
CompatibilityVerify motor, wiring and installed system
Source: Schneider Electric official ATV31 product record and Altivar 31 catalog. Verify the complete type code and installed application before replacement.
FAQ

Questions Buyers Ask Most

What type of product is ATV31H037N4?＋

ATV31H037N4 is a Schneider Electric Altivar 31 variable speed drive rated 0.37 kW / 0.5 hp for 380...500 V AC, 3 phase.

What power and supply ratings apply to ATV31H037N4?＋

Schneider Electric identifies ATV31H037N4 as a 0.37 kW / 0.5 hp drive for 380...500 V AC, 3 phase, with 1.5 A nominal output current.

Is ATV31H037N4 discontinued?＋

Yes. Schneider Electric lists ATV31H037N4 as discontinued.

Which replacement does Schneider Electric list for ATV31H037N4?＋

Schneider Electric lists ATV320U04N4C as the recommended replacement for ATV31H037N4.

What must be checked before replacing ATV31H037N4?＋

Confirm the complete type code, motor data, 380...500 V AC, 3 phase supply, wiring, enclosure and installed-system compatibility before replacing ATV31H037N4.

CONTACT PRODUCT SPECIALIST

Check ATV31H037N4 with Frida

Share the complete ATV31H037N4 type code, motor data, mains supply, application, quantity and a clear nameplate photo for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
ATV31H037N4

Official Schneider Electric product-record and Altivar 31 catalog status for ATV31H037N4.

Official datasheet status

No public product-specific official datasheet was located for ATV31H037N4. Schneider Electric's official ATV31 product record and catalog confirm a 0.37 kW / 0.5 hp variable speed drive for 380...500 V AC, 3 phase, with 1.5 A nominal output current, discontinued status and ATV320U04N4C as the recommended replacement.

CONTACT FRIDA

Contact to Get Support

Send the complete type code, motor data, mains supply, wiring, enclosure, quantity, nameplate photo and your technical or purchasing question.

Technical statements on this product page are limited to Schneider Electric manufacturer documentation. No third-party product sources were used.

MODEL IDENTIFICATION

How the ATV31H037N4 order number is structured

ATV31H037N4 is a Schneider Electric Altivar 31 variable speed drive reference. Its three catalog segments identify the drive family, heatsink and power code, and 380...500 V AC three-phase supply class.

DRIVE FAMILYATV31 · Altivar 31 variable speed drive family
→
CONSTRUCTION / POWERH037 · Heatsink drive, 0.37 kW / 0.5 hp code
→
VOLTAGE CLASSN4 · 380...500 V AC three-phase supply
Family Segment

ATV31 identifies the Schneider Electric Altivar 31 variable speed drive family.

Construction / Power Segment

H037 identifies the heatsink drive construction and 0.37 kW / 0.5 hp power code.

Voltage Segment

N4 identifies the 380...500 V AC three-phase supply class.

Interpretation Limit

Use the complete ATV31H037N4 catalog number for identification; do not infer undocumented characteristics from individual digits.

VERIFICATION EVIDENCE

Evidence needed to verify ATV31H037N4 correctly

Product Identity

Match ATV31H037N4 to the complete drive nameplate and Schneider Electric type code.

Installation Context

Document the installed motor, mains supply, wiring, enclosure and application.

PRODUCT REFERENCEATV31H037N4Altivar 31 variable speed drive
Configuration Evidence

Use the full nameplate, installed-system records and Schneider official product data to verify identity and compatibility.

Replacement Check

Confirm motor rating, mains supply, wiring, enclosure and installed-system compatibility before using ATV320U04N4C as the replacement.
