PLC 25B-D037N114 Inverter Drive

Contact Information

25B-D037N114 Specifications

25B-D037N114 Description

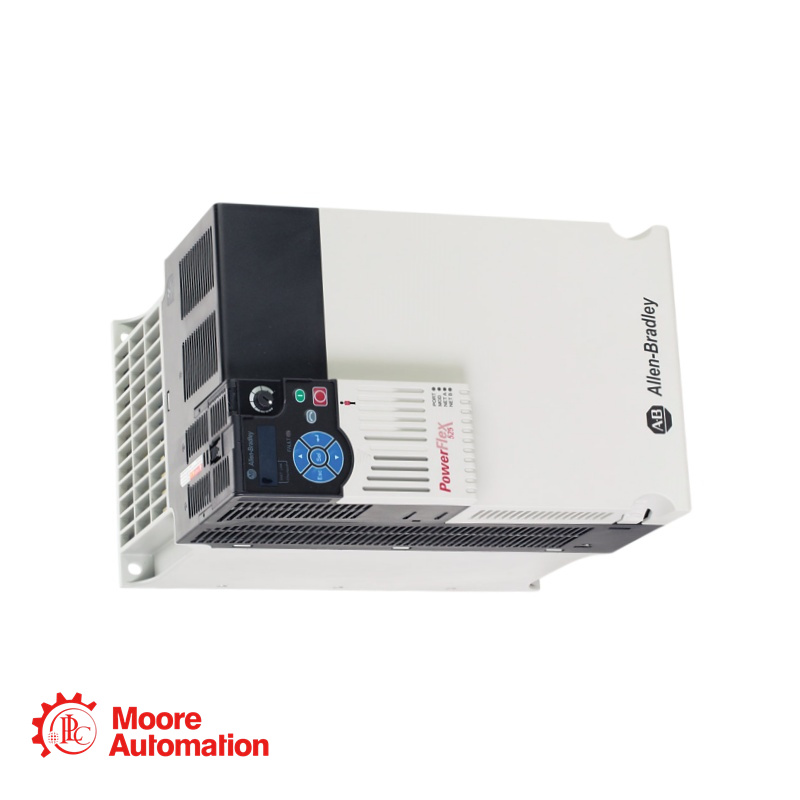

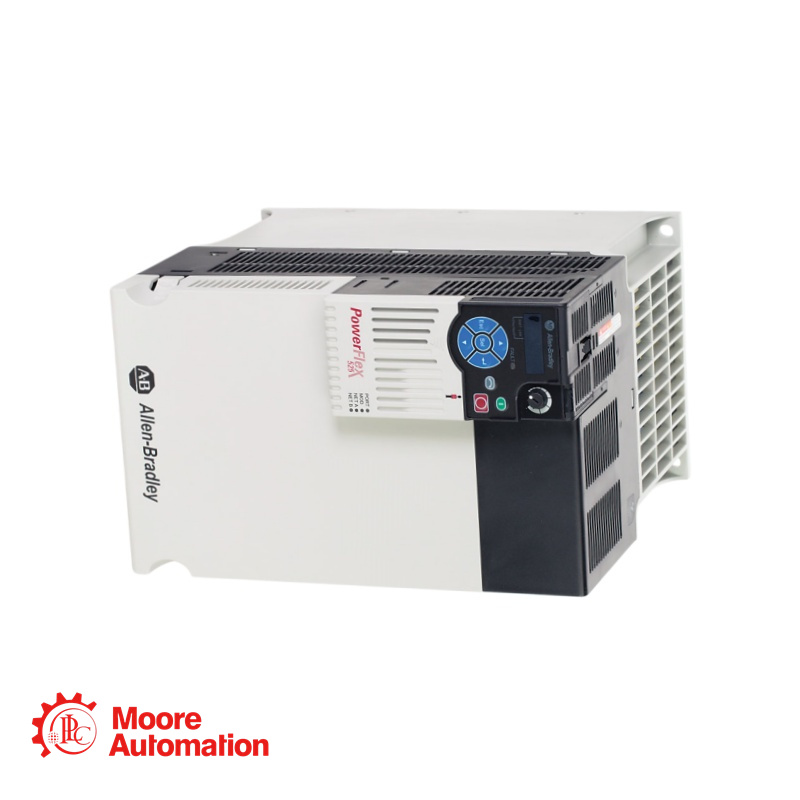

Experience dependable and versatile motor control and greater ease-of-use with the 525 Three Phase 25B-D037N114 Inverter Drives. These AC drives are a cost-effective, ideal solution for networked machines and system integration and are highly suitable for applications such as conveyors, fans, pumps, and mixers.

The innovative 525 25B-D037N114 AC drives offer a modular design which ensures quick and simple installation and configuration to save you valuable time as well as panel space. They provide efficient USB programming, integral EtherNet/IP™ communications, flexible mounting options, application-specific configuration, and standard safety features. They also offer a compact footprint and these resilient Variable Frequency Drives can operate at high temperatures, working up to 70°C (158 °F) with current derating and a control module fan kit.

These devices support a wide variety of motor control options due to their power rating of 0.4...22 kW (0.5...30 Hp), with global voltage classes of 100...600V. The PowerFlex 525 features an integral human interface module (HIM), which supports multiple languages and features descriptive. They include a Safe Torque-off feature which is certified at PLd/SIL2 Cat 3, this function removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system. With the Economizer control mode and energy monitoring features energy costs can be reduced.

25B-D037N114 Alternative names

25B-D037N114 FAQ

What is the 25B-D037N114 AC Drive?

The 25B-D037N114 is a PowerFlex 525 AC Drive. It is a compact, cost-effective drive with embedded EtherNet/IP™ communications, designed for integrated applications requiring reliable motor speed and torque control.

What does the part number 25B-D037N114 signify?

The part number breaks down as follows:
25B: PF 525 Series
D: 380...480V AC, 3 Phase voltage class
037: 37 Amps output current
N: With EMC filter (filtered emission class)
114: Frame E, IP20 NEMA/Open Type enclosure with Standard interface module

What types of motor control does this drive support?

The PowerFlex 525 drive supports multiple control modes, including:
V/Hz (Volts per Hertz): Standard control for general-purpose applications
Sensorless Vector Control: Provides better torque performance without a feedback device
Closed Loop Velocity Vector Control: Requires an encoder feedback device for high-precision speed and torque control
Permanent Magnet Motor Control: For use with permanent magnet motors

Does this drive have an integrated keypad?

Yes. This model includes an integral keypad with potentiometer and LED display (Standard Interface Module). This allows for local programming, monitoring, and troubleshooting without requiring additional hardware.

What are the embedded I/O capabilities?

The drive features built-in I/O for flexible control:
Discrete Inputs: Seven (7) sink/source
Discrete Outputs: Two (2) digital/optocoupler; One (1) N.O. and One (1) N.C. relay contact
Analog Input: Two (2) 0-10VDC / 0-20mA
Analog Output: One (1) 0-10VDC / 0-20mA
