PLC 25A-D010N104 4 kW Three-Phase AC Drive

Product Overview

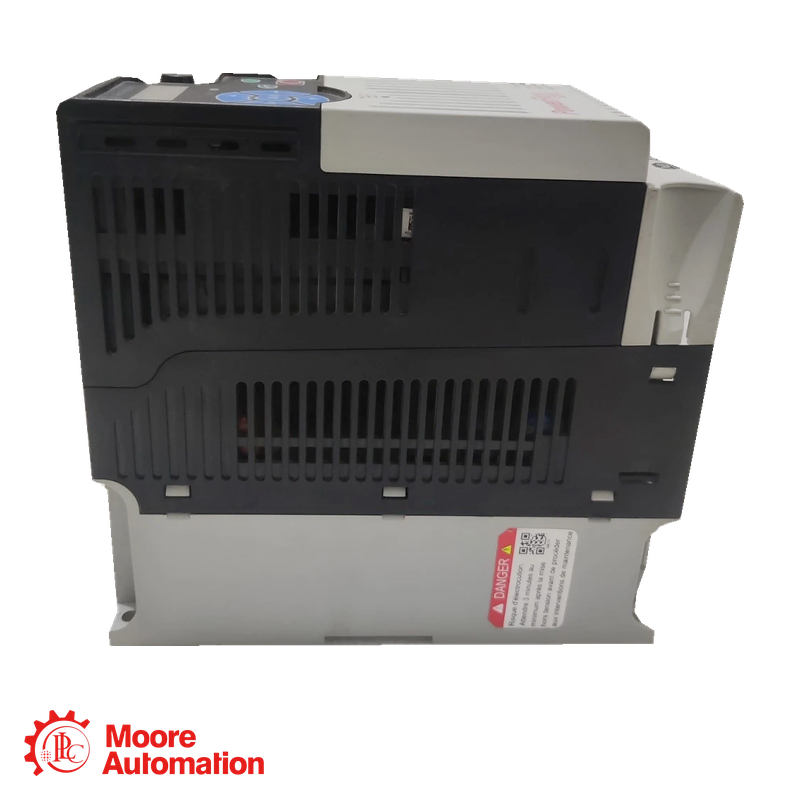

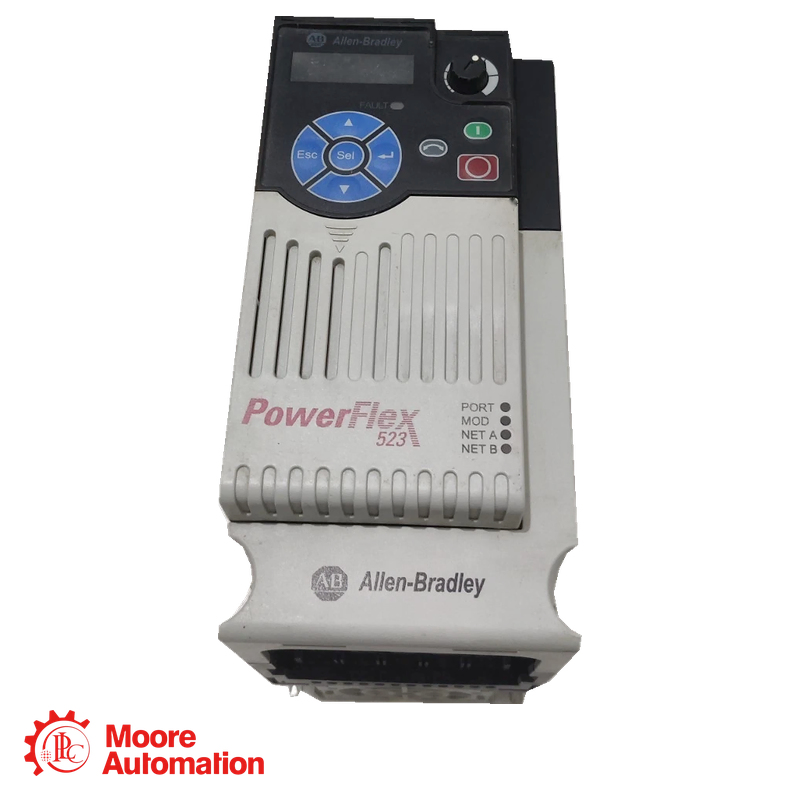

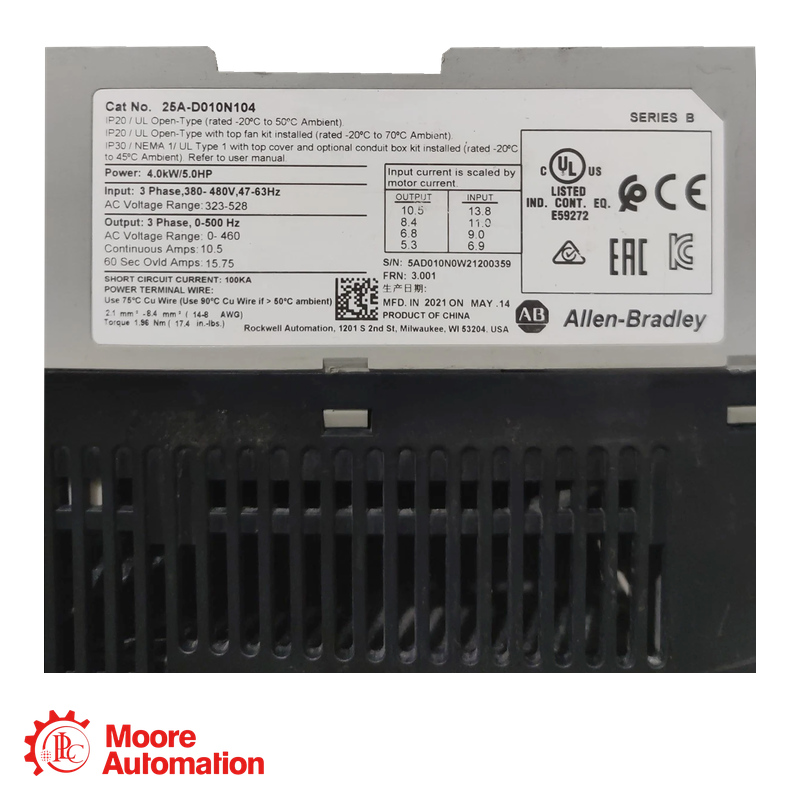

The 25A-D010N104 is a variable frequency AC drive for controlling the speed and torque of three-phase induction motors. It accepts a 380–480V AC three-phase input and provides a rated output current of 10.5 A. This model supports a motor rating of 4 kW or 5 Hp in both normal-duty and heavy-duty applications. Its programmable output-frequency range of 0 to 500 Hz allows engineers to configure motor speed, acceleration and deceleration for different machine loads. The 25A-D010N104 uses a Frame B housing with IP20 open-type protection. The N104 configuration does not contain an integral EMC filter. Cabinet cooling, branch protection, grounding and motor-cable arrangements must be considered during system design.

Technical Specifications

Benefits&Features

Application Areas

Conveyor and Material-Handling Systems--The 25A-D010N104 can control conveyors used for product transfer, accumulation, sorting and loading. Configurable acceleration and deceleration help reduce belt slip and mechanical shock when moving heavier loads.

Pumps and Ventilation Equipment--The drive can regulate industrial pumps, cooling fans, extraction systems and ventilation equipment. Adjusting motor speed to actual process demand may improve flow control and reduce unnecessary energy consumption.

Mixers and Agitators--It is suitable for mixers, agitators and dosing equipment powered by motors up to 4 kW. Sensorless vector control can provide improved torque performance when the process must operate across different speed ranges.

Packaging and Processing Machinery--The drive can operate feeders, packaging mechanisms, compact processing machines and production-line auxiliaries. Its programmable inputs allow speed commands and operating sequences to be coordinated with other machine functions.

Frequently Asked Questions

Q1. What motor size is suitable for 25A-D010N104?
The drive is rated for a 4 kW or 5 Hp three-phase induction motor. The motor nameplate current should not exceed the drive’s 10.5 A rated output, and the required starting torque must remain within the permitted duty rating.

Q2. How does 25A-D010N104 differ from 25A-D6P0N104?
The 25A-D010N104 is rated at 4 kW, 5 Hp and 10.5 A and uses a Frame B housing. The 25A-D6P0N104 is rated at 2.2 kW, 3 Hp and 6.0 A and uses a smaller Frame A housing. Their input-current, heat-dissipation and cabinet-space requirements are different.

Q3. Does the N104 configuration contain an EMC filter?
No. This configuration does not include an integral EMC filter. If filtering is required, engineers should select an appropriate external filter and review the motor-cable length, grounding and cabinet layout.
