Marca :
YokogawaNúmero de parte :
NFDV161-P50Peso :
0.3 kgDimensión :
116.5 mm*8.9 mm*130 mmPaís de origen :
JapenCódigo hs :
8537101190Descripción :

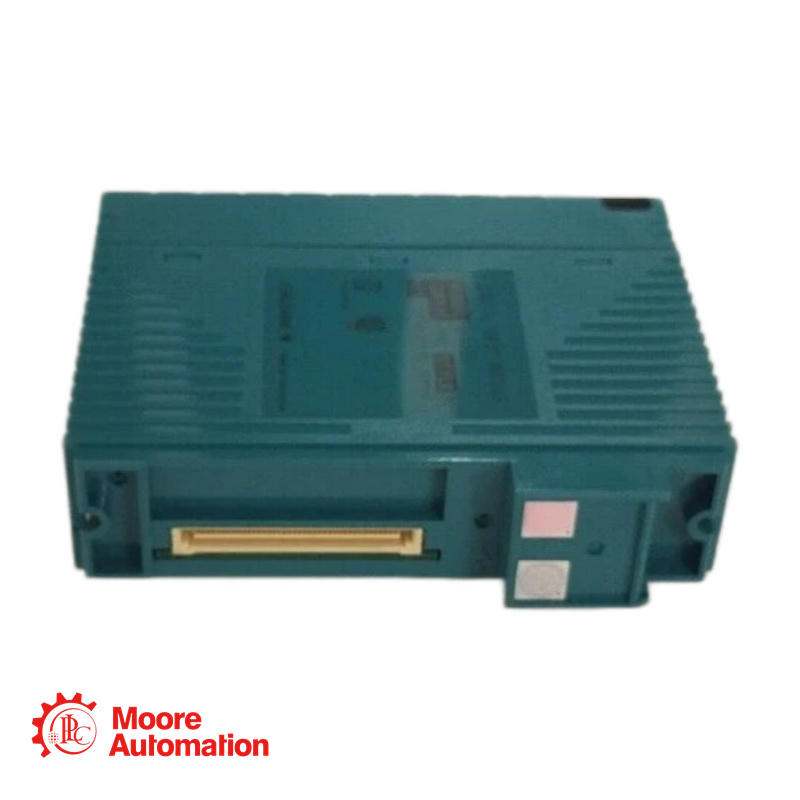

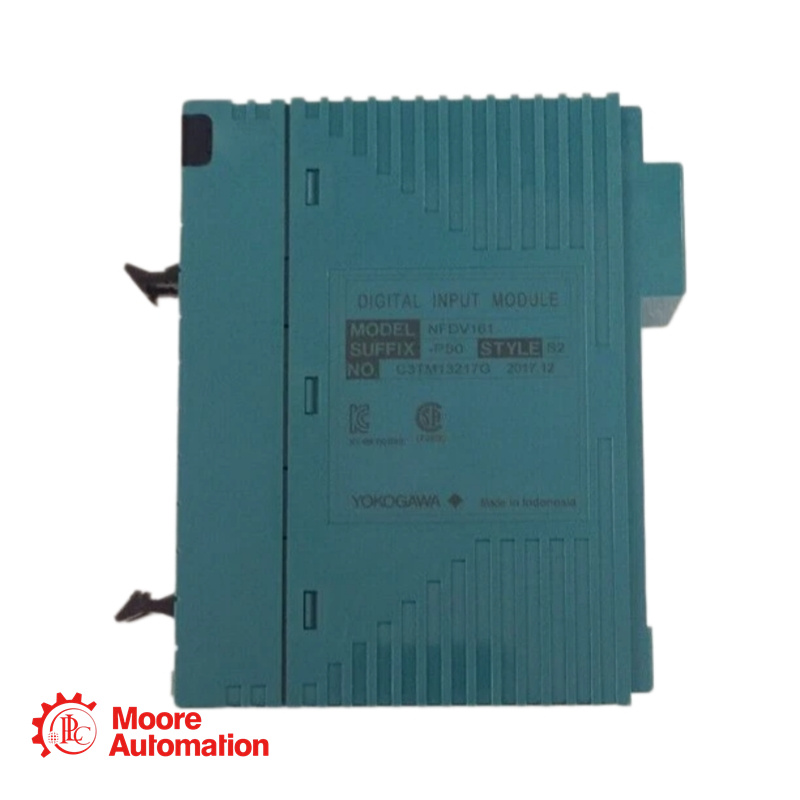

Digital Input Module
Contact Our Manager Frida to Get Price:
Phone/Whatsapp: +86 15359408275
Email: sales5@mooreplc.com
Material number:
NFDV161-P50
Description:
Digital Input Module for FCN autonomous controller
64-channel, 24 V DC, Isolated
General-purpose type with no explosion protection
Basic type (no ISA Standard G3 option)
The NFDV161 is a digital input module that receives 64 channels of 24 V DC ON/OFF signals from field devices. It provides status detection for each channel and includes a push button edge counting function for channels 1 to 32. The module is designed for installation in STARDOM FCN autonomous controller systems.
Technical Data:
Number of input channels:64
Rated input voltage:24 V DC
Input ON voltage:20 to 26.4 V DC
Input OFF voltage:5.0 V DC or less
Input current (at rated input voltage):2.5 mA ±20% / channel
Instantaneous allowable maximum input voltage:30.0 V DC
Withstanding voltage:Between input signal and system: 2000 V AC for 1 minute (*2)
Functions:Status input: ON/OFF status detection; Push button input: edge counting (channels 1 to 32 only)
Input response time:8 ms or less (for status input)
Minimum ON detection time:20 ms (for push button input)
Maximum ON/OFF cycle:25 Hz (for push button input)
Maximum current consumption:550 mA (5 V DC)
Accessories:
NFDV151:Digital Input Module (32-channel, 24 V DC, Isolated)
NFDV532:Pulse Width Output Module (4-channel)
NFDV551:Digital Output Module (32-channel, 24 V DC, Isolated)
NFDV561:Digital Output Module (64-channel, 24 V DC, Isolated)
NFDR541:Relay Output Module (16-channel)
NFTBSS-00:Pressure Clamp Terminal Block for Digital
NFTBSS-10:Pressure Clamp Terminal Block for Digital (surge absorber)
Suffix Code Configuration:
NFDV161:Digital Input Module (64-channel, 24V DC, Isolated)
-P:With function for counting the push button edge
5:General-purpose type with no explosion protection
0:Basic type
