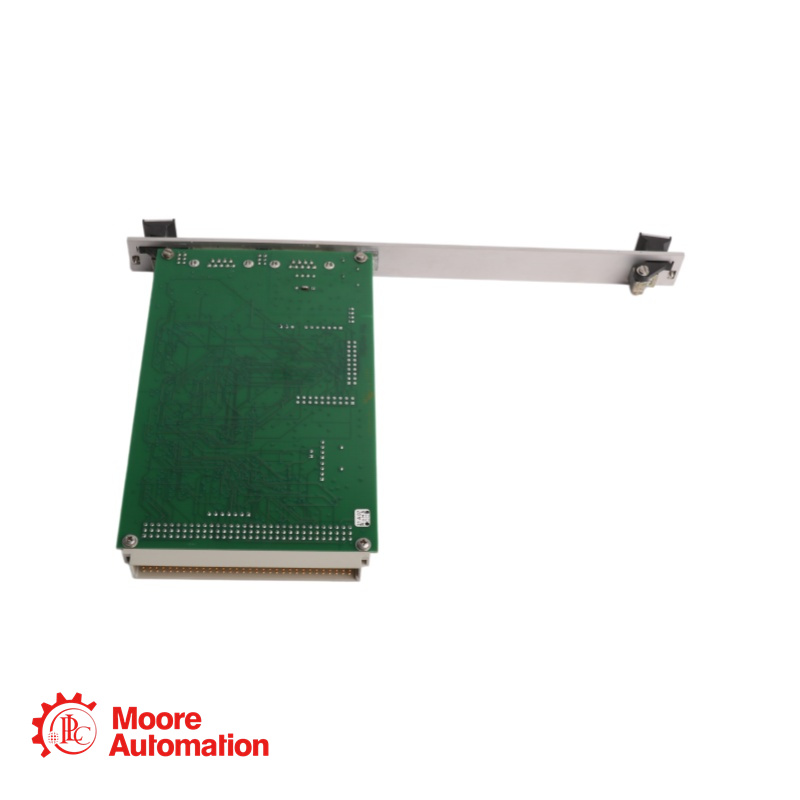

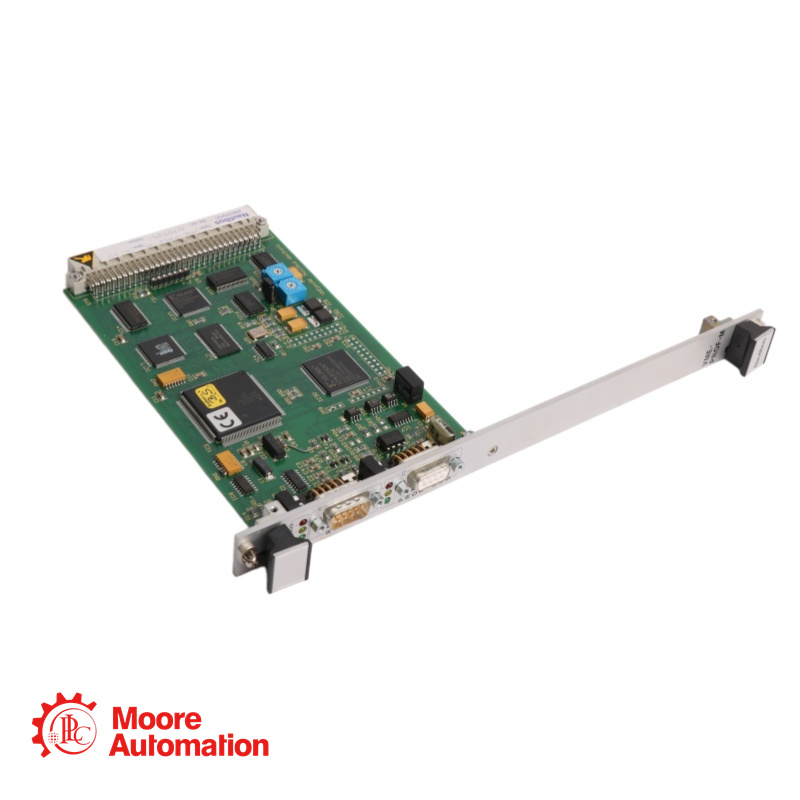

The VME-PROF-M is a Profibus DP-Master module designed for VMEbus systems. It enables cost-effective integration of Profibus I/O modules into VMEbus architectures, replacing expensive VMEbus I/O boards.
Marca :
NautibusNúmero de parte :
VME-PROF-MPeso :
0.15 kgDimensión :
19.1x19.1x6.5cmPaís de origen :
GermanyCódigo hs :
8537101190Descripción :
Profibus DP Master Module
|
Speak To Us: |
Phone/Whatsapp/Wechat: |
|
Email: |
|
|
Address: |
|
|
VME-PROF-M |
Descrption: The VME-PROF-M is a Profibus DP-Master module designed for VMEbus systems. It enables cost-effective integration of Profibus I/O modules into VMEbus architectures, replacing expensive VMEbus I/O boards. The module handles all Profibus communication independently, reducing the software load on the main VMEbus CPU.
Specification:
Protocol:PROFIBUS DP-Master 1 (EN 50170), supports DP-V0 and DP-V2 (time synchronous) Features:
The module contains its own 32-bit processor and firmware, managing the Profibus cycle independently after configuration. |
VME-PROF-M
Q1: How do I configure the VME-PROF-M?
A:Configuration is done using the DPKonfig software running on a Windows PC. The PC connects to the module's front panel RS-232 (X1) port using a null-modem cable. You must have the GSD files for all your Profibus slave devices. The configuration, including baud rate, slave parameters, and I/O mapping, is then downloaded to the module and can be saved to its EEPROM.
Q2: What is the purpose of the hex switches (S1 and S2) on the VME-PROF-M module?
A: The two hex switches (S2 for MSB A23-A20, S1 for LSB A19-A16) set the VMEbus base address of the module. For example, to set the base address to 0x85000, you would set S2 to '8' and S1 to '5'.
Q3: Can the VME-PROF-M operate without the main VMEbus CPU loading software each time?
A: Yes. Once the configuration has been saved to the module's EEPROM (using the "Burn" command in the DPKonfig software), the VME-PROF-M can start the Profibus system automatically after a reset. The main CPU only needs to enable the module by writing 0x08 to the control register.
