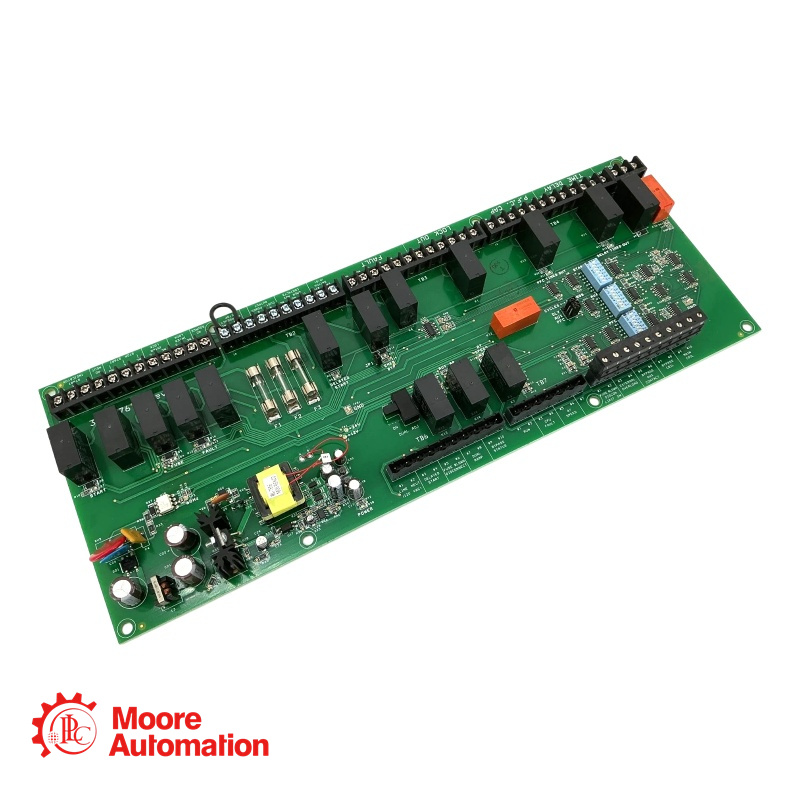

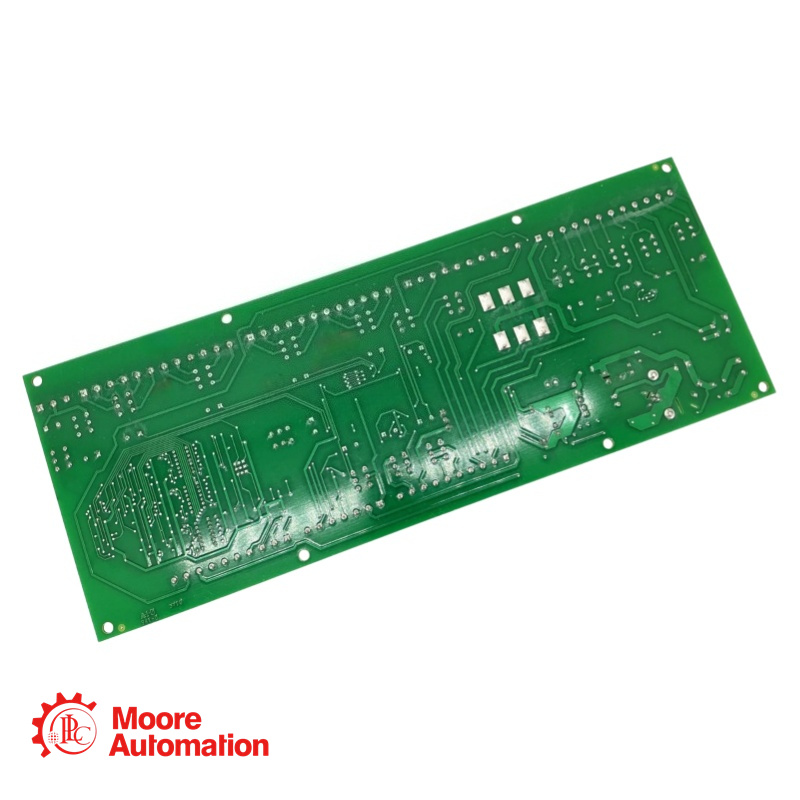

Motortronics MVC4-TCB 36-0576 Control Board

Contact Here!

Sales Manager Frida ★★★★★

Description

• The MVC4-TCB Control Board is a critical interface module within the Motortronics MVC4 soft starter system. It serves as the central connection point between the main power electronics, CPU board, and external control wiring.
• This MVC4-TCB 36-0576 board manages control signals for motor starting, stopping, and protection logic. It integrates auxiliary relay outputs, time-delay circuits, and interlock inputs, enabling safe and coordinated motor operation.


Specification

●Product Type: Terminal & Control Board (TCB)
●Model: MVC4-TCB
●Part Number: 36-0576
●System Compatibility: Motortronics MVC4 Medium Voltage Soft Starter
●Control Voltage: 120 VAC control circuit
●Function: Control interface, signal routing, and interlock management
●I/O Interface: Digital inputs/outputs, auxiliary relay contacts
●Communication: Serial interface to keypad/operator panel
●Control Mode: Supports 2-wire and 3-wire control

Application

The MVC4-TCB 36-0576 is widely used in:

Power Generation Plants

Oil & Gas Facilities

Mining and Heavy Industry

Water Treatment & Pumping Stations

Industrial Manufacturing (fans, compressors, conveyors)

FAQ for MVC4-TCB 36-0576

• Q1: What is the main function of the MVC4-TCB board?

A: It provides the interface between external control signals and the internal soft starter system, managing I/O, relays, and interlocks.

• Q2: What system is this board used in?

A: It is used in Motortronics MVC4 medium-voltage soft starter systems.

• Q3: What voltage does the control board use?

A: It typically operates with a 120 VAC control circuit.

• Q4: Does it support motor protection features?

A: Indirectly yes — it handles interlocks, control logic, and signals used by the system’s protection functions.
