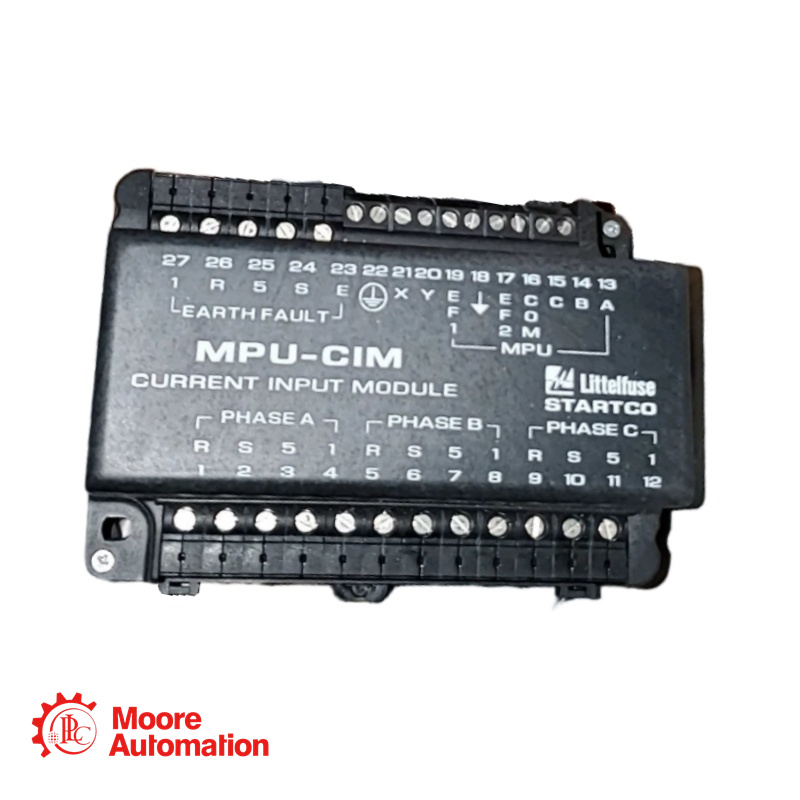

The Littelfuse MPU-CIM-00-00 Current Input Module is a dedicated interface module designed to connect the MPU-32 Series Motor Protection Relay to external current transformers (CTs) for three-phase motor current monitoring and protectin.
Marca :
LittelfuseNúmero de parte :
MPU-CIM-00-00Peso :
0.8 kgDimensión :
86.36 mm*111.76 mm*55.88 mmPaís de origen :
USACódigo hs :
8537101190Descripción :
Current Input ModuleGive you Best Offer - Sales Manager: Frida
Phone: +86 15359408275
Email: sales5@mooreplc.com
Product Parameters
Protective Functions (IEEE Device Numbers): Overload (49, 51), Phase reverse (current) (46), Overcurrent (50, 51), Jam, Ground fault (50G/N, 51G/N), PTC overtemperature (49), RTD temperature (38, 49), Unbalance (current) (46), Starts per hour (66), Differential (87), Phase loss (current) (46), Undercurrent (37)
Input Voltage: 65-265 V AC, 25 VA; 80-275 V DC, 25 W
Power-Up Time: 800 ms at 120 V AC
Ride-Through Time: 100 ms minimum
24-VDC Source: 100 mA maximum
Frequency: 50, 60 Hz or ASD
Communications: TIA-232 (standard); TIA-485, DeviceNet™, Ethernet (optional)
Analog Output: 4-20 mA, programmable
Product Description

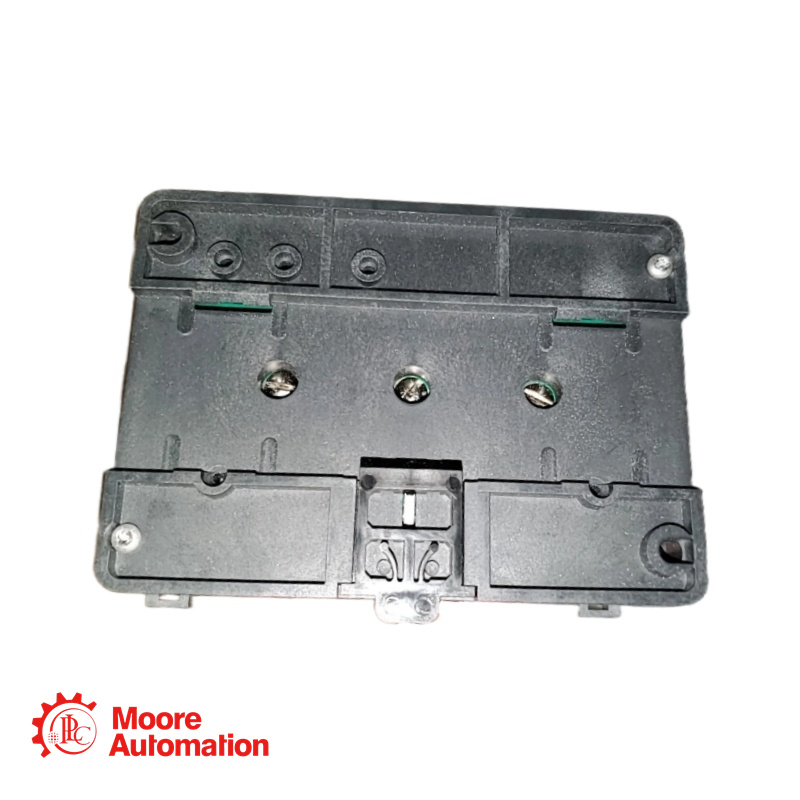

The Littelfuse MPU-CIM-00-00 Current Input Module serves as an essential accessory when the MPU-32 relay itself does not include onboard current transformer inputs, such as in the base model MPU-32-00-00 series. The module accepts standard 5 A or 1 A secondary CT signals, as well as inputs from sensitive current transformers, ensuring compatibility with a wide range of existing or new CT installations. It is engineered for easy integration into motor control centers, panelboards, or switchgear, offering both surface-mount and DIN-rail mounting flexibility. Standard terminals are of the wire-clamping type for secure connections; an optional version with ring-tongue terminals (MPUCTI) is available for applications requiring lug-type terminations.
|
