Marca :
HoneywellNúmero de parte :
CC-PUIO31Peso :
0.32kgDimensión :
6x18.8x14.5cmPaís de origen :
USACódigo hs :
8537101190Descripción :

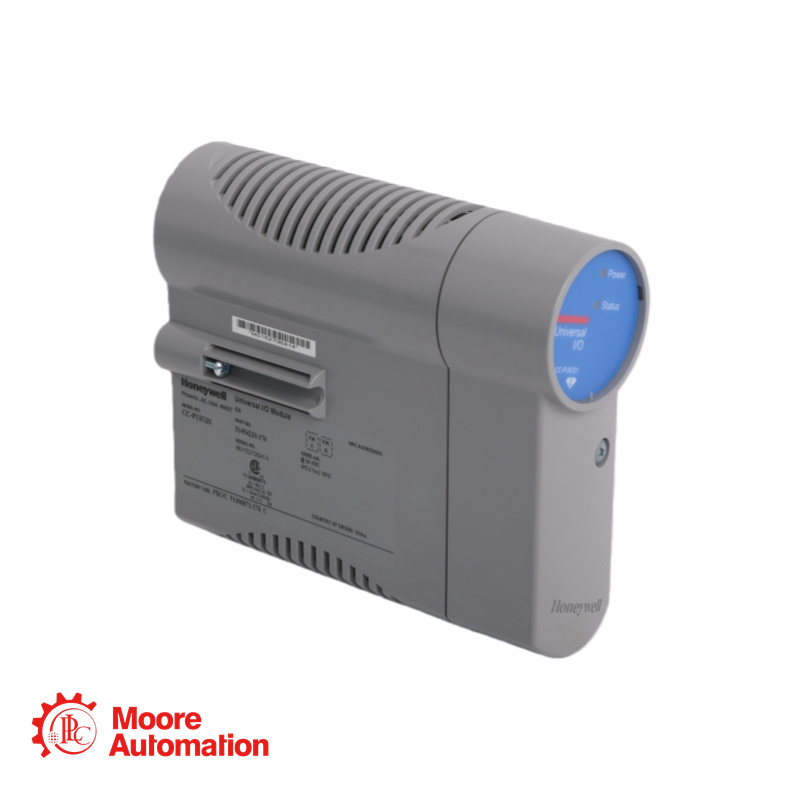

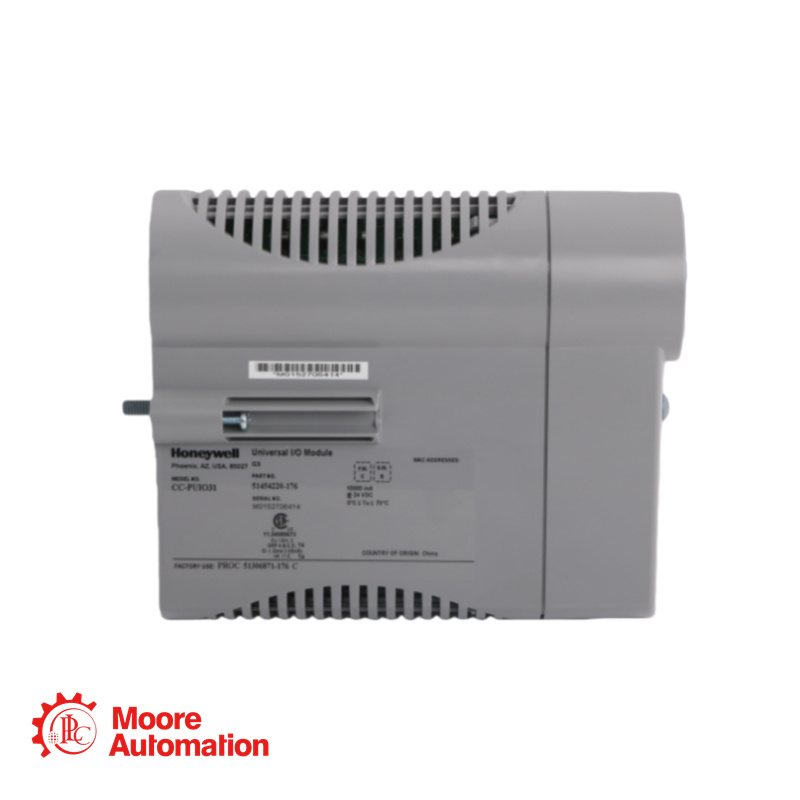

Universal I/O Module
Product Datasheet
Part number: CC-PUI031
Number of channels: 32
Configurable channel types per user selection:
Analog Input (4‑20 mA / 0‑20 mA)
Analog Output (4‑20 mA) with HART 7 support
Digital Input (24 VDC) with optional Sequence of Events (SOE, 1 ms resolution) and Open Wire Detection (OWD)
Digital Output (24 VDC sourcing) with short‑circuit protection
Pulse Input (any 4 channels, 0‑15 kHz)
Scan rate:
Analog I/O: 10 ms
Digital I/O (SOE mode): 1 ms timestamp resolution, PV scan 20 ms (normal) or 5 ms (fast)
Analog input specifications:
Input range: 0‑20 mA or 4‑20 mA
A/D resolution: 16 bit
Accuracy: 0.1% of FS (23.5±2°C); 0.25% of FS (‑40 to +70°C)
Input impedance: 250 Ω
Common‑mode voltage: +33 VDC to ‑1 VDC (non‑damaging)
Normal‑mode rejection: 18 dB @ 50 Hz, 20 dB @ 60 Hz
Filter: single‑pole, ‑3 dB @ 6 Hz
Short‑circuit current limit: 25 mA
Output range: 4‑20 mA (0 mA, 2.9‑21.1 mA settable)
Resolution: 12 bit
Accuracy: <0.35% of FS at 25°C
Max resistive load: 825 Ω @ 20 mA
Max compliant voltage: 16.5 VDC @ 20 mA
Response time: 80 ms (HART mode), 0.25 ms (non‑HART mode)
Output validation (readback): ±4% of FS
Supply voltage: up to 26 VDC (field power)
ON detection: >3.2 mA (without OWD); 3.1‑7 mA (with OWD)
OFF detection: <2.0 mA
Open‑wire detection (OWD): <0.9 mA
SOE timestamp resolution: 1 ms
Input filter: first‑order low‑pass, 16 Hz
Digital output specifications:
Load current: 1 mA min to 0.5 A max per channel; 9 A max per module
On‑state voltage: 24 V typical @ 0.5 A
Off‑state leakage: <0.1 mA
Short‑circuit response: limits to <1.4 A within 2 μs, to 750 mA within 10 μs; turns off after 10 ms
Pulse input specifications (any 4 channels):
Frequency range: 0‑15 kHz
Minimum pulse width: 25 μs
Operating temperature: ‑40°C to +70°C (module ambient)
