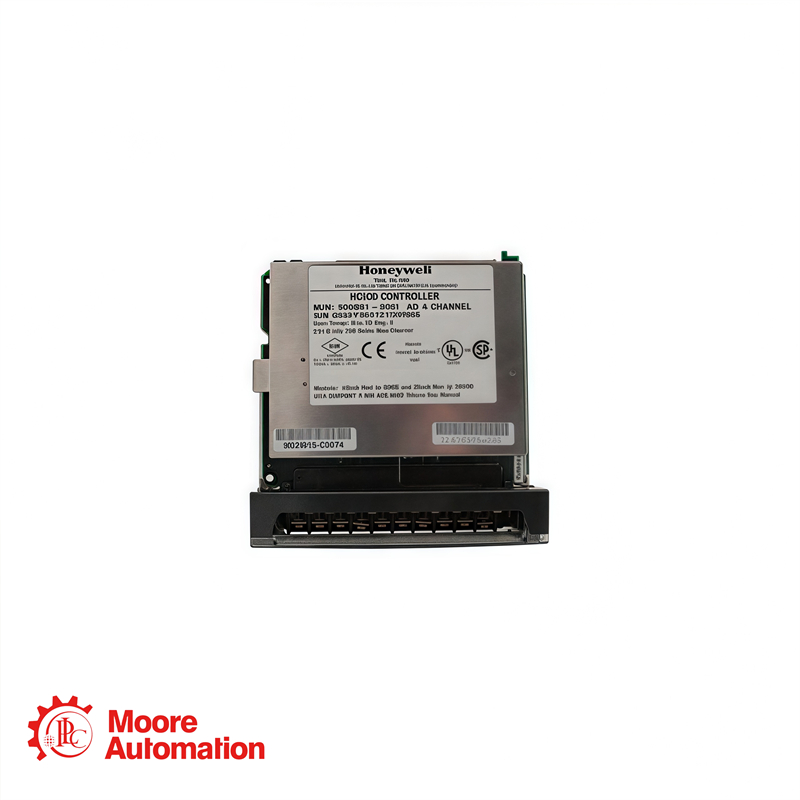

HONEYWELL 900B01-0001 Analog Output Module

Product Discription

Part number:900B01-0001

Manufacturer: Honeywell

Country of orign: USA

Description:Analog Output Module

CONDITION: Brand New Factory Sealed - Original

Availability: 1

Warranty: 12 Months

Shipping: Worldwide by DHL / Fedex / TNT / UPS

Number of channels: 4 (channel-to-channel isolation, channel-to-logic isolation 600 VDC)
Output range: 0-21.8 mA (default 0-20 mA/4-20 mA) or 0-10 V, user-configurable per channel
Load resistance: ≤ 750 Ω (current mode); ≥ 2 kΩ (voltage mode)
Accuracy: ±0.1% full scale (25°C)
Resolution: 12 bits (0.025%)
Update/scan cycle: ≤ 500 ms, synchronized with control execution
Fail-safe: User-configurable safety threshold, automatic switchover upon communication loss
Current readback: 3.5 mA minimum detection for wire break/short-circuit diagnostics
Power supply: 24 VDC (18-36 V), module maximum 350 mA
Isolation: 500 VDC channel-to-channel; 600 VDC channel-to-logic
Operating temperature: -25 to +70°C (T4, -40 to +70°C) Storage temperature: -40 to +85°C
